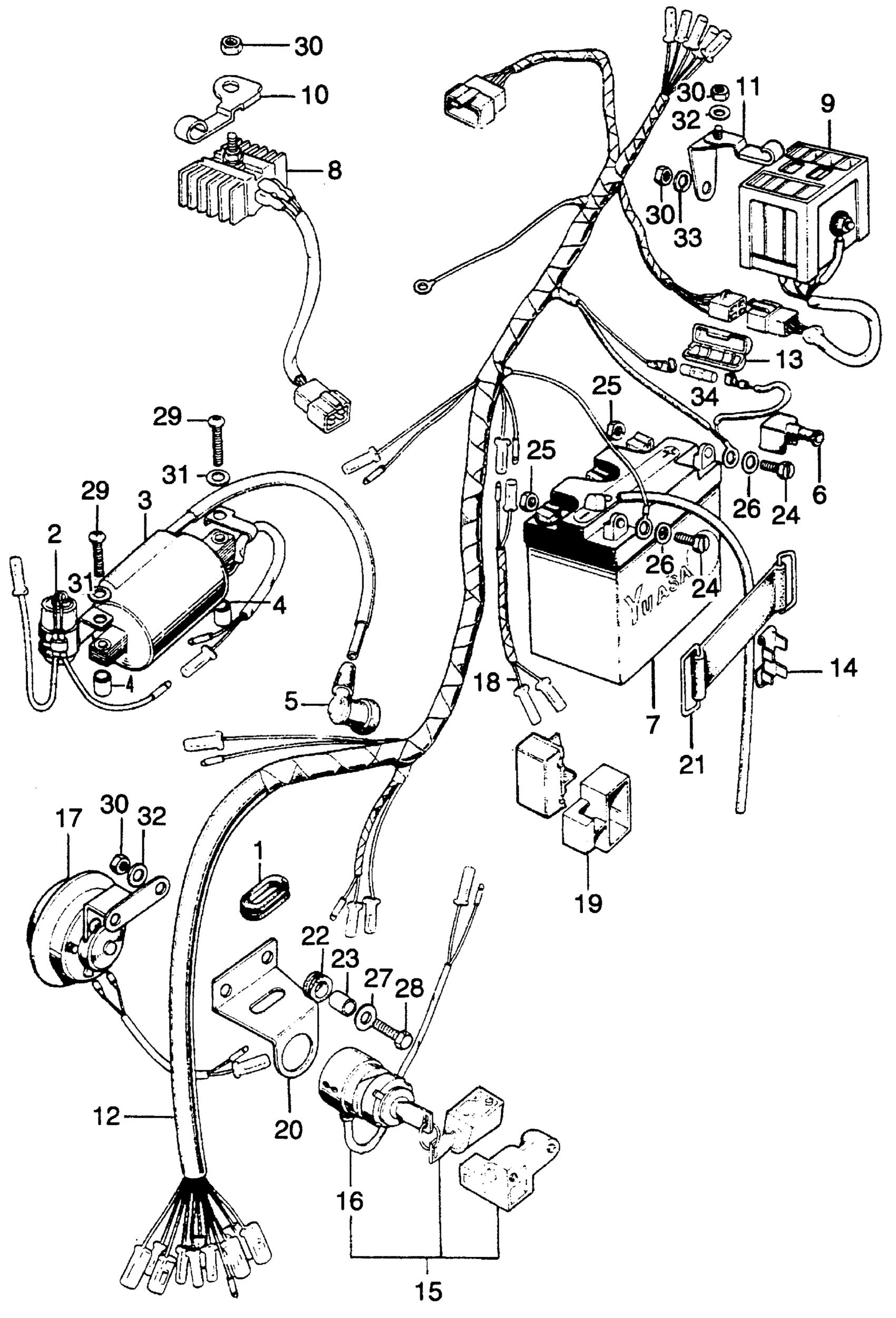

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

CONDENSER ASSY.

30250-330-003

Unavailable

3

COIL, IGNITION This part replaces 30400-330-003.

30530-330-003

Unavailable

3

COIL, IGNITION

30530-330-003

Unavailable

4

COLLAR, IGNITION COIL SETTING This part replaces 30507-107-000.

30507-441-000

$2.92

4

COLLAR, IGNITION COIL SETTING

30507-441-000

$2.92

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

COVER, BATTERY TERMINAL (NOT AVAILABLE)

31468-107-000

Unavailable

7

BATTERY (6N6-3B) This part replaces 31500-110-671.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 31500-329-671.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

7

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

8

RECTIFIER ASSY.

31700-102-731

Unavailable

10

CLIP, BATTERY DRAIN PIPE

31706-364-670

Unavailable

12

WIRE HARNESS (NOT AVAILABLE)

32100-359-700

Unavailable

13

CASE, FUSE CONNECTOR

32111-230-000

$4.28

14

HOLDER, FUSE (NOT AVAILABLE)

32113-107-000

Unavailable

15

SWITCH KIT, MAIN (NOT AVAILABLE)

35030-111-971

Unavailable

16

SWITCH, IGNITION (NOT AVAILABLE)

35010-111-671

Unavailable

16

SWITCH ASSY., COMBINATION This part replaces 35100-111-671.

35100-324-761

Unavailable

16

SWITCH ASSY., COMBINATION This part replaces 35100-324-760.

35100-324-761

Unavailable

16

SWITCH ASSY., COMBINATION

35100-324-761

Unavailable

17

HORN ASSY. (NOT AVAILABLE)

38100-110-671

Unavailable

18

SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)

38303-107-670

Unavailable

19

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

20

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-331-000

Unavailable

21

BAND, BATTERY This part replaces 95012-15000.

95012-15001

$6.31

21

BAND, BATTERY

95012-15001

$6.31

22

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

23

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

24

BOLT, BATTERY TERMINAL (NOT AVAILABLE)

90122-107-000

Unavailable

25

NUT, BATTERY TERMINAL

90306-107-000

Unavailable

26

WASHER, BATTERY TERMINAL

90501-107-000

$1.20

27

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

28

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

28

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

29

SCREW, PAN (5X28) (NOT AVAILABLE)

93500-05028-4J

Unavailable

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

WASHER, PLAIN (5MM)

94101-05000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

FUSE A (15A)

98200-11500

$1.49
