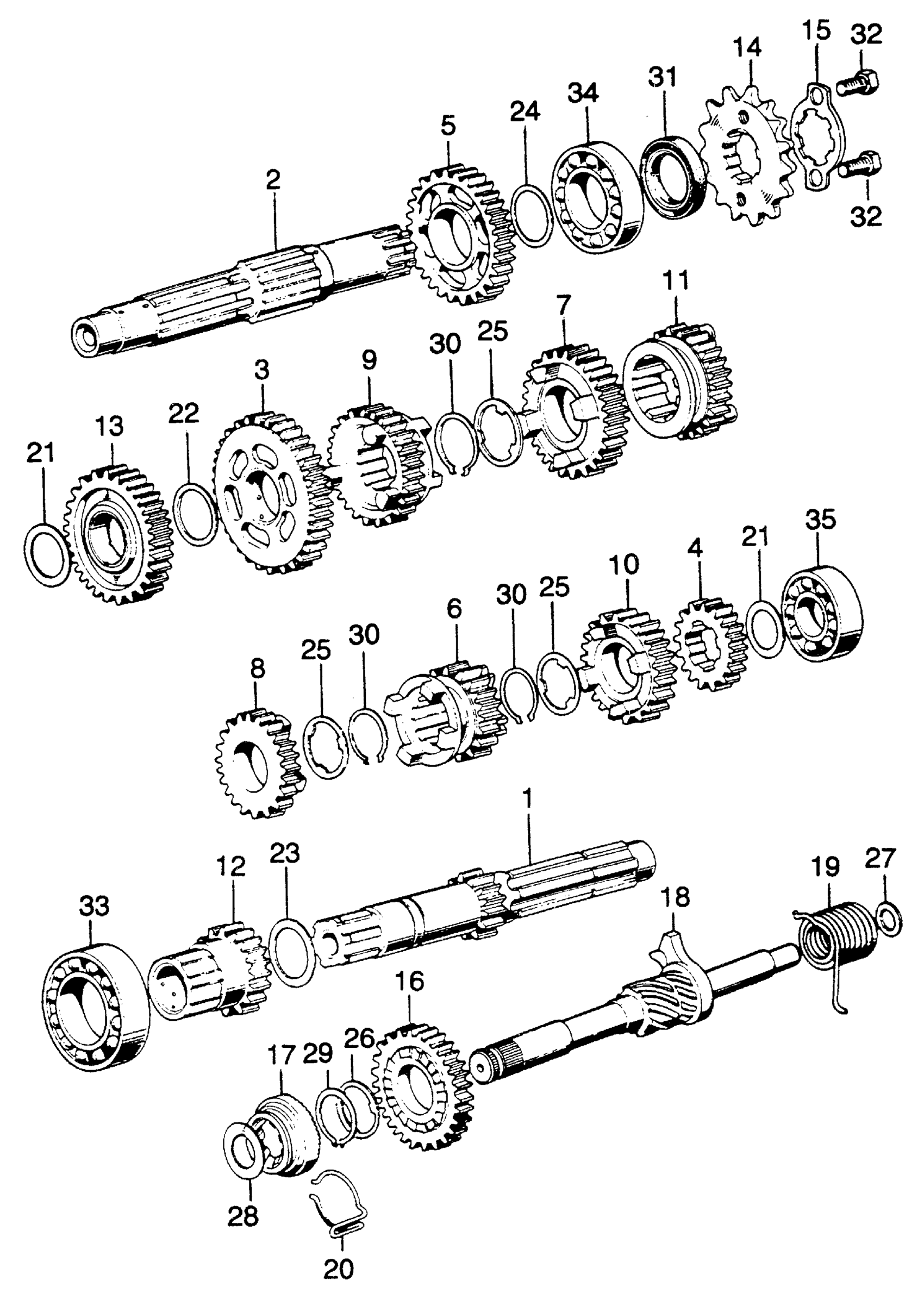

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (14T) (NOT AVAILABLE)

23211-324-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-000.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T)

23421-324-000

Unavailable

4

GEAR, COUNTERSHAFT SECOND (18T)

23441-107-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T)

23451-107-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T)

23461-107-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-107-000

Unavailable

8

GEAR, MAINSHAFT FIFTH (24T) This part replaces 23481-107-000.

23501-KC1-000

Unavailable

8

GEAR, MAINSHAFT FIFTH (24T)

23501-KC1-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23491-107-000

Unavailable

10

GEAR, MAINSHAFT TOP (26T)

23501-107-000

Unavailable

11

GEAR, COUNTERSHAFT TOP (24T)

23511-107-000

$84.97

12

GEAR, STARTER (19T) This part replaces 23520-107-000.

23520-383-000

Unavailable

12

GEAR, STARTER (19T)

23520-383-000

Unavailable

13

GEAR, IDLE STARTER (29T) (NOT AVAILABLE) This part replaces 23530-107-000.

23530-383-000

Unavailable

13

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

14

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

14

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

15

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

15

PLATE B, FIXING

95014-92100

$1.49

16

PINION, KICK STARTER (30T)

28211-107-000

Unavailable

16

PINION, KICK STARTER (29T)

28211-383-000

Unavailable

17

RATCHET, KICK STARTER DRIVE

28221-107-010

Unavailable

18

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-107-020.

28250-365-000

Unavailable

18

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-355-000.

28250-365-000

Unavailable

18

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-365-000

Unavailable

19

SPRING, KICK STARTER

28261-107-000

Unavailable

20

SPRING, STARTER PINION FRICTION (NOT AVAILABLE)

28271-107-000

Unavailable

21

WASHER, THRUST (15MM)

90451-107-000

$1.49

22

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

23

WASHER A, THRUST (20MM)

90453-107-000

$2.25

24

WASHER, THRUST (20MM)

90454-107-000

$1.80

25

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

26

WASHER, THRUST (25MM) (NOT AVAILABLE)

90458-107-000

Unavailable

27

WASHER, THRUST (12MM)

90459-107-000

$1.49

28

WASHER, THRUST (16MM)

90462-107-000

$2.11

29

CIRCLIP (25MM)

90601-107-000

$3.74

30

SET-RING (20MM)

90605-200-000

$2.92

31

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

31

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

31

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

31

OIL SEAL (20X34X7)

91201-030-015

Unavailable

31

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

31

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

31

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

32

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

33

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

33

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

34

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

35

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

35

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
