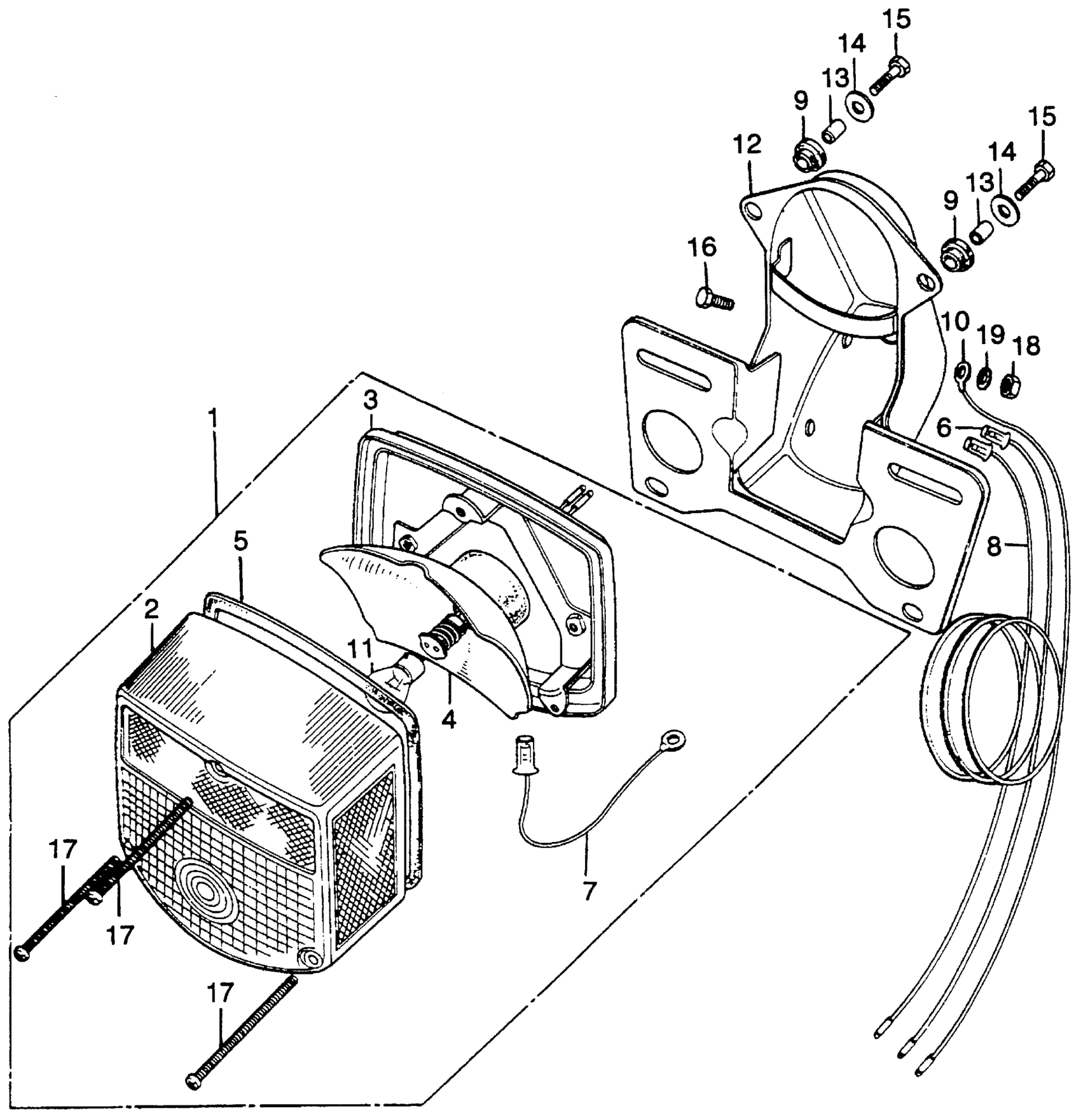

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-329-671

Unavailable

2

LENS, TAILLIGHT

33702-329-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

6

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-107-670

Unavailable

7

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

8

SUB-WIRE, STOP LIGHT (GREEN/YELLOW) (NOT AVAILABLE)

33712-107-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

WIRE, RR. FENDER GROUND (NOT AVAILABLE)

33720-107-000

Unavailable

11

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

12

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84700-324-670B

Unavailable

13

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$3.01

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

SCREW, PAN (4X55)

93500-04055-0B

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
