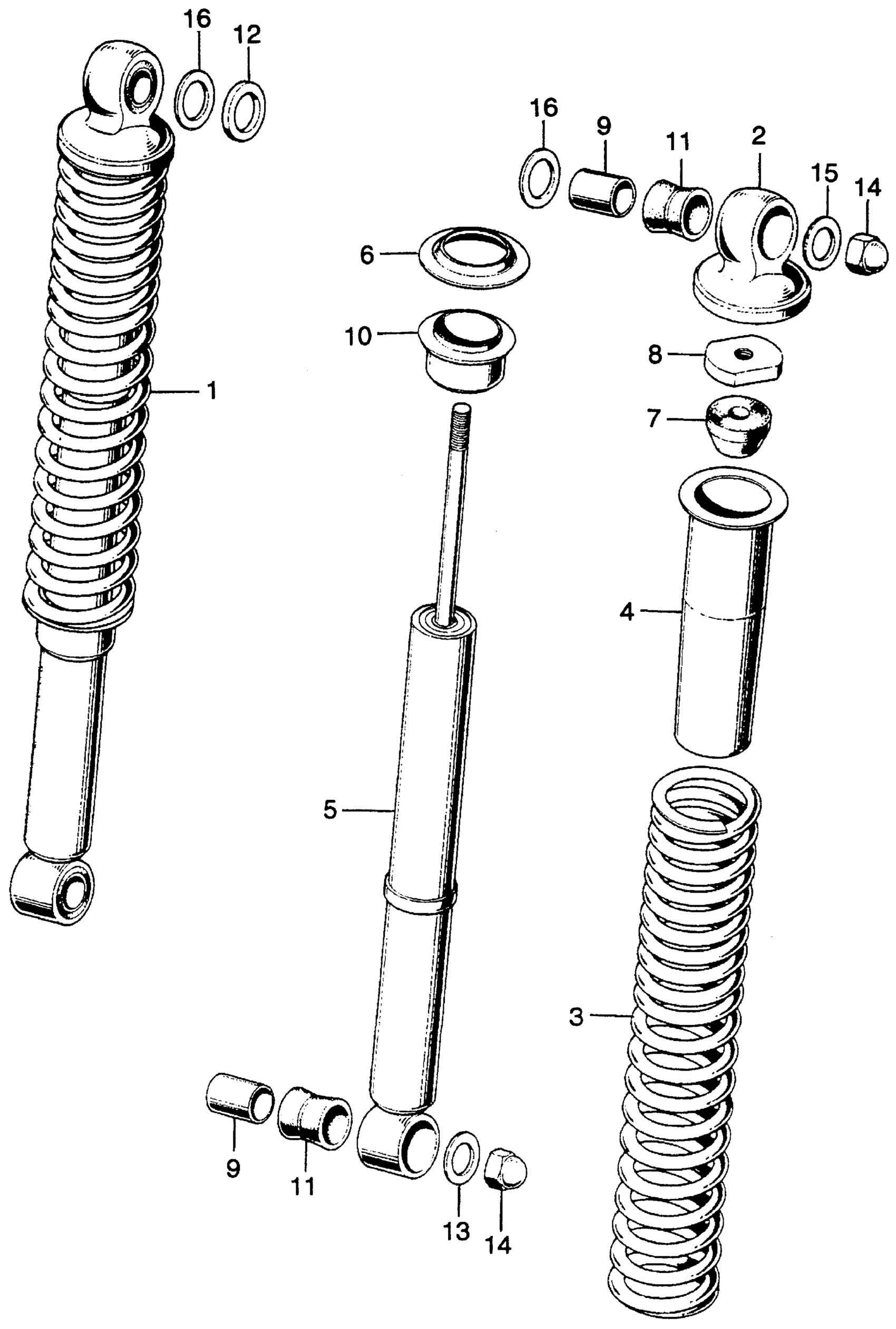

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-108-761

Unavailable

METAL, SHOCK ABSORBER (UPPER)

52403-028-000

Unavailable

SPRING, RR. SHOCK ABSORBER

52407-108-761

Unavailable

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52409-108-761

Unavailable

DAMPER ASSY., RR. This part replaces 52430-324-003.

52430-324-691

Unavailable

DAMPER ASSY., RR. This part replaces 52430-324-013.

52430-324-691

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-108-761

Unavailable

RUBBER, RR. SHOCK ABSORBER STOPPER

52475-230-010

Unavailable

NUT, RR. SHOCK ABSORBER LOCKING (NOT AVAILABLE)

52482-056-670

Unavailable

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

$4.28

SEAT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52486-303-000

Unavailable

BUSH, SHOCK ABSORBER RUBBER (LOWER)

52489-056-000

$2.80

WASHER (12.2X26) (NOT AVAILABLE)

90526-035-000

Unavailable

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

NUT, CAP (10MM)

94021-10020-0S

$2.08

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, PLAIN (12MM)

94101-12000

$1.49
