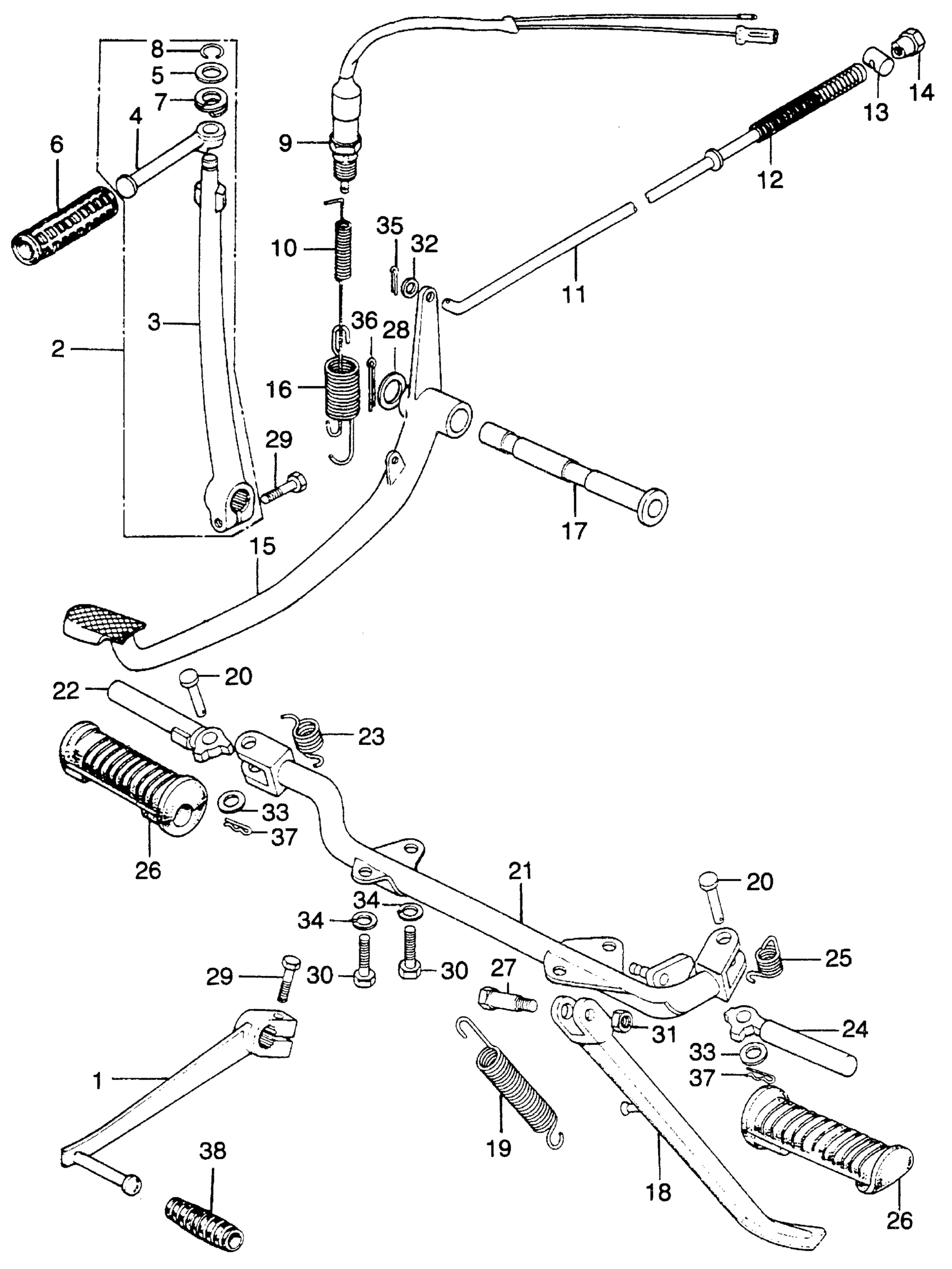

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 MAIN STAND + STEP BAR + CHANGE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT This part replaces 24700-107-700.

24701-107-700

Unavailable

1

PEDAL, GEARSHIFT

24701-107-700

Unavailable

2

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-331-671

Unavailable

3

ARM, KICK STARTER

28301-331-671

Unavailable

4

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

4

PEDAL, KICK STARTER

28302-126-770

Unavailable

5

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

6

RUBBER A, KICK STARTER

95011-51000

$3.69

7

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

8

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

9

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

10

SPRING, STOP SWITCH

35357-107-010

Unavailable

11

ROD, RR. BRAKE This part replaces 43450-041-000.

43451-397-000

$7.34

11

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

11

ROD, RR. BRAKE

43451-397-000

$7.34

12

SPRING A, BRAKE ROD

95014-73100

$1.49

13

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

13

JOINT A, BRAKE ARM

95015-31001

$1.53

14

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

15

PEDAL, BRAKE

46500-108-000

Unavailable

16

SPRING, BRAKE PEDAL

46514-107-010

$5.99

17

PIPE, MAIN STAND PIVOT This part replaces 50526-028-010.

50526-383-670

Unavailable

17

PIPE, MAIN STAND PIVOT This part replaces 50526-331-000.

50526-383-670

Unavailable

17

PIPE, MAIN STAND PIVOT

50526-383-670

Unavailable

18

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-107-700B

Unavailable

19

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

19

SPRING A, SIDE STAND

95014-72102

$2.84

20

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

20

PIN, STEP BAR JOINT

50603-033-010

$3.30

21

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-108-670B

Unavailable

22

ARM, R. STEP

50616-056-670

Unavailable

23

SPRING, R. STEP RETURN

50617-056-670

Unavailable

24

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

Unavailable

25

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

26

RUBBER, STEP

50661-110-000

$10.76

27

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

28

WASHER (17X22)

90521-028-000

$1.89

29

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

29

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

30

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

30

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

31

NUT, HEX. (10MM)

94002-10000-0S

$4.06

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

WASHER, SPRING (8MM)

94111-08000

$1.49

35

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

35

PIN, COTTER (1.6X25)

94201-16250

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

36

PIN, COTTER (3.0X45)

94201-30450

$1.49

37

PIN, LOCK (8MM)

94251-08000

$1.49

38

RUBBER, SHIFT PEDAL

95011-40000

$1.49
