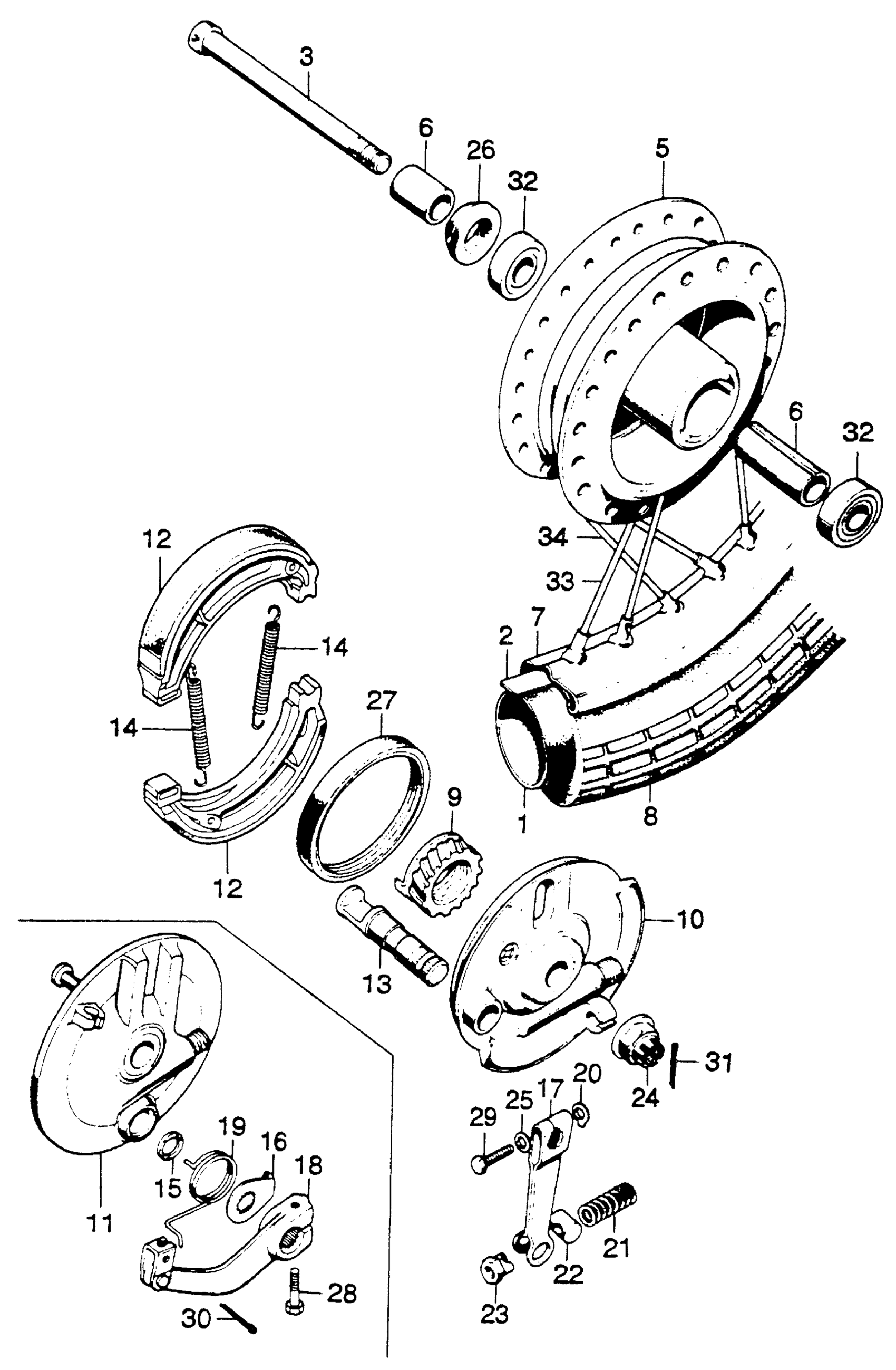

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$24.89

1

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-810.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

1

TUBE, TIRE (2.50/2.75-18) (NITTO)

42712-304-006

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

2

FLAP, TIRE (18) (NITTO)

42713-304-006

Unavailable

3

AXLE, FR. WHEEL

44301-107-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-229-000

$6.58

5

HUB, FR. WHEEL | Use up to Frame SN 1120001 This part replaces 44601-107-770.

44601-397-000

Unavailable

5

HUB, FR. WHEEL | Use up to Frame SN 1120001

44601-397-000

Unavailable

5

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1120002

44601-116-670

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-030-000

Unavailable

7

RIM, FR. WHEEL This part replaces 44701-028-004.

44701-028-014

Unavailable

8

TIRE, RR. (2.75-18) (BS) (NOT AVAILABLE)

44711-305-003

Unavailable

8

TIRE, RR. (2.75-18) (BS) (NOT AVAILABLE) This part replaces 44711-305-013.

44711-305-003

Unavailable

9

GEAR, SPEEDOMETER | Use up to Frame SN 1120001

44804-028-000

Unavailable

9

GEAR, SPEEDOMETER | Use up to Frame SN 1120001 This part replaces 44806-028-000.

44804-028-000

Unavailable

9

GEAR, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1120002

44804-364-671

Unavailable

10

PANEL, FR. BRAKE | Use up to Frame SN 1120001 This part replaces 45010-102-000.

45010-350-000

Unavailable

10

PANEL, FR. BRAKE | Use up to Frame SN 1120001

45010-350-000

Unavailable

11

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1120002

45010-364-670

Unavailable

12

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670) | Use up to Frame SN 1120001

45120-001-010

Unavailable

12

SHOE SET, BRAKE (ASK) | Use from Frame SN 1120002 This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

12

SHOE SET, BRAKE (ASK) | Use from Frame SN 1120002 This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

13

CAM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1120001

45131-030-000

Unavailable

13

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1120002

45131-364-670

Unavailable

14

SPRING, BRAKE SHOE | Use up to Frame SN 1120001

45133-028-000

$2.03

14

SPRING, BRAKE SHOE | Use from Frame SN 1120002

43151-110-000

$2.92

15

DUST SEAL (NOT AVAILABLE) | Use from Frame SN 1120002

45134-121-000

Unavailable

16

INDICATOR, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1120002

45145-364-670

Unavailable

17

ARM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1120001

45410-028-000

Unavailable

18

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1120002 This part replaces 45410-364-671.

45410-116-670

Unavailable

19

SPRING, FR. BRAKE ARM RETURN | Use from Frame SN 1120002

45411-087-820

Unavailable

20

NUT, FR. BRAKE ARM SETTING | Use up to Frame SN 1120001

45436-001-000

$1.80

21

SPRING, FR. BRAKE ARM | Use up to Frame SN 1120001

45437-001-000

$3.50

22

JOINT A, BRAKE ARM | Use up to Frame SN 1120001 This part replaces 95015-31000.

95015-31001

$1.53

22

JOINT A, BRAKE ARM | Use up to Frame SN 1120001

95015-31001

$1.53

23

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1120001

95015-41000

$1.49

24

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

24

NUT, AXLE (12MM)

90305-169-000

$6.28

25

WASHER, RR. BRAKE ARM | Use up to Frame SN 1120001

90525-001-000

$1.95

26

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-000.

90755-229-003

$5.05

26

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

26

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

27

OIL SEAL (47X58X7) | Use up to Frame SN 1120001 This part replaces 91251-030-000.

91251-030-003

Unavailable

27

OIL SEAL (47X58X7) | Use up to Frame SN 1120001

91251-030-003

Unavailable

27

OIL SEAL (47X60X7) | Use from Frame SN 1120002

91251-GK4-003

$9.19

27

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1120002 This part replaces 91251-121-000.

91251-GK4-003

$9.19

28

BOLT, HEX. (6X20) | Use from Frame SN 1120002 This part replaces 92000-06020.

92101-06020-0A

$1.49

28

BOLT, HEX. (6X20) | Use from Frame SN 1120002

92101-06020-0A

$1.49

29

BOLT, HEX. (6X25) | Use up to Frame SN 1120001 This part replaces 92000-06025.

92101-06025-0A

$1.62

29

BOLT, HEX. (6X25) | Use up to Frame SN 1120001

92101-06025-0A

$1.62

30

PIN, COTTER (1.6X25) | Use from Frame SN 1120002 This part replaces 94201-16150.

94201-16250

$1.49

30

PIN, COTTER (1.6X25) | Use from Frame SN 1120002

94201-16250

$1.49

31

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

31

PIN, COTTER (3.0X45)

94201-30450

$1.49

32

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

32

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

33

SPOKE A (12X173.5) This part replaces 97142-21187-10.

97142-21187-F0

$2.07

34

SPOKE A (12X173)

97407-21186-F0

$2.85

34

SPOKE A (12X173) This part replaces 97407-21186-10.

97407-21186-F0

$2.85
