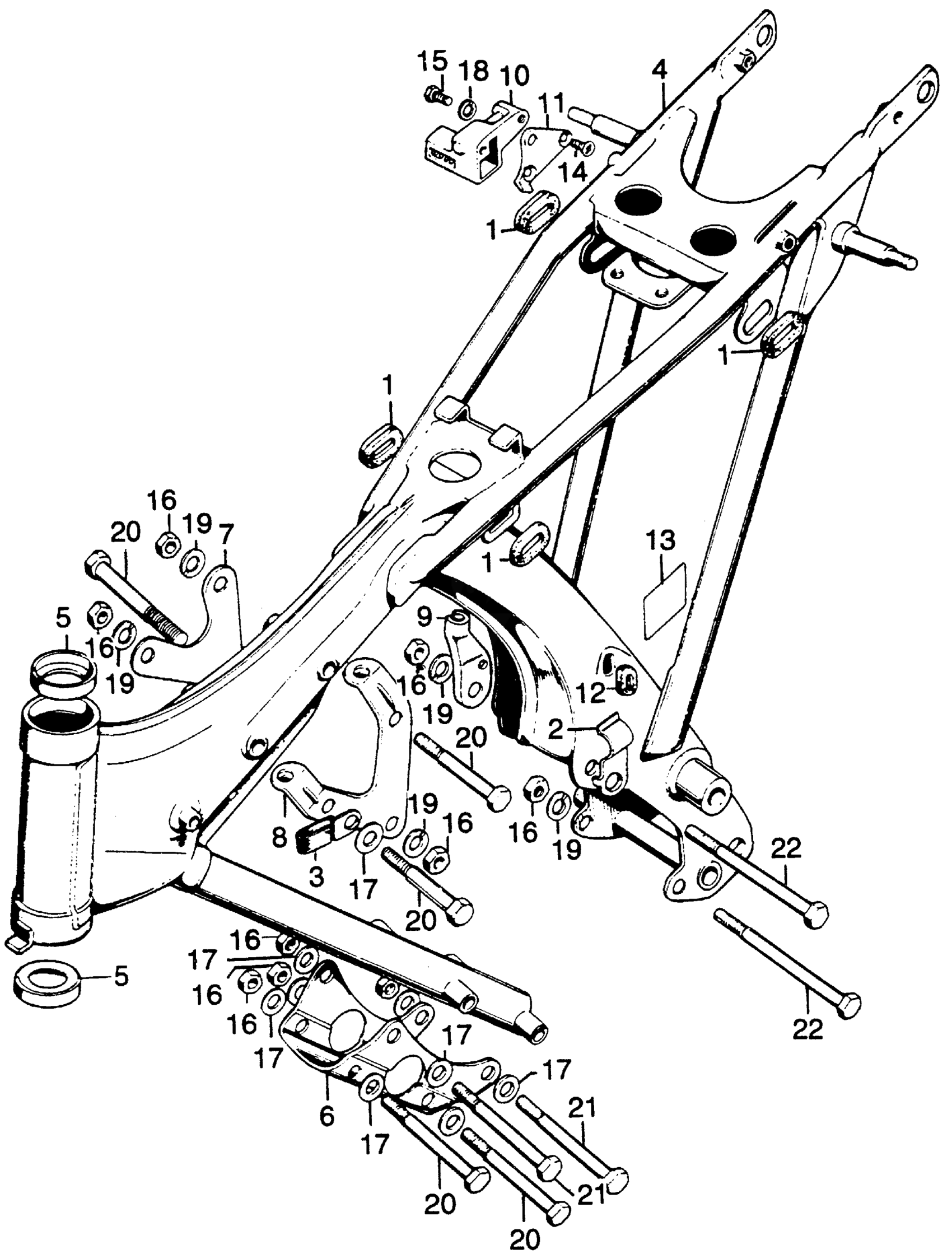

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 FRAME Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.56

1

GROMMET A, AIR CLEANER HOUSING This part replaces 95020-52030.

17247-303-000

$7.56

2

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

3

CLIP, COMBINATION SWITCH WIRE (NOT AVAILABLE)

32908-107-700

Unavailable

4

FRAME *NH1* (BLACK)

50100-107-781B

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.13

5

RACE, STEERING TOP BALL

50301-041-010

$11.13

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.13

6

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-330-000B

Unavailable

7

PLATE, R. ENGINE HANGER (UPPER)

50353-330-000

Unavailable

8

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-330-000

Unavailable

9

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-107-000

Unavailable

10

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$64.04

10

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-110-701.

50710-086-007

$64.04

11

STAY, HELMET HOLDER

50720-108-762

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

13

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-107-781

Unavailable

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

16

NUT, HEX. (8MM)

94030-08000

$0.97

17

WASHER, PLAIN (8MM)

94101-08000

$0.75

18

WASHER, SPRING (6MM)

94111-06000

$0.86

19

WASHER, SPRING (8MM)

94111-08000

$0.90

20

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.36

21

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

22

BOLT, HEX. (8X111)

95300-08111-00

$2.80
