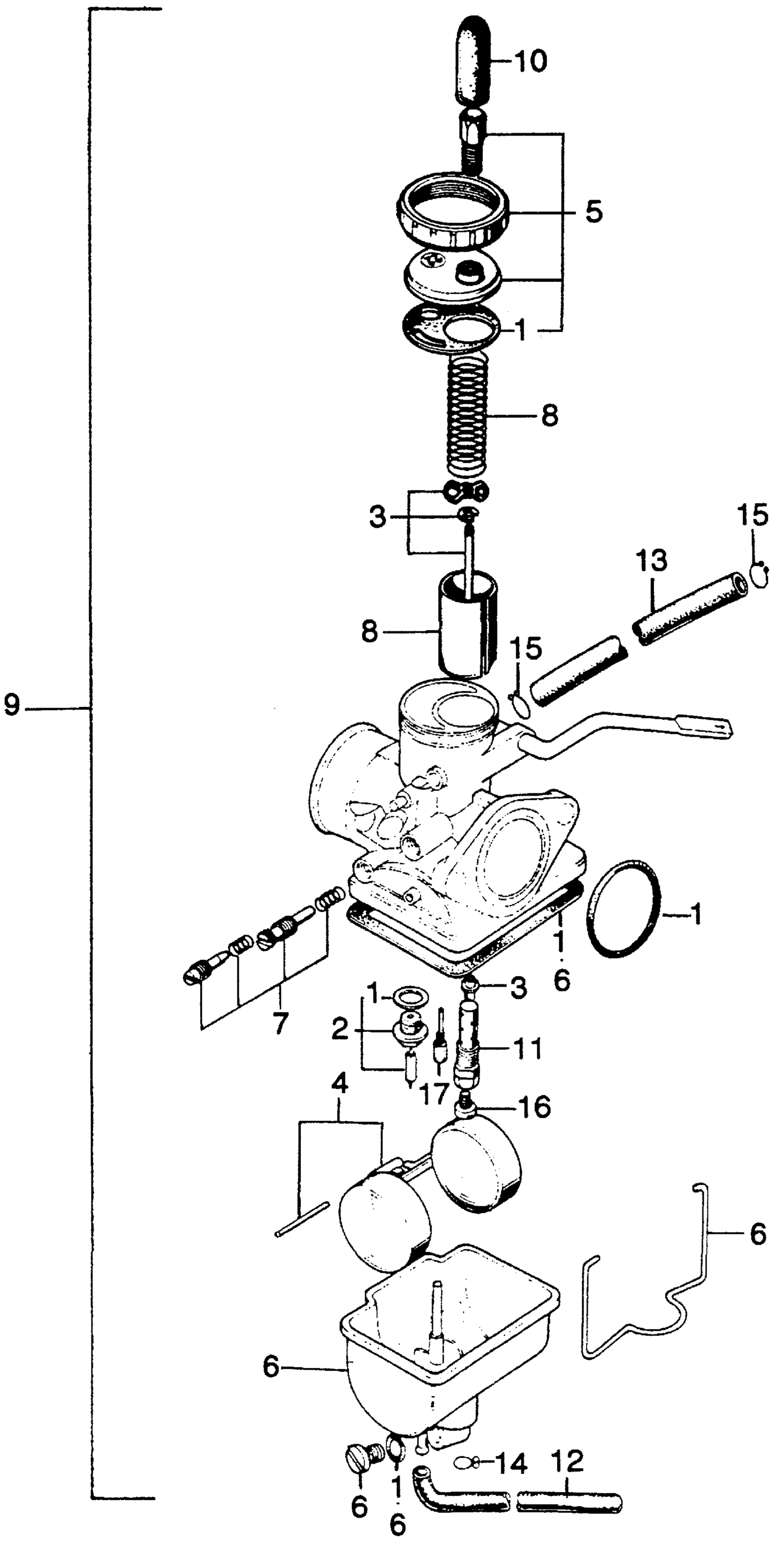

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-107-710.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-331-770

Unavailable

4

FLOAT SET

16013-286-014

$32.28

5

TOP SET (NOT AVAILABLE)

16014-107-711

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-107-710

Unavailable

7

SCREW SET A

16016-KJ2-671

Unavailable

7

SCREW SET A This part replaces 16016-035-004.

16016-KJ2-671

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-331-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-331-770.

16100-331-771

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-331-771

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-107-710

Unavailable

12

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

13

BULK HOSE, FUEL (4.5X3000) (4.5X140)

95001-45003-60M

$36.67

13

BULK HOSE, FUEL (4.5X3000) (4.5X150)

95001-45003-60M

$36.67

13

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-60M

$36.67

14

CLIP, TUBE (B7)

95002-02070

$1.80

15

CLIP, TUBE (B8)

95002-02080

$1.80

16

JET, MAIN (#98)

99114-246-0980

Unavailable

17

JET, SLOW (#38)

99124-076-0380

$9.87
