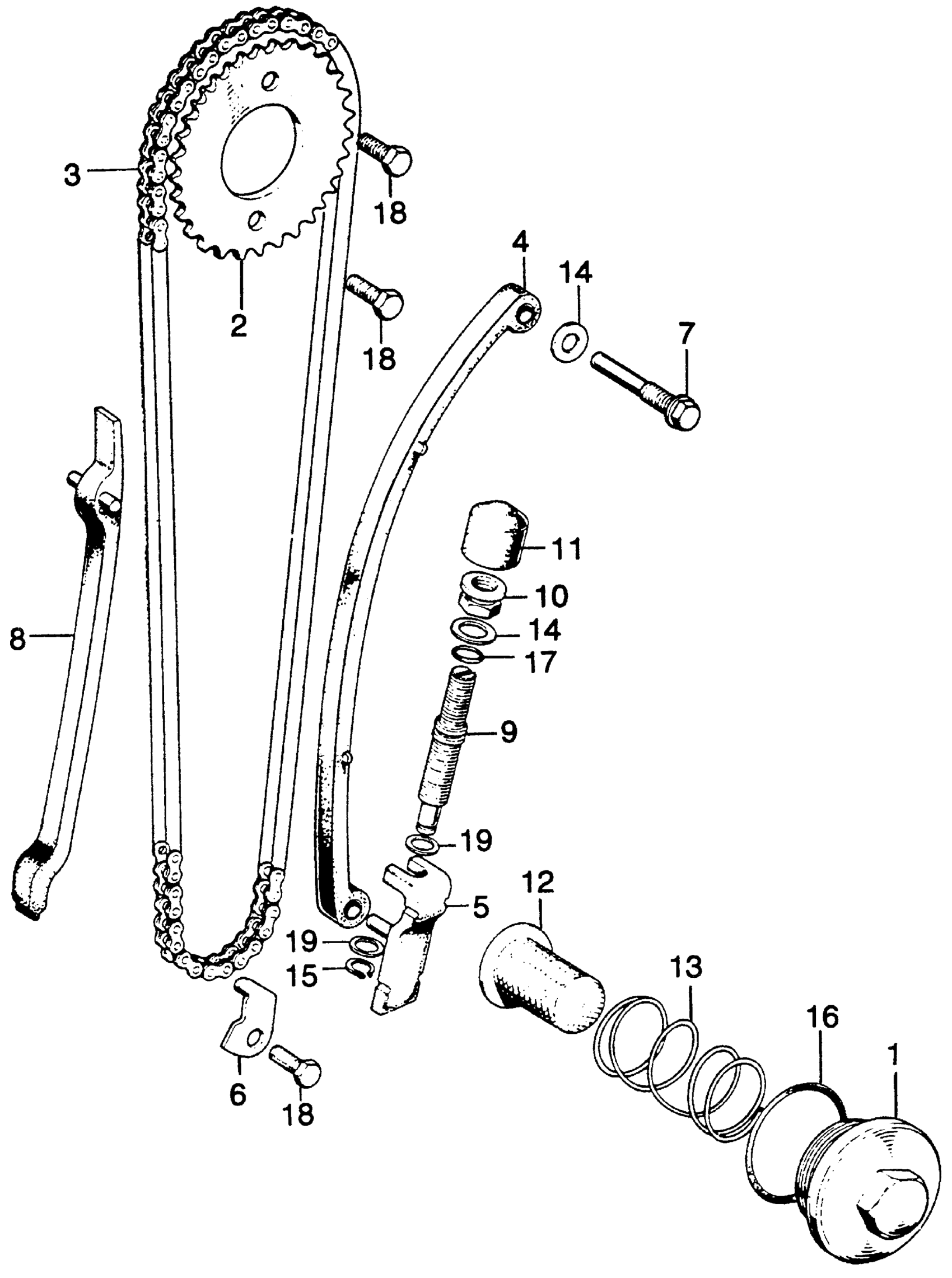

Honda CL125S1A MOTORCYCLE, JPN, VIN# CL125S-1100001 CAM CHAIN TENSIONER + OIL FILTER SCREEN Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.43

1

CAP, VALVE ADJ.

12361-383-000

$6.43

2

SPROCKET, CAM (32T) This part replaces 14321-107-010.

14321-437-000

$28.36

2

SPROCKET, CAM (32T)

14321-437-000

$28.36

3

CHAIN, CAM (100L) (DAIDO) This part replaces 14401-107-000.

14401-958-003

$84.25

4

TENSIONER, CAM CHAIN

14500-324-000

Unavailable

5

HINGE, CAM CHAIN TENSIONER (NOT AVAILABLE) This part replaces 14510-324-000.

14510-355-000

Unavailable

5

HINGE, CAM CHAIN TENSIONER (NOT AVAILABLE)

14510-355-000

Unavailable

6

PLATE, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14514-324-000

Unavailable

7

BOLT, CAM CHAIN TENSIONER PIVOT

14535-107-010

Unavailable

8

GUIDE, CAM CHAIN

14550-107-010

Unavailable

9

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-324-000

Unavailable

10

NUT, CAM CHAIN TENSIONER ADJUSTING (NOT AVAILABLE)

14563-107-000

Unavailable

11

CAP, TENSIONER ADJUSTING

14564-107-000

Unavailable

12

SCREEN, OIL FILTER

15421-107-000

$6.31

13

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

14

WASHER (8MM)

90481-035-000

$1.87

15

CIRCLIP (5MM)

90605-230-000

$2.92

16

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

17

O-RING (7.8X1.9) (NOK)

91352-SA5-952

$2.68

17

O-RING (7.8X1.9) (NOK) This part replaces 91361-706-000.

91352-SA5-952

$2.68

18

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

18

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49
