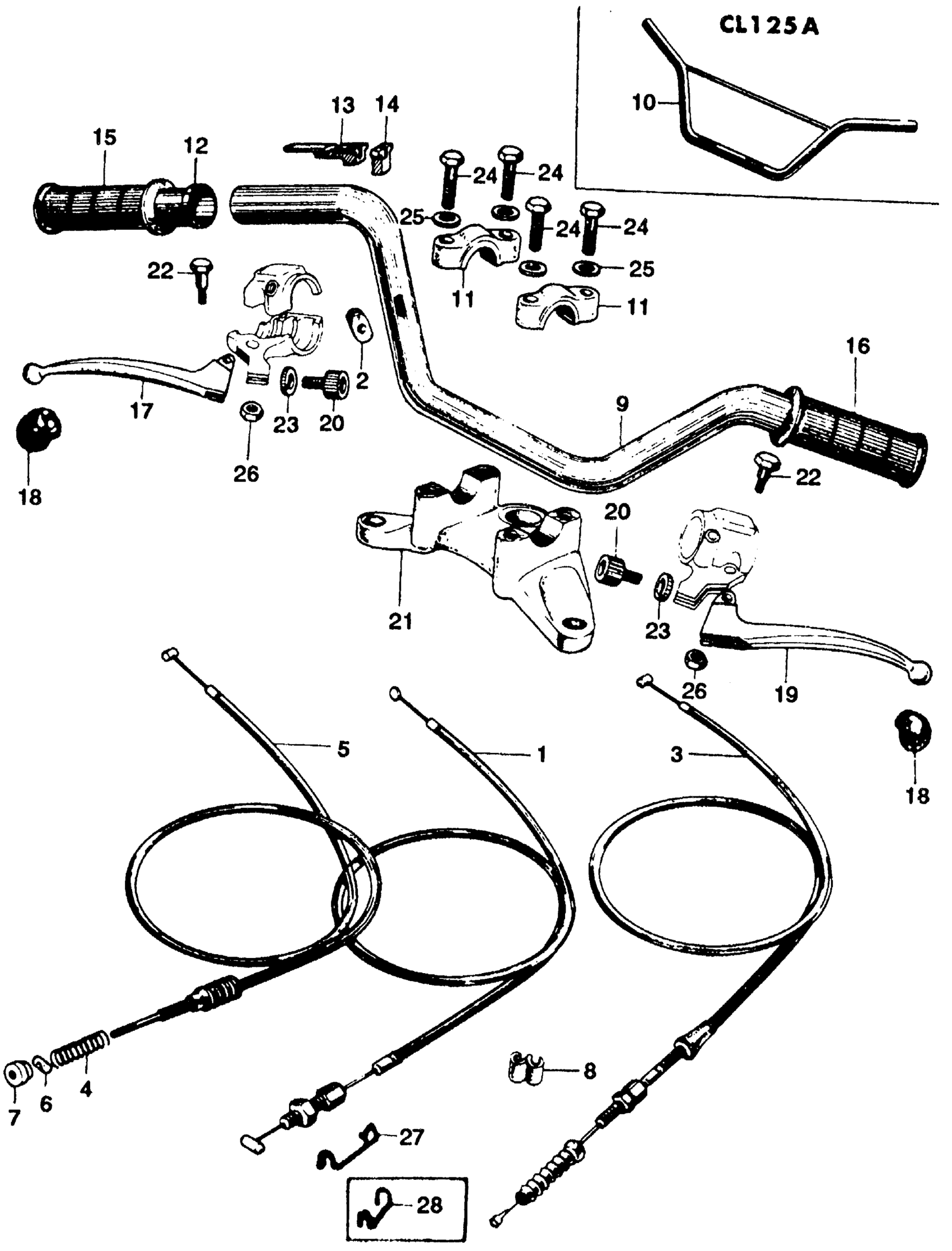

Honda CL125AA MOTORCYCLE, JPN, VIN# CL125A-300001 HANDLEBAR Diagram

#

Description
Price

NI

REFLECTOR ASSY., FR. REFLEX (NOT AVAILABLE) | Use from Frame SN 314546

33741-077-671

Unavailable

NI

SCREW, TAPPING (4X10) (USED ON FR. REFLECTOR) | Use from Frame SN 314546

93901-34210

$1.49

NI

WASHER, PLAIN (4MM) (USED ON FR. REFLECTOR) | Use from Frame SN 314546

94101-04000

$1.49

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-243-000

Unavailable

3

CABLE, CLUTCH (NOT AVAILABLE)

22870-303-000

Unavailable

4

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.61

5

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 300001

45450-243-000

Unavailable

5

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 314546

45450-243-010

Unavailable

6

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM

95015-31001

$1.53

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

10

HANDLEBAR (NOT AVAILABLE)

53100-290-000

Unavailable

11

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-283-000.

95014-22100

$12.13

11

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$12.13

12

PIPE A, THROTTLE GRIP This part replaces 53141-240-000.

95014-51100

$17.62

12

PIPE A, THROTTLE GRIP

95014-51100

$17.62

13

HINGE, THROTTLE WIRE

53161-250-000

Unavailable

14

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-042-000

Unavailable

15

GRIP, R. HANDLEBAR This part replaces 53165-283-000.

95011-14100

$8.55

15

GRIP, R. HANDLEBAR

95011-14100

$8.55

16

GRIP, L. HANDLEBAR This part replaces 53166-283-000.

95011-14200

$14.81

16

GRIP, L. HANDLEBAR

95011-14200

$14.81

17

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-216-670.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

18

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

18

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

18

CAP A, LEVER

95010-16001

$5.97

19

LEVER, L. HANDLE This part replaces 53178-286-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-074-670.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-216-670.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

19

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

21

BRIDGE, FORK TOP

53231-230-010

Unavailable

22

SCREW, HANDLEBAR LEVER PIVOT

90114-028-000

$6.95

23

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

23

NUT, FIXING

90321-315-670

$7.31

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

24

BOLT, HEX. (8X38) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08038-0B.

92101-08038-0B

Unavailable

24

BOLT, HEX. (8X38) (SOURCE: VINTAGE PARTS INC.)

92101-08038-0B

Unavailable

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

CLIP A, THROTTLE CABLE (NOT AVAILABLE)

17911-243-303

Unavailable

28

CLIP B, THROTTLE CABLE (NOT AVAILABLE)

17912-243-303

Unavailable
