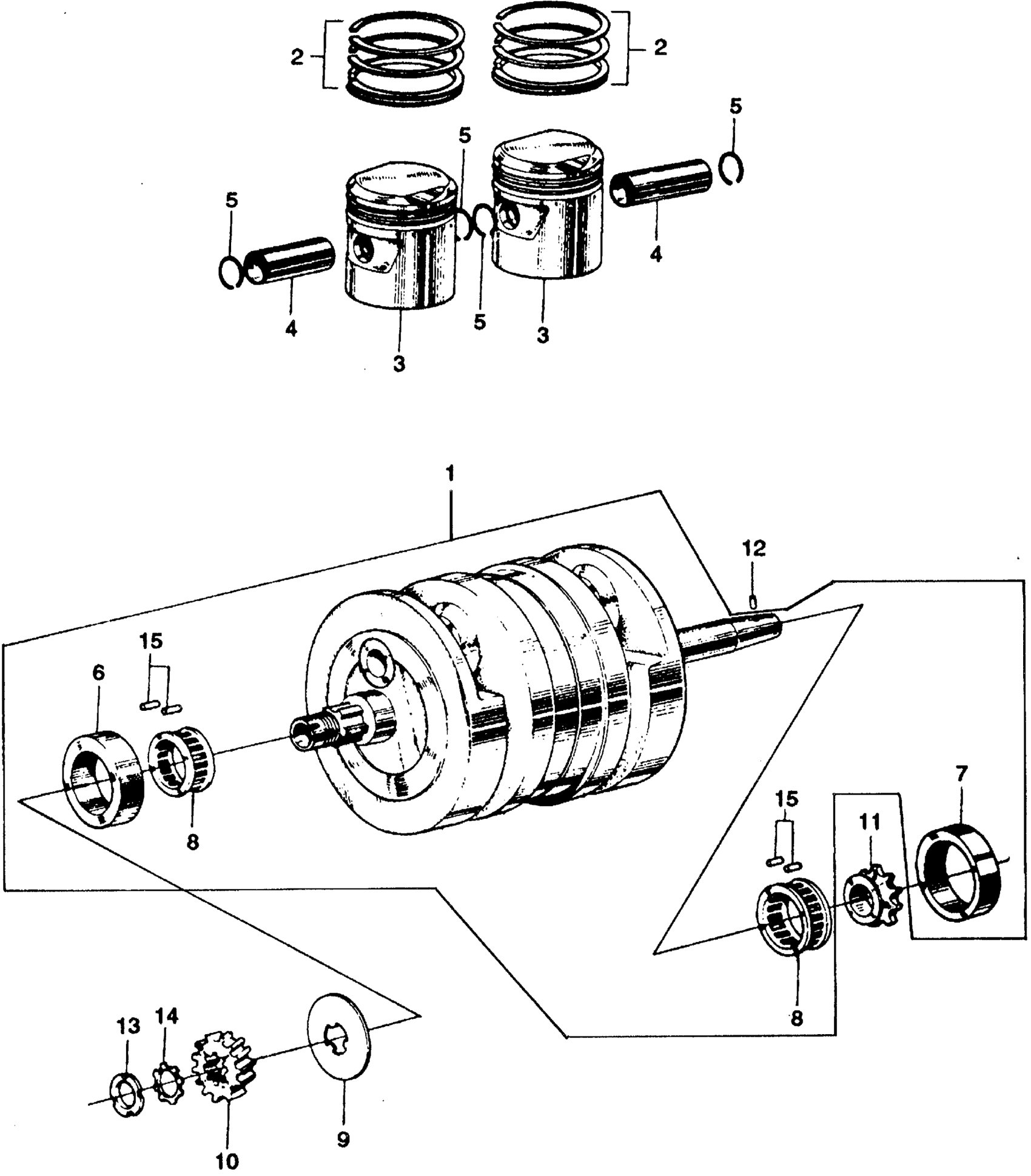

Honda CL125AA MOTORCYCLE, JPN, VIN# CL125A-300001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY.

13000-230-090

Unavailable

2

RING SET, PISTON (STD) This part replaces 13010-230-000.

13011-399-003

Unavailable

2

RING SET, PISTON (STD)

13011-399-003

Unavailable

2

RING SET, PISTON (OS 0.50)

13013-399-003

Unavailable

2

RING SET (OS) (0.25) This part replaces 13020-230-000.

13012-399-003

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-230-000.

13013-399-003

Unavailable

2

RING SET (OS) (0.75) This part replaces 13040-230-000.

13014-399-003

Unavailable

2

RING SET (1.00) This part replaces 13050-230-000.

13015-399-003

Unavailable

3

PISTON (STD)

13101-240-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-240-000

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-240-000

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-240-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-240-000

Unavailable

4

PIN, PISTON (NOT AVAILABLE)

13111-035-000

Unavailable

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

RACE, R. MAIN BEARING (OUTER)

13410-230-000

Unavailable

6

RACE, R. MAIN BEARING (OUTER) This part replaces 13411-230-010.

13410-230-000

Unavailable

7

RACE, L. MAIN BEARING (OUTER) (NOT AVAILABLE)

13420-230-000

Unavailable

7

RACE, L. MAIN BEARING (OUTER) (NOT AVAILABLE) This part replaces 13421-230-010.

13420-230-000

Unavailable

8

RETAINER, MAIN BEARING ROLLER

13481-230-004

Unavailable

8

RETAINER, MAIN BEARING ROLLER This part replaces 13481-230-010.

13481-230-004

Unavailable

9

PLATE, R. MAIN BEARING SET

13497-230-020

Unavailable

10

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

13611-230-050

Unavailable

11

SPROCKET, TIMING (NOT AVAILABLE)

14311-230-040

Unavailable

12

PIN, FLYWHEEL KNOCK (NOT AVAILABLE)

30906-230-000

Unavailable

13

NUT, LOCK (16MM)

90231-KCS-651

$4.21

13

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

14

WASHER, LOCK (16MM) (NOT AVAILABLE)

90431-216-010

Unavailable

15

ROLLER (5X10) (NOT AVAILABLE)

91102-230-000

Unavailable
