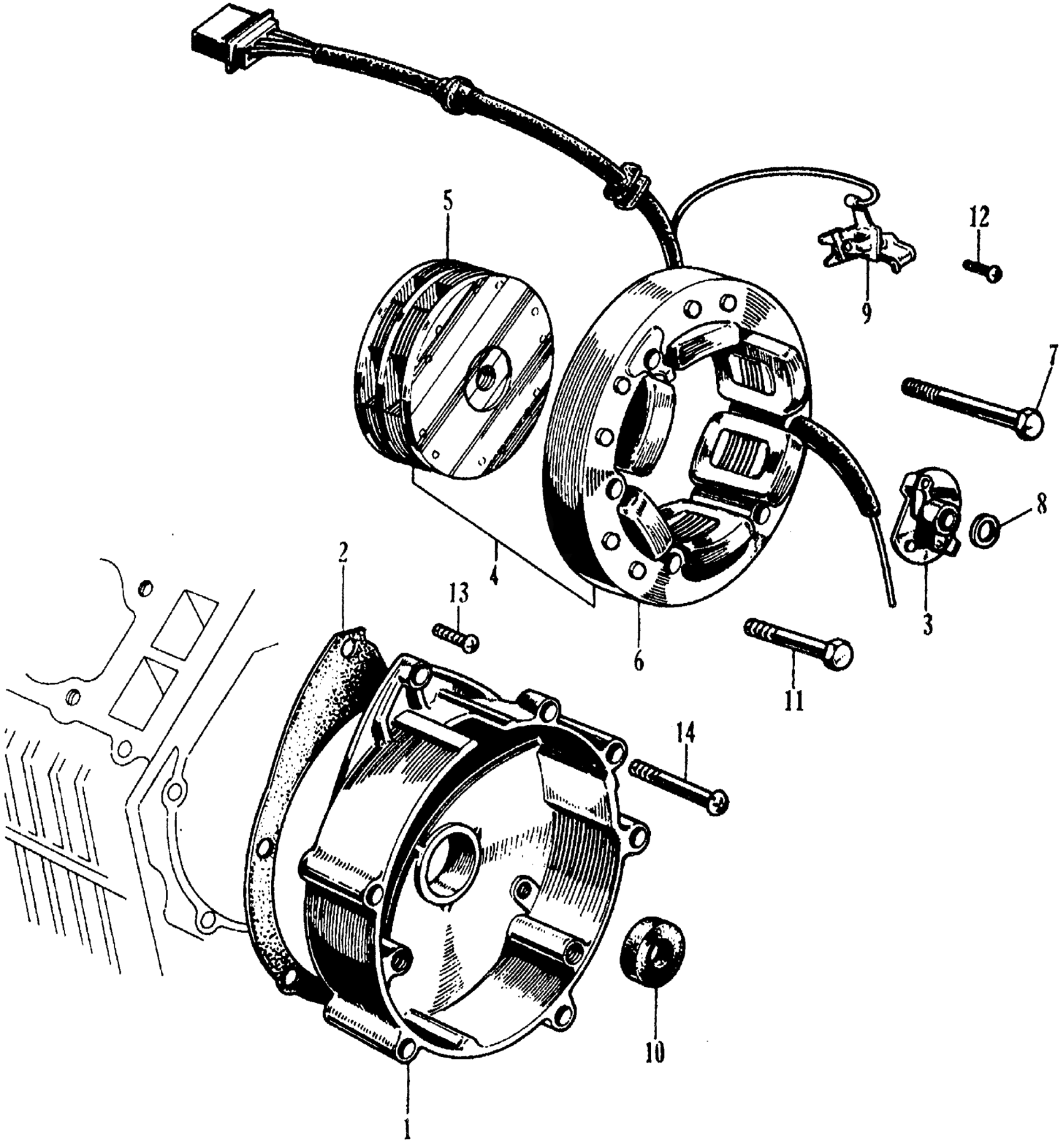

Honda CL125AA MOTORCYCLE, JPN, VIN# CL125A-300001 ALTERNATOR Diagram

#

Description
Price

1

BASE, STATOR (NOT AVAILABLE) | Use from Engine SN 306267

11321-230-030

Unavailable

2

GASKET, STATOR BASE This part replaces 11392-230-020.

11392-230-307

Unavailable

3

ADVANCER, SPARK (NOT AVAILABLE) This part replaces 30220-230-003.

30220-230-014

Unavailable

3

ADVANCER, SPARK (NOT AVAILABLE)

30220-230-014

Unavailable

4

ALTERNATOR ASSY.

31100-243-000

Unavailable

5

ROTOR

31101-243-003

Unavailable

5

ROTOR

31101-243-004

Unavailable

6

STATOR

31102-243-003

Unavailable

6

STATOR

31102-243-004

Unavailable

7

BOLT, ALTERNATOR ROTOR SETTING

31104-242-004

Unavailable

8

WASHER, ALTERNATOR ROTOR SETTING (NOT AVAILABLE)

31105-242-004

Unavailable

9

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-200-000

Unavailable

10

OIL SEAL (17.9X38X7.5) (SC-TYPE) (NOT AVAILABLE)

91207-240-000

Unavailable

11

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

11

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

12

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

13

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

13

SCREW, PAN (6X20)

93500-06020-0A

$1.49

14

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

14

SCREW, PAN (6X50)

93500-06050-0A

$1.49
