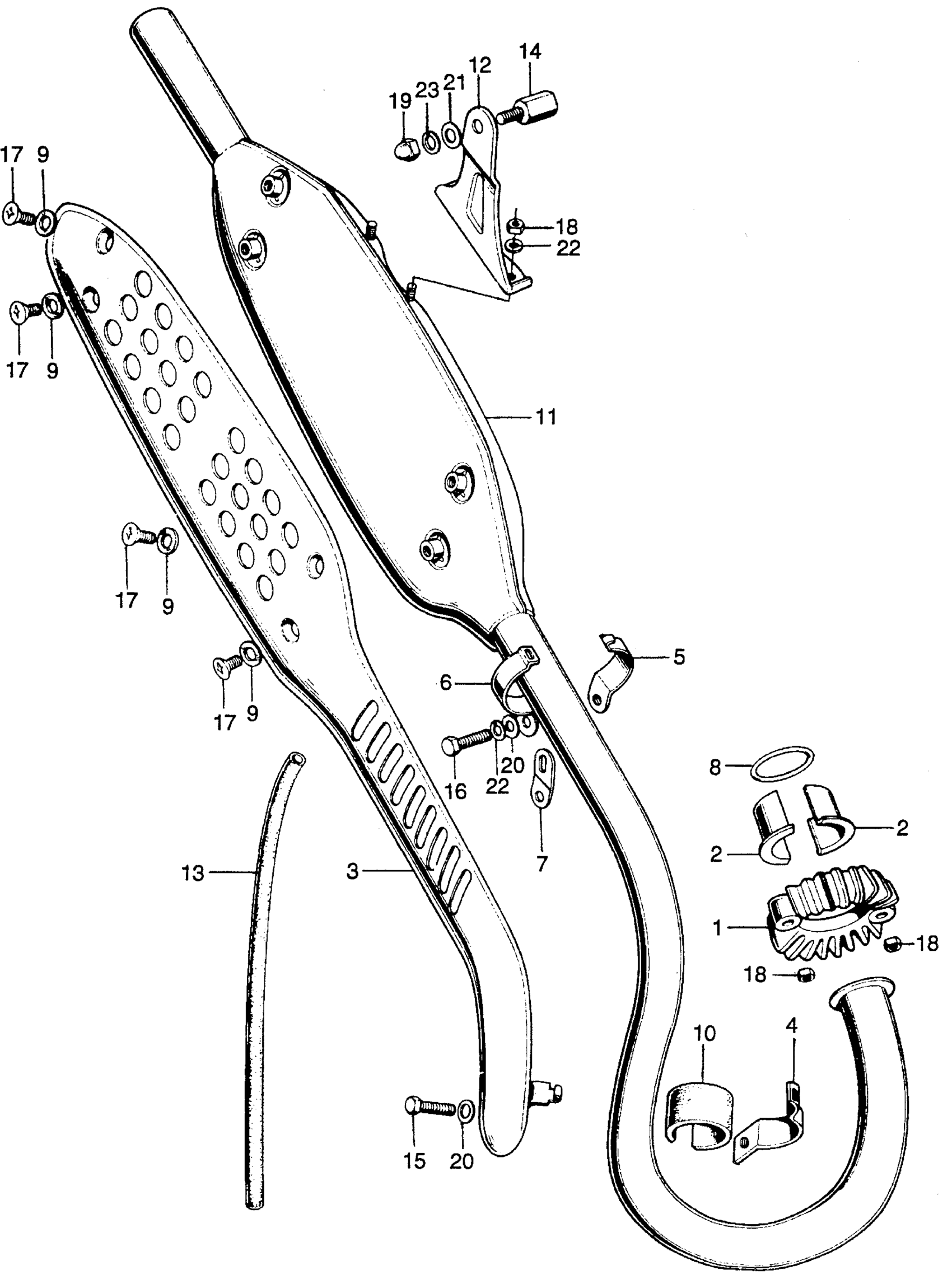

Honda CL100K2A MOTORCYCLE, JPN, VIN# CL100-1200001 TO CL100-1205400 CL100 MUFFLER K2-S3 Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-323-000

Unavailable

2

COLLAR, EX. JOINT

18233-107-000

$6.36

3

PROTECTOR, EX. MUFFLER (NOT AVAILABLE)

18250-108-760

Unavailable

4

BAND, PROTECTOR SETTING (NOT AVAILABLE)

18272-108-770

Unavailable

5

BAND A, EX. PIPE (NOT AVAILABLE)

18281-108-760

Unavailable

6

BAND B, EX. PIPE (NOT AVAILABLE)

18282-108-760

Unavailable

7

STAY, EX. PIPE (NOT AVAILABLE)

18284-108-770

Unavailable

8

GASKET, EX. PIPE

18291-MN5-650

$3.77

8

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

9

GASKET, PROTECTOR

18292-167-890

$1.88

9

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.88

10

RUBBER, PROTECTOR BAND (NOT AVAILABLE)

18293-108-000

Unavailable

11

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-108-760.

18300-108-767

Unavailable

11

MUFFLER, EX. (NOT AVAILABLE)

18300-108-767

Unavailable

12

BRACKET, MUFFLER *NH1* (BLACK) (NOT AVAILABLE)

18353-108-760B

Unavailable

13

PIPE, MUFFLER DRAIN

18381-011-010

Unavailable

13

PIPE, MUFFLER DRAIN This part replaces 18381-056-010.

18381-011-010

Unavailable

14

BOLT, RR. MUFFLER SETTING

90120-056-010

$7.64

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

16

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

17

SCREW, OVAL (6X8) (NOT AVAILABLE)

93700-06008-49

Unavailable

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

NUT, CAP (8MM)

94021-08020-0S

$1.82

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49
