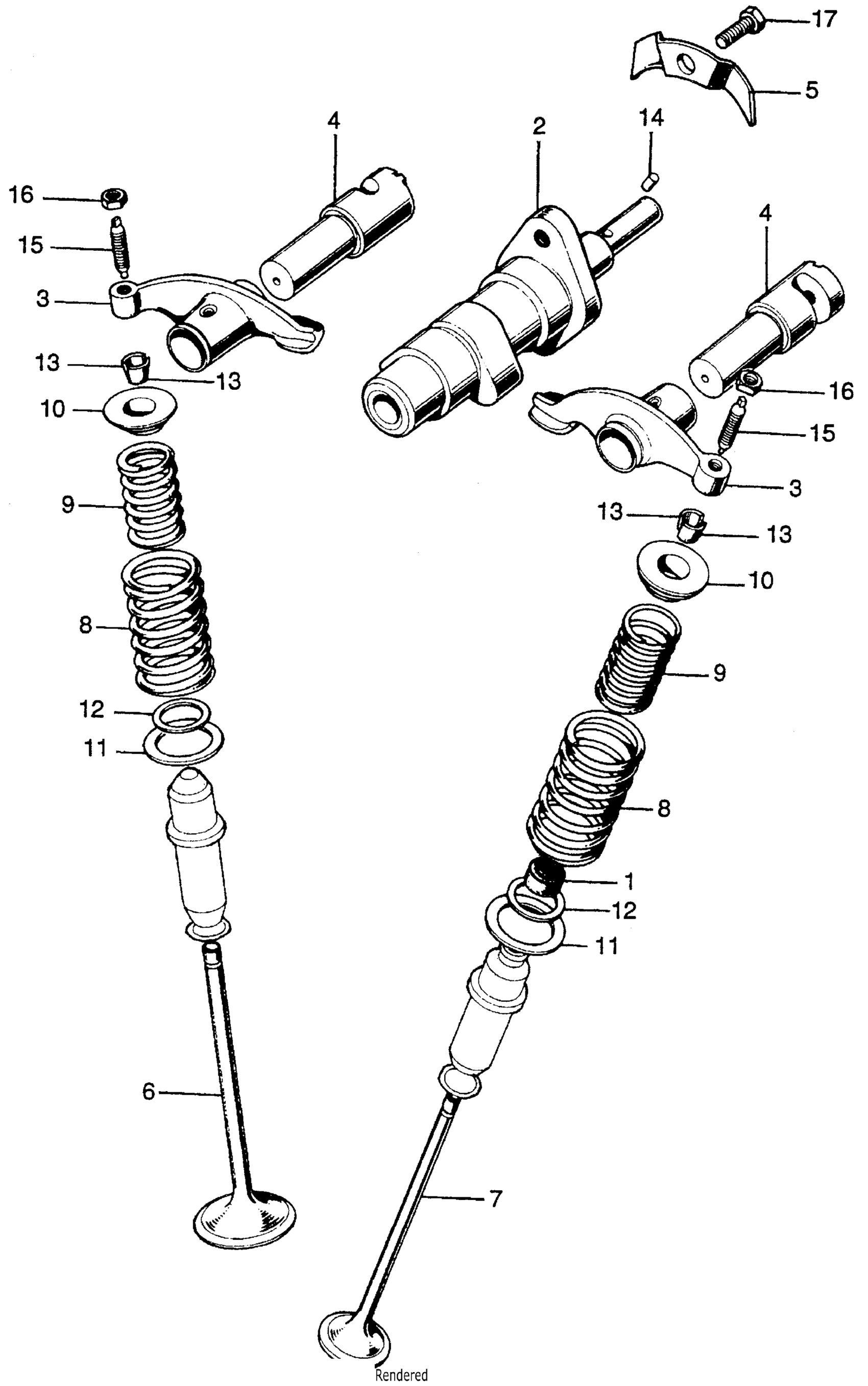

Honda CL100K2A MOTORCYCLE, JPN, VIN# CL100-1200001 TO CL100-1205400 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$11.37

2

CAMSHAFT (NOT AVAILABLE) This part replaces 14101-107-020.

14101-324-000

Unavailable

3

ARM, VALVE ROCKER

14431-324-000

Unavailable

4

SHAFT, VALVE ROCKER ARM

14451-107-000

Unavailable

5

PLATE, VALVE ROCKER ARM SHAFT SETTING (NOT AVAILABLE)

14456-107-010

Unavailable

6

VALVE, IN.

14711-107-020

Unavailable

7

VALVE, EX. | Use up to Engine SN 1231850 This part replaces 14721-324-000.

14721-324-010

Unavailable

7

VALVE, EX.

14721-324-010

Unavailable

7

VALVE, EX. | Use up to Engine SN 1231850

14721-324-010

Unavailable

8

SPRING, VALVE (OUTER)

14751-324-000

$9.08

9

SPRING, VALVE (INNER)

14761-324-000

Unavailable

10

RETAINER, VALVE SPRING

14771-107-020

$7.99

11

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

12

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

13

COTTER, VALVE (SANKO)

14781-107-003

$2.55

13

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

14

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

15

SCREW, TAPPET ADJ. This part replaces 90012-324-000.

90012-415-000

$6.05

15

SCREW, TAPPET ADJ.

90012-415-000

$6.05

16

NUT, TAPPET ADJ.

90206-250-000

$2.94

17

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

17

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
