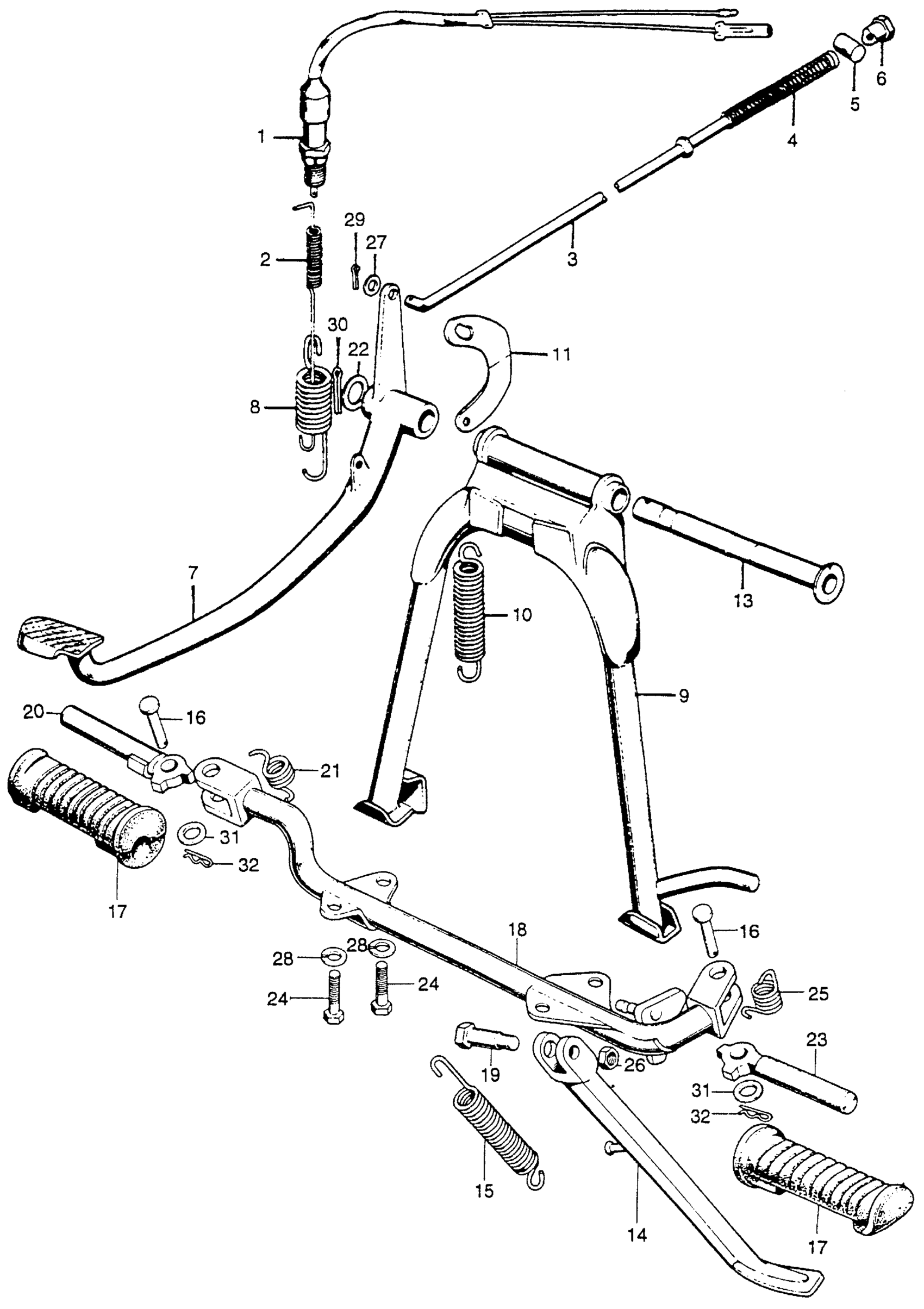

Honda CL100K1A MOTORCYCLE, JPN, VIN# CL100-200001 MAIN STAND + STEP BAR Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SPRING, STOP SWITCH

35357-107-010

Unavailable

3

ROD, RR. BRAKE This part replaces 43450-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

3

ROD, RR. BRAKE

43451-397-000

$7.34

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM

95015-31001

$1.53

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

7

PEDAL, BRAKE

46500-108-000

Unavailable

8

SPRING, BRAKE PEDAL

46514-107-010

$5.99

9

STAND, MAIN

50500-108-762

Unavailable

9

STAND, MAIN This part replaces 50500-108-000B.

50500-108-762

Unavailable

9

STAND, MAIN This part replaces 50500-108-690B.

50500-108-762

Unavailable

9

STAND, MAIN This part replaces 50500-108-760B.

50500-108-762

Unavailable

9

STAND, MAIN This part replaces 50500-108-761.

50500-108-762

Unavailable

10

SPRING, MAIN STAND This part replaces 50522-028-010.

95014-71202

$2.84

10

SPRING, MAIN STAND

95014-71202

$2.84

11

HOOK, MAIN STAND SPRING

50523-107-000

Unavailable

12

RUBBER B, STAND STOPPER This part replaces 50524-011-000.

95011-62000

$1.49

12

RUBBER B, STAND STOPPER

95011-62000

$1.49

13

PIPE, MAIN STAND PIVOT This part replaces 50526-028-010.

50526-383-670

Unavailable

13

PIPE, MAIN STAND PIVOT This part replaces 50526-331-000.

50526-383-670

Unavailable

13

PIPE, MAIN STAND PIVOT

50526-383-670

Unavailable

14

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50530-107-010.

50530-107-700B

Unavailable

14

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-107-700B

Unavailable

15

SPRING A, SIDE STAND This part replaces 50542-046-750.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72100.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

15

SPRING A, SIDE STAND

95014-72102

$2.84

16

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

16

PIN, STEP BAR JOINT

50603-033-010

$3.30

18

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-108-670B

Unavailable

20

ARM, R. STEP

50616-056-670

Unavailable

21

SPRING, R. STEP RETURN

50617-056-670

Unavailable

23

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

Unavailable

24

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

24

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

25

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

26

NUT, HEX. (10MM)

94002-10000-0S

$4.06

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

30

PIN, COTTER (3.0X45)

94201-30450

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

PIN, LOCK (8MM)

94251-08000

$1.49
