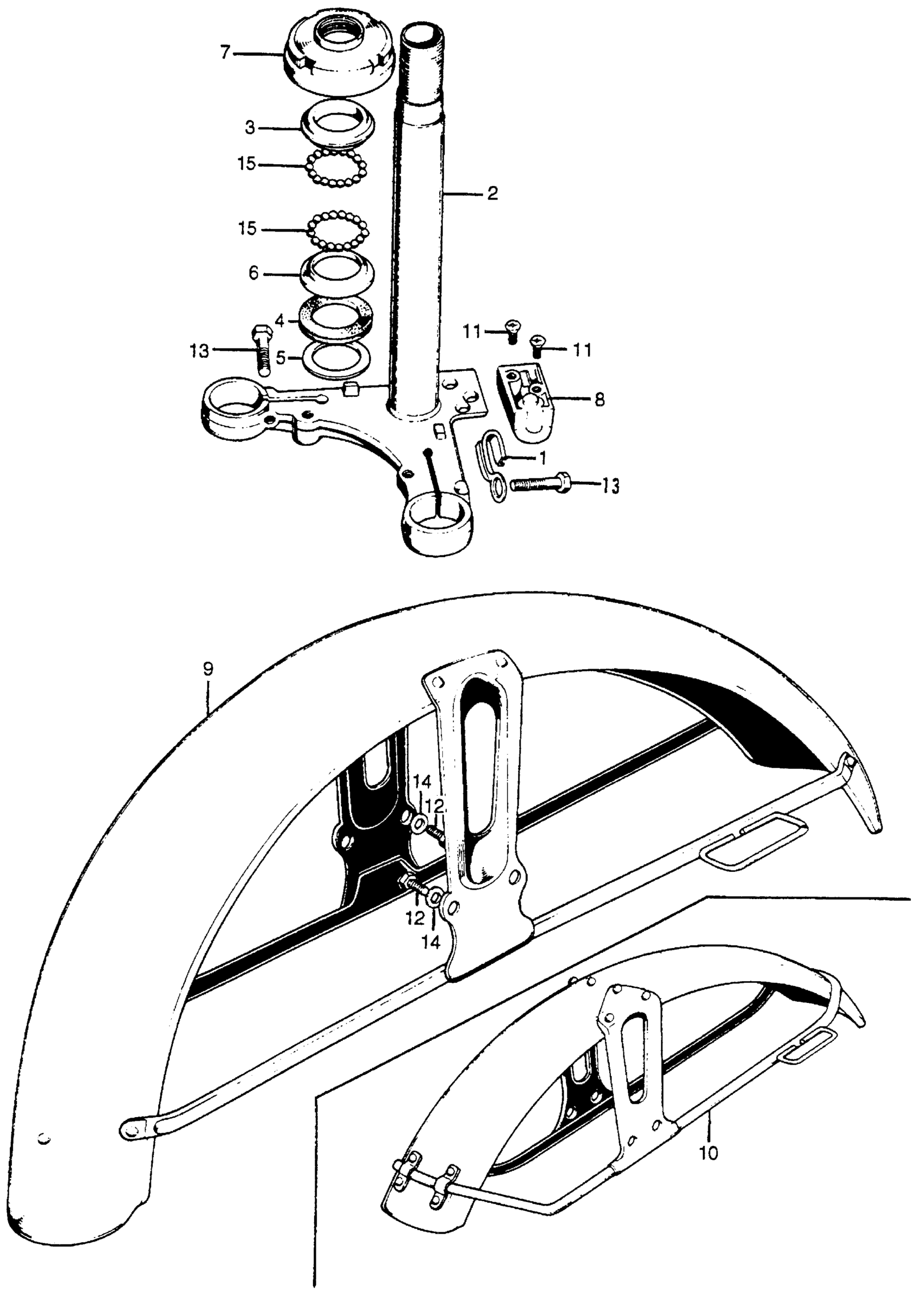

Honda CL100A MOTORCYCLE, JPN, VIN# CL100-100001 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE

45465-028-000

Unavailable

2

STEM, STEERING *NH1* (BLACK) This part replaces 53200-028-000B.

53200-028-000ZG

Unavailable

2

STEM, STEERING *NH1* (BLACK)

53200-028-000ZG

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

3

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

4

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

5

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

6

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

6

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

7

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

10

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

61100-108-670XW

Unavailable

11

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

13

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
