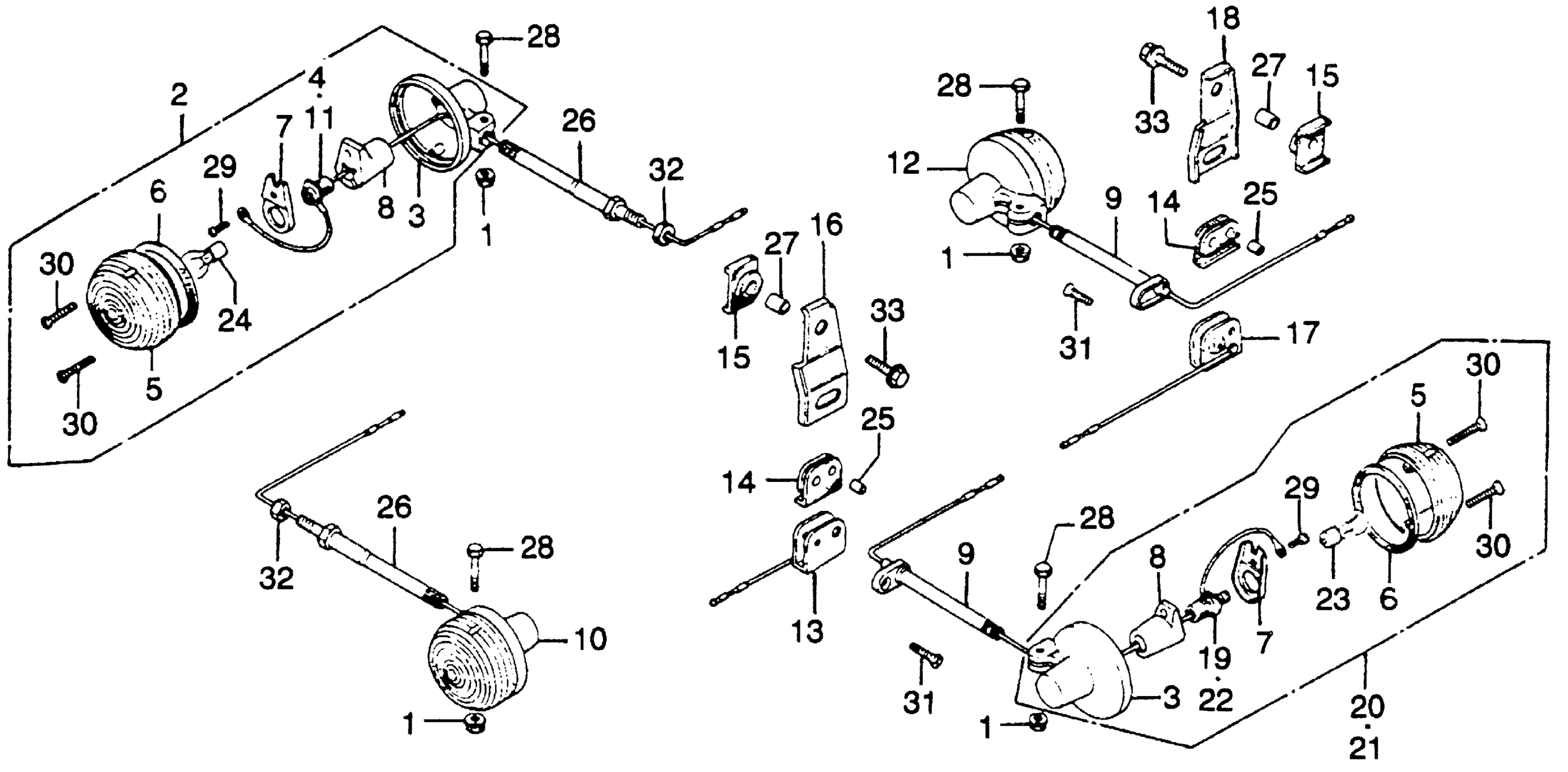

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 TURN SIGNAL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-341-702

Unavailable

3

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

3

BASE, TURN SIGNAL

33401-341-701

$39.39

4

SOCKET, R. FR. TURN SIGNAL

33402-341-702

Unavailable

5

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

5

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

5

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33404-268-671.

33402-268-672

$8.92

6

GASKET, TURN SIGNAL LENS This part replaces 33406-268-671.

33443-268-671

$2.13

6

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

7

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

8

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

9

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33441-369-000

Unavailable

10

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-341-702

Unavailable

11

SOCKET, L. FR. TURN SIGNAL

33453-341-702

Unavailable

12

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

12

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

13

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33605-388-000

Unavailable

14

RUBBER, RR. TURN SIGNAL MOUNT

33606-074-010

$4.98

15

RUBBER, RR. TURN SIGNAL STAY MOUNT (NOT AVAILABLE)

33607-388-670

Unavailable

16

STAY, R. RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

33608-388-670

Unavailable

17

STOPPER, L. TURN SIGNAL (NOT AVAILABLE)

33609-388-000

Unavailable

18

STAY, L. RR. TURN SIGNAL SETTING

33609-388-670

Unavailable

19

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-306-670

Unavailable

20

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

20

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

21

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

21

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

21

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

22

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-306-670

$9.69

23

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

24

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

24

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

25

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

25

COLLAR A, RR. FENDER

80108-061-010

$4.12

26

BOLT, FR. TURN SIGNAL SETTING (NOT AVAILABLE)

90154-388-670

Unavailable

27

COLLAR, RR. TURN SIGNAL MOUNT

90324-303-000

$5.06

28

BOLT, HEX. (6X25) This part replaces 93000-06025-0B.

93101-06025-0B

$2.00

28

BOLT, HEX. (6X25) This part replaces 93000-06025-02.

93101-06025-0B

$2.00

28

BOLT, HEX. (6X25)

93101-06025-0B

$2.00

29

SCREW, PAN (5X8)

93500-05008-0A

$1.49

30

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

31

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

31

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

32

NUT, HEX. (12MM)

94002-12000-0S

$2.06

33

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

33

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
