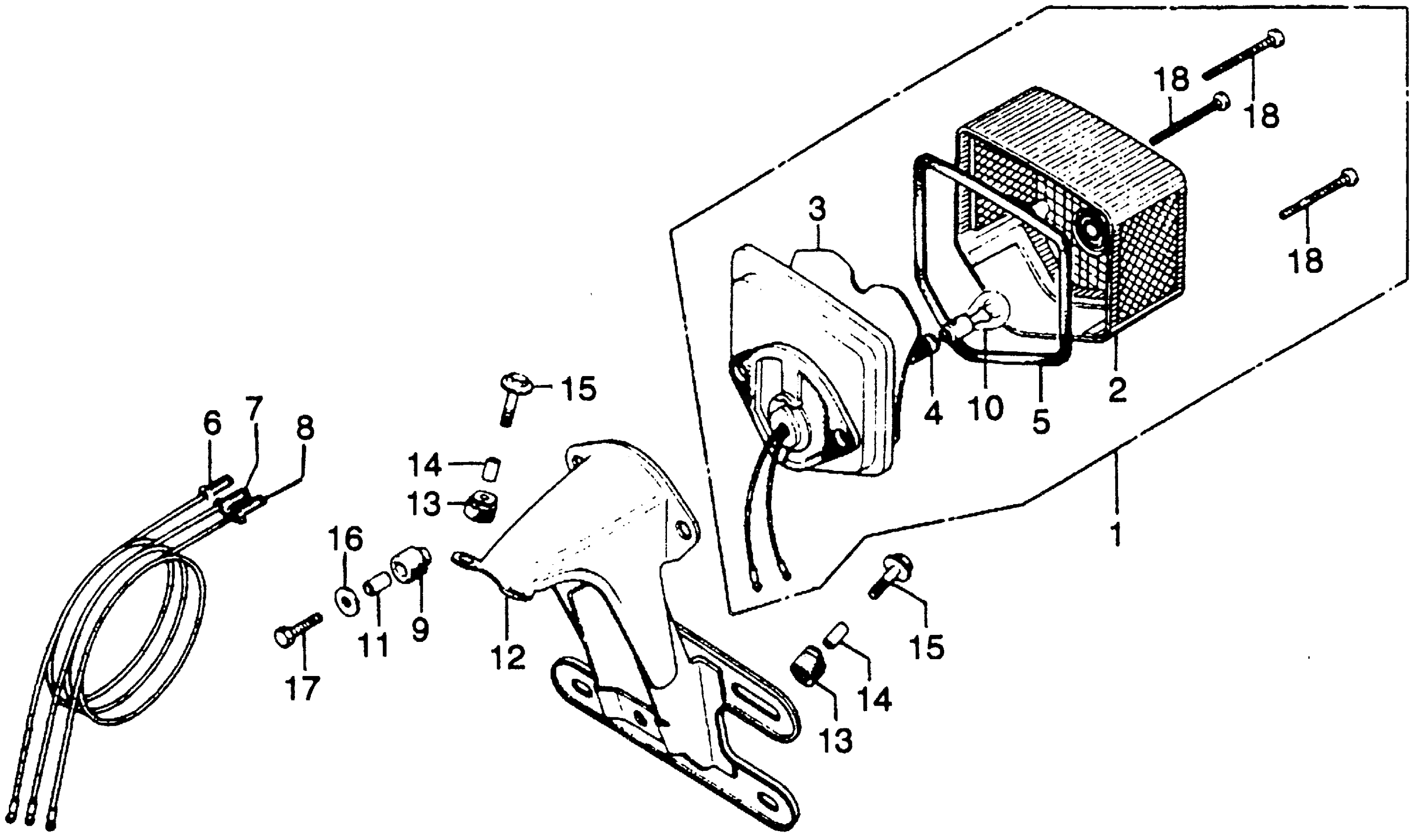

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-388-670

Unavailable

2

LENS, TAILLIGHT

33702-329-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-388-670

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

6

SUB-WIRE, STOP LIGHT (NOT AVAILABLE)

33710-333-000

Unavailable

7

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-333-000

Unavailable

8

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

9

GASKET B, TAILLIGHT BASE (NOT AVAILABLE)

33719-388-000

Unavailable

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

11

COLLAR, BATTERY BOX

50324-300-000

Unavailable

12

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-388-670ZA

Unavailable

13

RUBBER, FENDER

84905-333-000

$4.22

14

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

15

BOLT, FLANGE (6X25)

90122-369-000

$6.97

16

WASHER (20MM)

90581-310-000

$1.90

16

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

17

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

18

SCREW, PAN (4X55)

93500-04055-0B

$1.49
