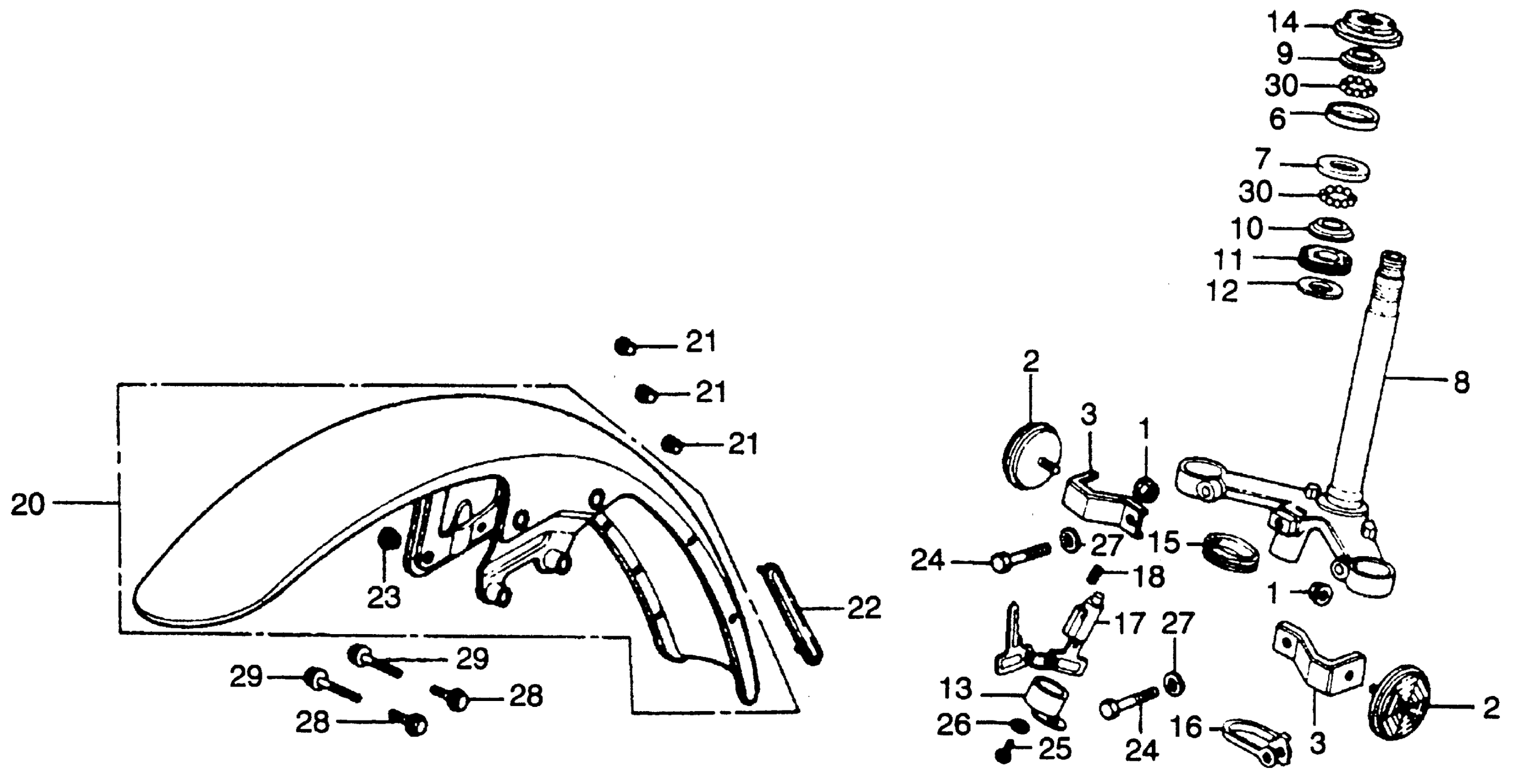

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 STEERING ARM + FRONT FENDER Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$0.60

1

NUT, FLANGE (6MM)

94050-06000

$0.60

2

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$32.91

3

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-388-000

Unavailable

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.71

6

RACE, STEERING BALL (UPPER)

50301-268-010

$19.71

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.71

7

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$20.68

7

RACE, STEERING BALL (LOWER)

50302-268-010

$20.68

7

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$20.68

8

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-388-000ZA

Unavailable

9

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.97

9

RACE, STEERING CONE (UPPER)

53211-268-010

$23.97

9

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$23.97

10

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$19.23

10

RACE, STEERING CONE (LOWER)

53212-250-010

$19.23

10

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$19.23

11

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.89

12

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.16

13

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-391-670

Unavailable

14

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

15

GUIDE, CABLE (INNER) (NOT AVAILABLE)

53225-333-000

Unavailable

16

BRACKET, CABLE GUIDE (NOT AVAILABLE)

53226-333-000

Unavailable

17

LOCK, HANDLEBAR (NOT AVAILABLE)

53600-382-671

Unavailable

18

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

20

FENDER, FR. *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

61100-388-670ZA

Unavailable

21

PLUG, HOLE

61110-388-000

$3.10

22

PROTECTOR, FR. FENDER (NOT AVAILABLE)

61111-388-000

Unavailable

23

WASHER, FR. FENDER SETTING

90556-044-000

$3.48

24

BOLT, HEX. (8X35) This part replaces 92000-08035.

92101-08035-0A

$0.90

24

BOLT, HEX. (8X35) This part replaces 92000-08035-0A.

92101-08035-0A

$0.90

24

BOLT, HEX. (8X35) This part replaces 92000-08036.

92101-08035-0A

$0.90

24

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$0.90

24

BOLT, HEX. (8X35)

92101-08035-0A

$0.90

24

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$0.90

25

SCREW, PAN (3X12)

93500-03012-0A

$0.76

26

WASHER, PLAIN (3MM)

94101-03000

$0.60

27

WASHER, PLAIN (8MM)

94101-08000

$0.76

28

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.50

28

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

29

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.66

29

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.15
