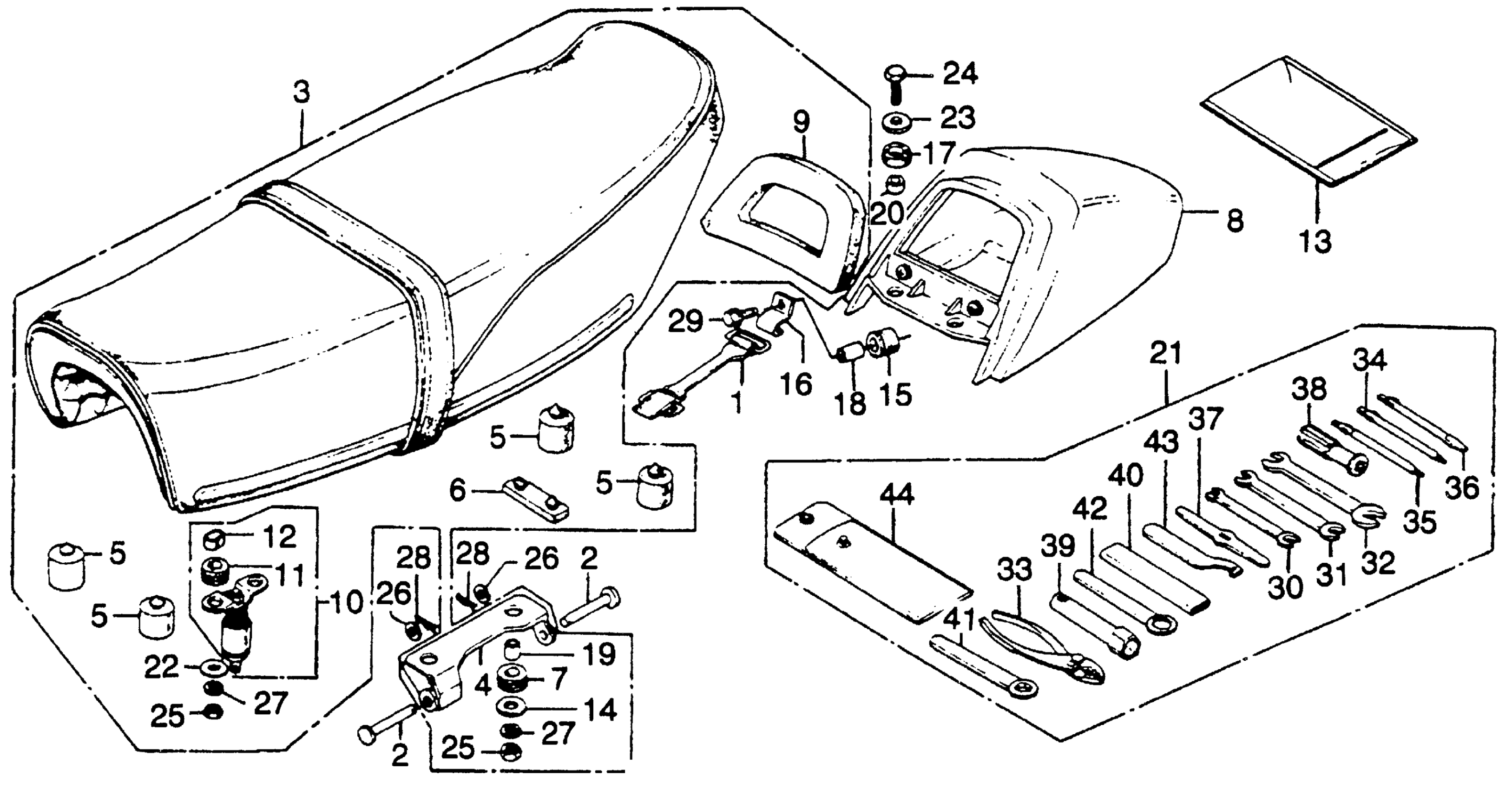

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 SEAT + TOOL Diagram

#

Description
Price

1

BAND, WIRE HARNESS This part replaces 32161-377-000.

70284-538-010

Unavailable

1

BAND, WIRE HARNESS

70284-538-010

Unavailable

2

BAR, SEAT HINGE

77103-313-000

Unavailable

3

SEAT ASSY., DOUBLE

77200-388-700

Unavailable

4

HINGE, SEAT

77201-388-000

Unavailable

5

RUBBER A, SEAT SETTING

77204-286-020

$10.02

6

RUBBER, SEAT SETTING

77204-312-000

$5.05

7

RUBBER A, SEAT MOUNT (NOT AVAILABLE)

77206-375-000

Unavailable

8

COVER ASSY., RR. SEAT *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

77213-388-700ZA

Unavailable

9

RUBBER, SEAL (NOT AVAILABLE)

77211-388-300

Unavailable

10

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

10

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

10

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

11

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

11

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

11

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

12

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

12

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

12

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

13

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

14

WASHER, SEAT SETTING

77302-124-000

$3.23

15

RUBBER, RR. FENDER CUSHION (NOT AVAILABLE)

80101-313-010

Unavailable

16

HOOK, TOOL SETTING (NOT AVAILABLE)

83510-388-000

Unavailable

17

RUBBER, NUMBER PLATE MOUNT (NOT AVAILABLE)

84705-300-620

Unavailable

18

COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)

84706-307-000

Unavailable

19

COLLAR, NUMBER BRACKET

84706-310-000

Unavailable

20

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

21

TOOL SET (NOT AVAILABLE) | Use up to Frame SN 2100719

89010-369-000

Unavailable

21

TOOL SET (NOT AVAILABLE) | Use from Frame SN 2100720

89010-369-010

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

22

WASHER, PLAIN (6MM)

94103-06800

$1.49

23

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

PIN, LOCK (6MM)

94251-06000

$1.49

29

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

29

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

30

WRENCH (8X12) (OPEN END) | Use up to Frame SN 2100719

99001-08120

$2.75

31

WRENCH (10X12) (OPEN END) | Use from Frame SN 2100720

99001-10120

$4.69

31

WRENCH (10X14) (OPEN END) | Use up to Frame SN 2100719

99001-10140

$2.92

32

WRENCH (14X17) (OPEN END) | Use from Frame SN 2100720

99001-14170

$7.49

32

WRENCH (17X19) (OPEN END) | Use up to Frame SN 2100719

99001-17190

$4.14

33

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

34

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

35

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

36

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

37

LEVER, TIRE

99003-40000

$1.49

38

GRIP

99003-50000

$3.27

39

WRENCH, BOX (P21)

99004-21001

$3.44

40

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

41

WRENCH, EYE (19MM) | Use from Frame SN 2100720

99006-19000

$4.16

42

WRENCH, EYE (22MM)

99006-22000

$4.16

43

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

44

BAG, TOOL

89101-ME5-670

Unavailable

44

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
