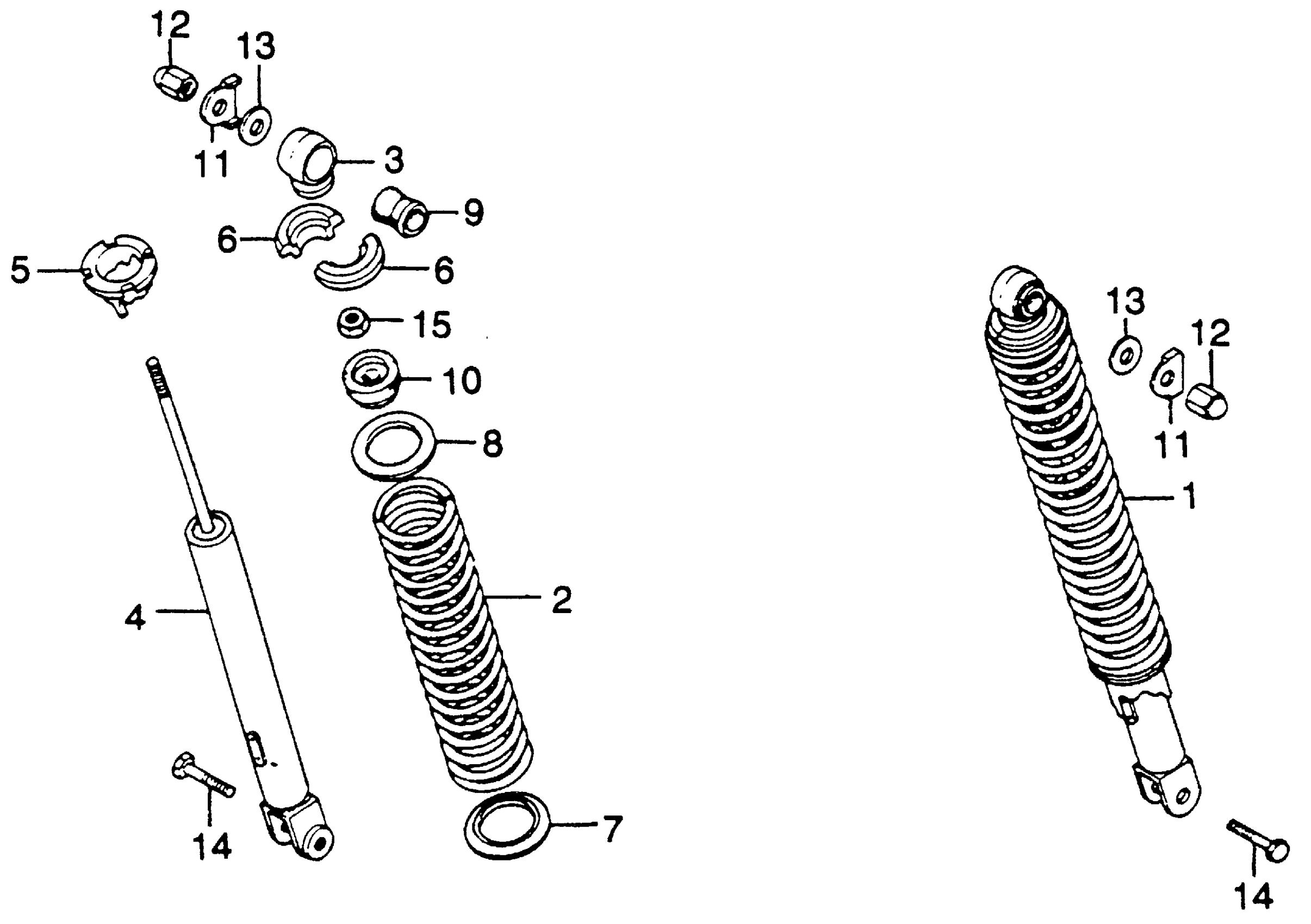

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) This part replaces 52400-388-003.

52400-375-611

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-323-000

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-312-000

$18.07

DAMPER, RR. (NOT AVAILABLE)

52410-388-003

Unavailable

ADJUSTER, SPRING

52422-388-003

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER (NOT AVAILABLE)

52517-358-771

Unavailable

WASHER, RR. GRIP

84102-388-000

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER, SPROCKET SETTING This part replaces 90516-913-000.

90551-033-000

$1.74

WASHER, SPROCKET SETTING

90551-033-000

$1.74

BOLT, HEX. (10X32) This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

BOLT, HEX. (10X32)

93101-10032-0B

$2.92

NUT, HEX. (10MM)

94002-10000-0S

$4.06
