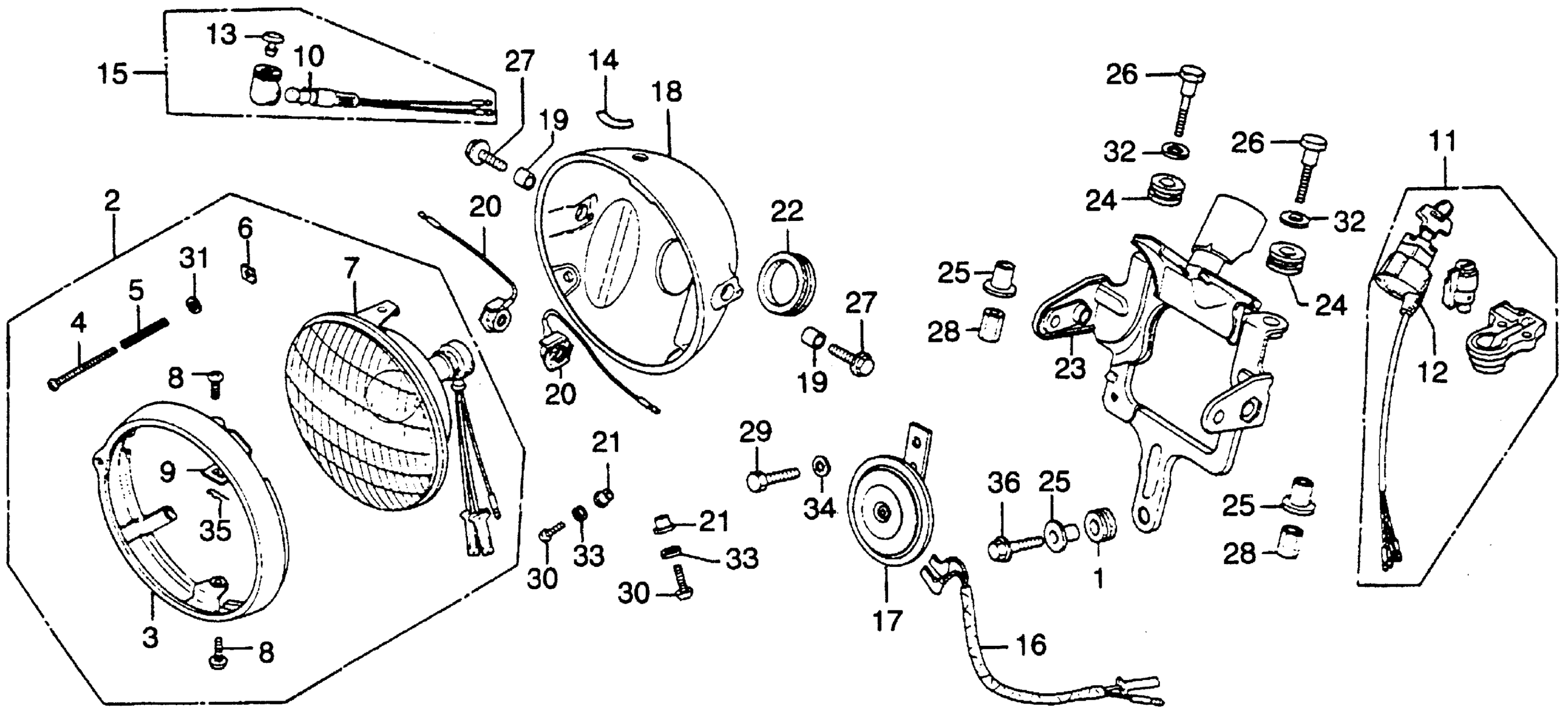

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 HEADLIGHT + HEADLIGHT STAY Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-292-674

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE)

33101-292-672

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33103-292-670

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-283-000

Unavailable

6

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

7

HEADLIGHT UNIT (12V 35/25W)

33120-292-673

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

11

LOCK SET (NOT AVAILABLE)

35010-388-670

Unavailable

12

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-388-007

Unavailable

13

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE) This part replaces 37551-329-005.

37551-329-015

Unavailable

13

LENS, BEAM PILOT (IMASEN) (NOT AVAILABLE)

37551-329-015

Unavailable

14

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

15

LAMP ASSY., HIGH BEAM PILOT (IMASEN) (NOT AVAILABLE)

37620-456-005

Unavailable

16

SUB-WIRE, HORN

38105-312-670

Unavailable

17

HORN (HIGH) This part replaces 38110-GB5-620.

38110-KY0-621

Unavailable

17

HORN (HIGH)

38110-KY0-621

Unavailable

17

HORN (HIGH) This part replaces 38110-371-620.

38110-KY0-621

Unavailable

18

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-333-013B

Unavailable

19

COLLAR, HEADLIGHT CASE

61302-292-000

Unavailable

20

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

21

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

22

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61306-388-000

Unavailable

23

STAY, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61311-388-000ZA

Unavailable

24

RUBBER A, RR. FENDER

80105-028-000

$5.28

25

COLLAR C, MOUNTING

80109-329-000

Unavailable

26

BOLT, METER ADJUSTING (NOT AVAILABLE)

90103-329-000

Unavailable

27

BOLT, FLANGE (10X25)

90124-369-000

Unavailable

28

NUT (6X15)

90282-329-000

$4.67

29

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

SCREW, PAN (5X16)

93500-05016-0B

$1.49

31

WASHER, PLAIN (4MM)

94101-04000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (5MM)

94111-05000

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

PIN, LOCK (5MM)

94251-05000

$1.49

36

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

36

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
