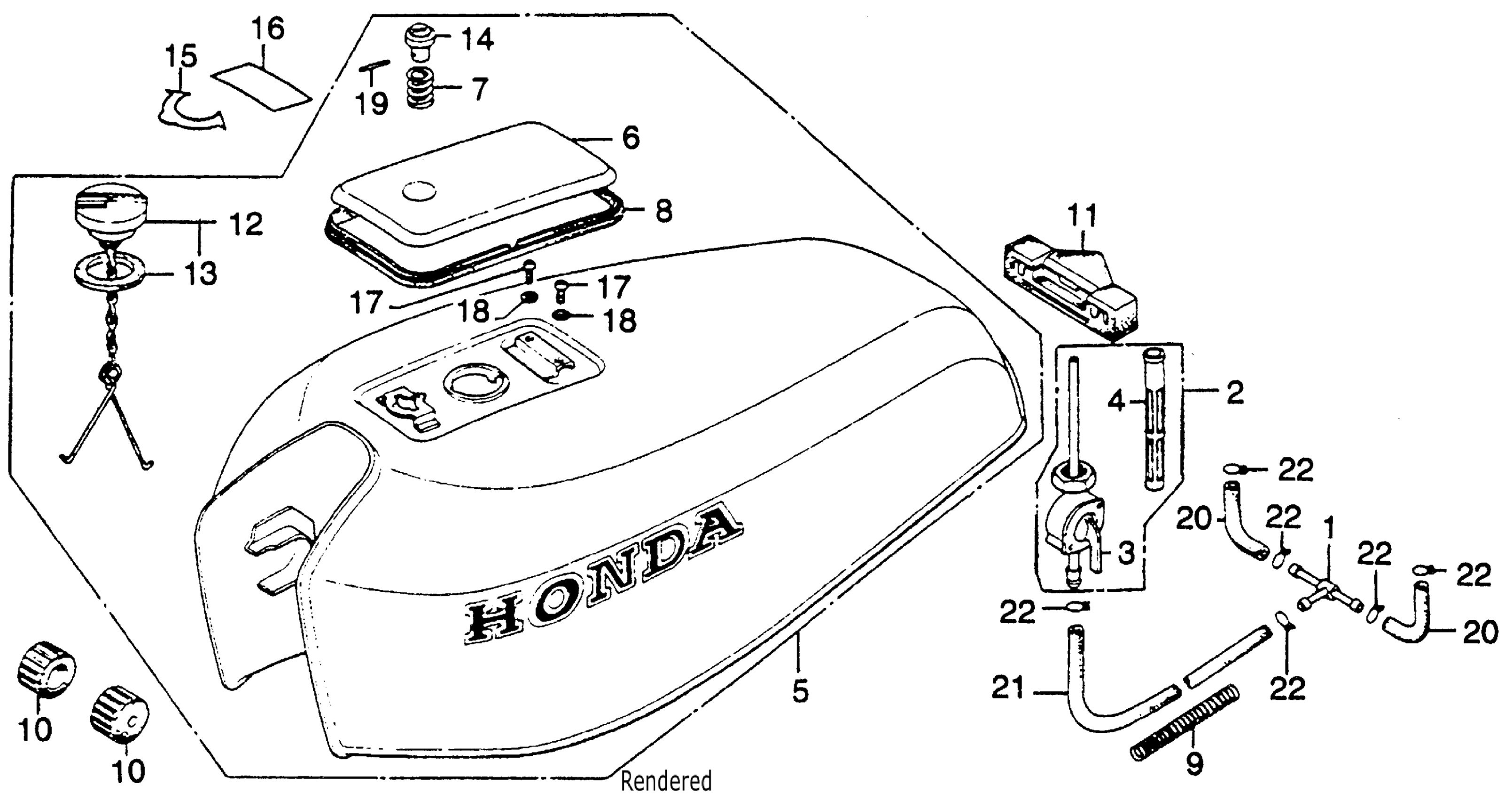

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 FUEL TANK Diagram

#

Description
Price

1

JOINT, FUEL

16235-657-000

$12.13

2

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-388-005.

16950-388-015

Unavailable

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-388-015

Unavailable

3

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-388-005.

16951-388-015

Unavailable

3

BODY, PETCOCK (NOT AVAILABLE)

16951-388-015

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16952-388-005.

16952-388-015

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-388-015

Unavailable

5

TANK ASSY., FUEL *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

17500-388-700ZA

Unavailable

6

LID, FUEL TANK *NH1* (BLACK) (NOT AVAILABLE)

17511-388-670ZD

Unavailable

7

SPRING B, FUEL TANK LID (NOT AVAILABLE)

17516-383-670

Unavailable

8

GASKET, FUEL TANK LID (NOT AVAILABLE)

17518-388-670

Unavailable

9

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

17531-346-000

Unavailable

10

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

10

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

11

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

12

CAP, FUEL FILLER (NOT AVAILABLE) This part replaces 17620-388-670.

17620-388-671

Unavailable

12

CAP, FUEL FILLER (NOT AVAILABLE)

17620-388-671

Unavailable

13

GASKET, FUEL FILLER CAP (NOT AVAILABLE) This part replaces 17682-383-670.

17682-383-671

Unavailable

13

GASKET, FUEL FILLER CAP (NOT AVAILABLE)

17682-383-671

Unavailable

14

PIN, FUEL TANK LID (NOT AVAILABLE)

83703-383-670

Unavailable

15

LABEL, FUEL TANK LID (NOT AVAILABLE)

87132-388-670

Unavailable

16

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

16

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

16

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

17

SCREW, PAN (4X6)

93500-04006-0A

$1.49

18

WASHER, SPRING (4MM)

94111-04000

$1.49

19

PIN, SPRING (2X18) (NOT AVAILABLE)

94305-20183

Unavailable

20

BULK HOSE, FUEL (5.5X3000) (5.5X100)

95001-55003-60M

$47.32

21

BULK HOSE, FUEL (5.5X3000) (5.5X240)

95001-55003-60M

$47.32

22

CLIP, TUBE (B10)

95002-02100

$1.90
