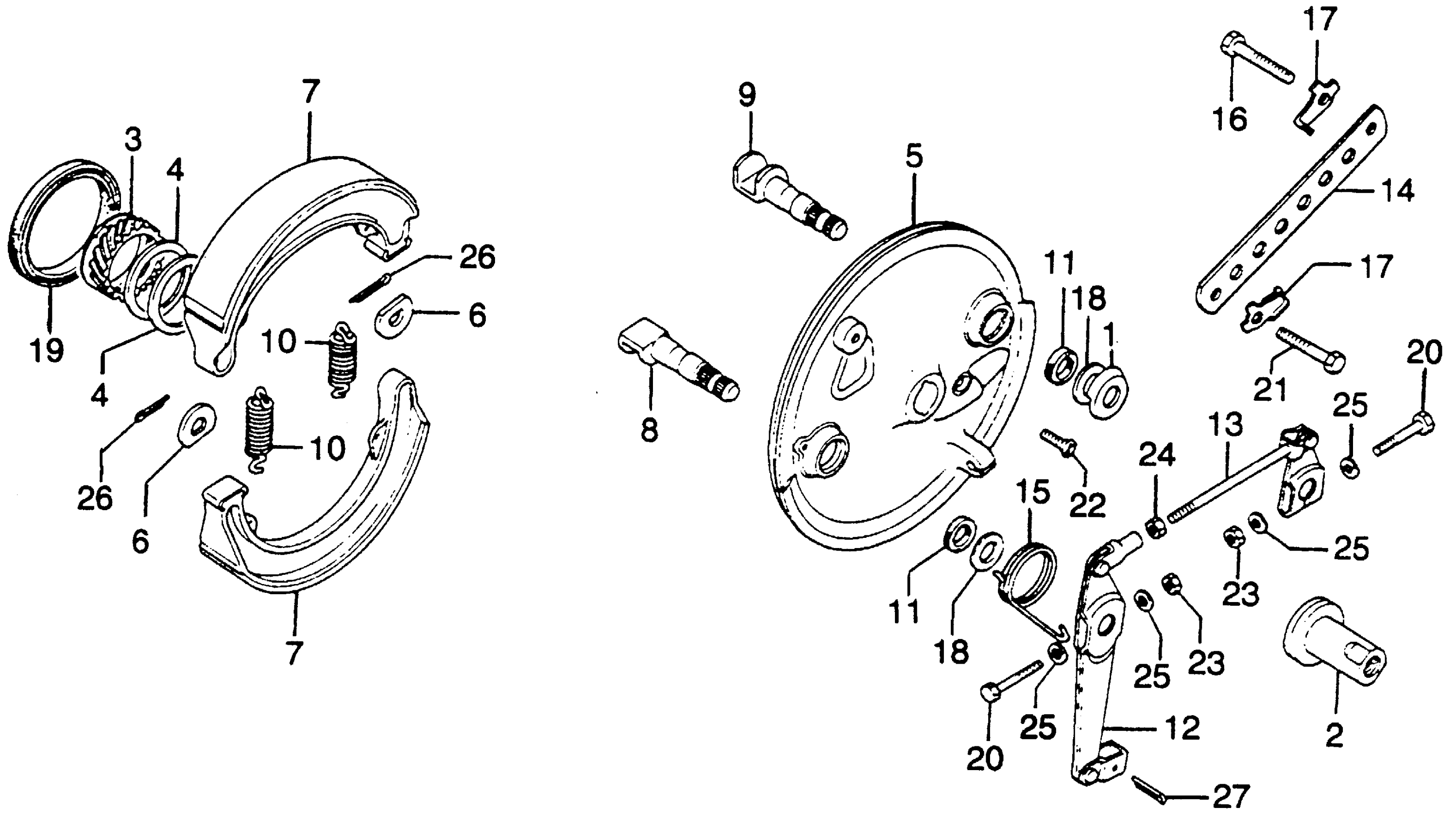

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06450-369-405

Unavailable

NI

SHOE SET, BRAKE This part replaces 451A2-369-670.

06450-369-405

Unavailable

1

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-369-000

Unavailable

2

SLEEVE, FR. WHEEL AXLE (NOT AVAILABLE)

44302-344-000

Unavailable

3

GEAR, SPEEDOMETER

44806-286-010

Unavailable

4

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-286-010

Unavailable

5

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-369-010

Unavailable

6

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

7

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-369-670

Unavailable

8

CAM A, FR. BRAKE (NOT AVAILABLE)

45131-369-000

Unavailable

9

CAM B, FR. BRAKE (NOT AVAILABLE)

45132-369-000

Unavailable

10

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-345-000

Unavailable

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

ARM, FR. BRAKE (NOT AVAILABLE)

45410-369-000

Unavailable

13

ARM, FR. BRAKE (NOT AVAILABLE)

45420-369-000

Unavailable

14

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-344-000

Unavailable

15

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45461-222-000

Unavailable

16

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90126-286-000

Unavailable

17

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE)

90533-286-000

Unavailable

18

WASHER (14MM)

90549-121-000

Unavailable

19

OIL SEAL (54X66X7) This part replaces 91251-230-000.

91251-230-003

$12.60

19

OIL SEAL (54X66X7)

91251-230-003

$12.60

20

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

20

BOLT, HEX. (6X35) This part replaces 92200-06036.

92201-06035-0A

$1.75

20

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

21

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

21

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

22

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

24

NUT, HEX. (6MM)

94002-06000-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

PIN, COTTER (2.0X15)

94201-20150

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, COTTER (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49
