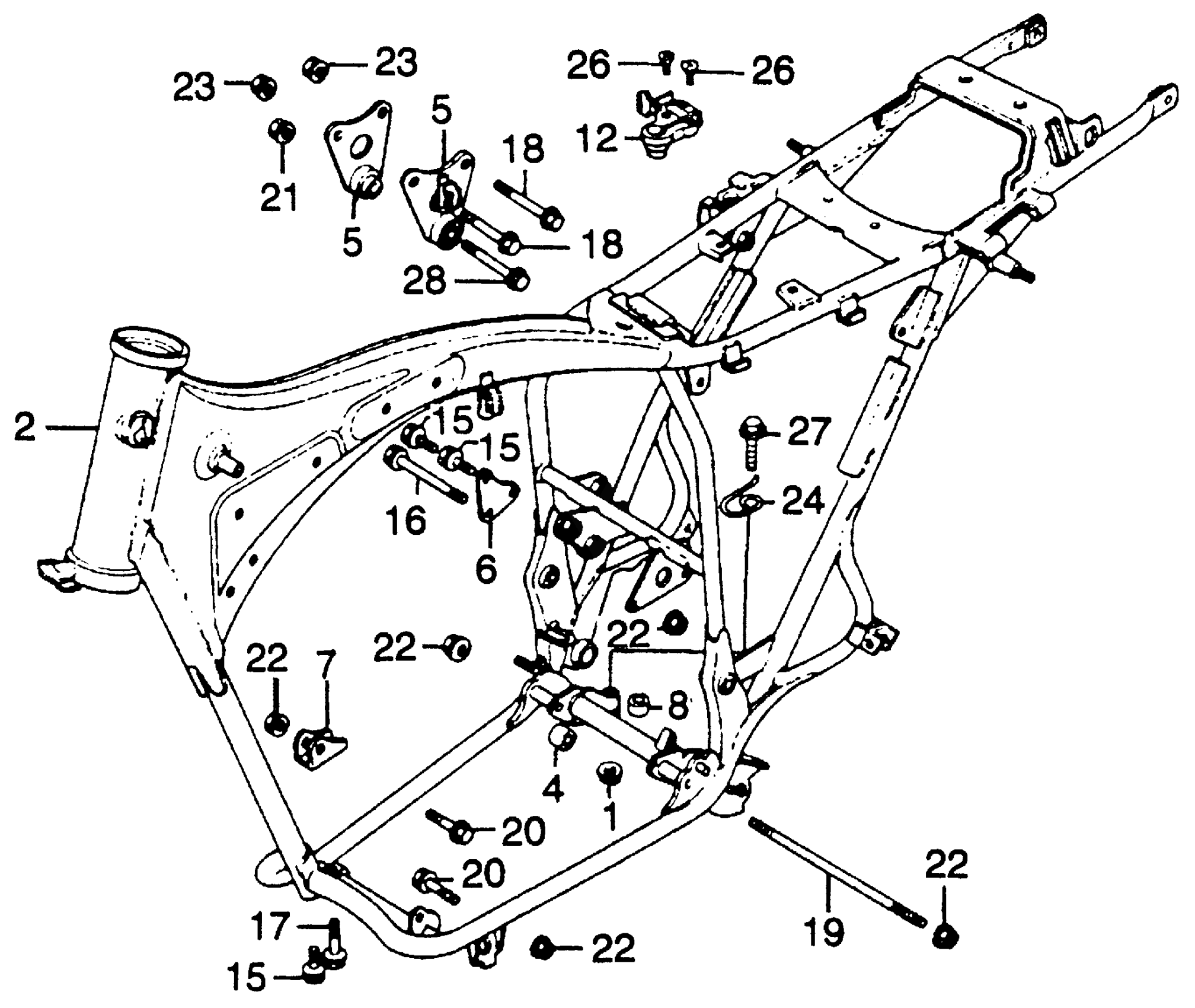

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 FRAME Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

FRAME *NH1* (BLACK)

50100-388-000ZA

Unavailable

4

COLLAR, ENGINE SIDE (NOT AVAILABLE)

50329-286-010

Unavailable

5

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK)

50354-369-000B

Unavailable

6

PLATE, ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50356-369-000B

Unavailable

7

HANGER, ENGINE (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

50357-369-000B

Unavailable

8

COLLAR (6X4)

52156-353-300

$6.32

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 2102240 This part replaces 77230-388-007.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 2102240 This part replaces 77230-388-017.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 2102240

77230-399-007

Unavailable

15

BOLT, UBS (8X14) (NOT AVAILABLE)

90101-369-000

Unavailable

16

BOLT, FLANGE (10X110) This part replaces 90102-356-000.

90105-MG3-000

$9.23

16

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

17

BOLT, UBS (8X45) This part replaces 90102-369-000.

90102-379-690

Unavailable

18

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

19

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)

90106-388-000

Unavailable

20

BOLT, UBS (10X45) (NOT AVAILABLE)

90108-369-000

Unavailable

21

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

21

NUT, FLANGE (8MM)

94050-08000

$1.49

22

NUT, HEX. (10MM)

90308-357-000

$4.85

23

NUT, HEX. (8MM)

90309-357-000

$3.40

24

GUIDE, BREATHER PIPE (NOT AVAILABLE)

90515-377-000

Unavailable

26

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

27

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

27

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

28

BOLT, FLANGE (8X85) This part replaces 95700-08085-00.

95701-08085-00

$2.48

28

BOLT, FLANGE (8X85)

95701-08085-00

$2.48
