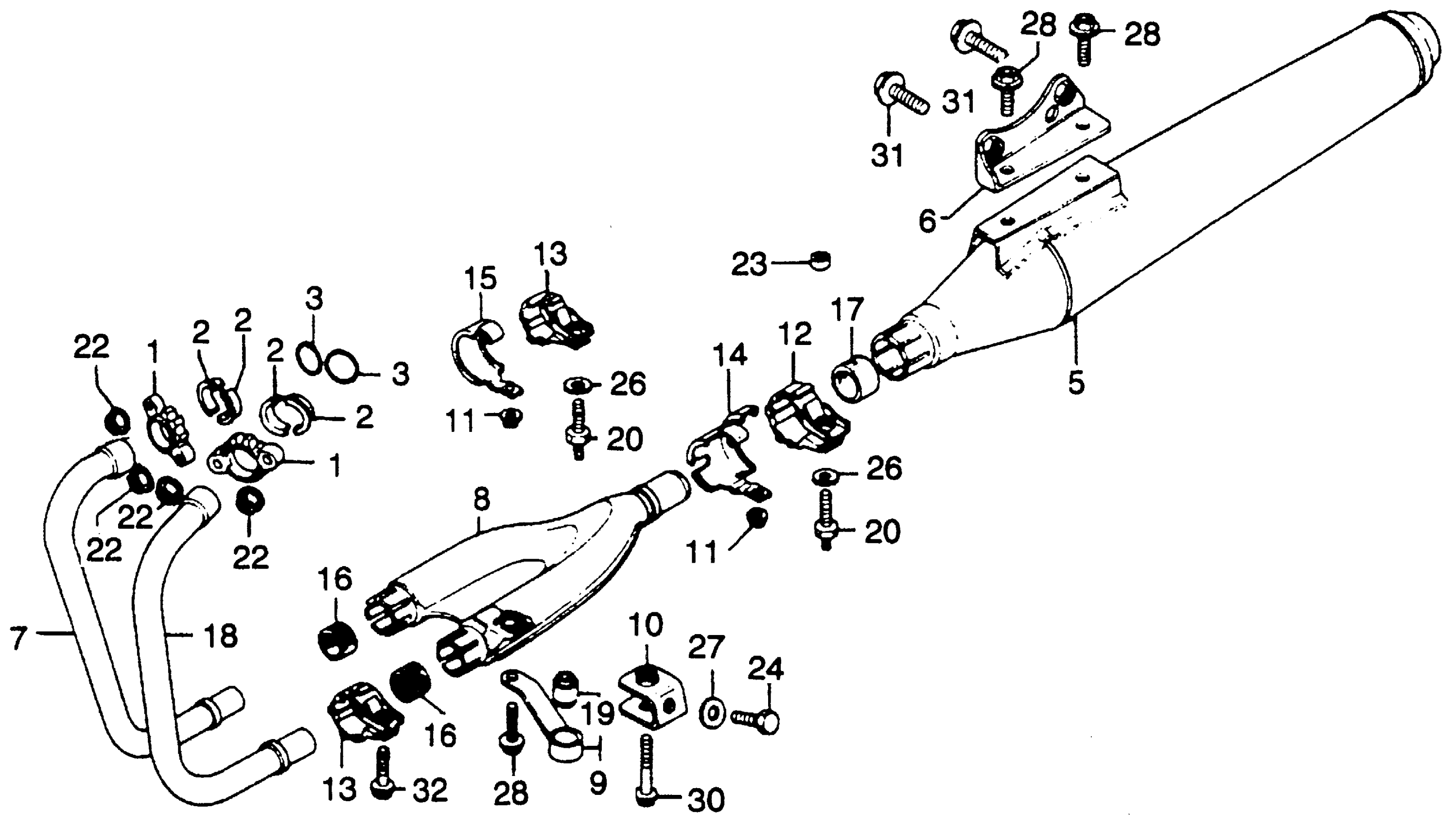

Honda CJ360TA (77) MOTORCYCLE, JPN, VIN# CJ360T-2100001 TO CJ360T-2103506 EXHAUST MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-369-000

Unavailable

2

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-388-000

Unavailable

3

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

3

GASKET, EX. PIPE

18291-286-306

$7.19

5

MUFFLER This part replaces 18310-388-000.

18310-403-405

Unavailable

6

BRACKET, MUFFLER *NH1* (BLACK)

18312-388-000ZA

Unavailable

7

PIPE, R. EX. (NOT AVAILABLE)

18320-388-000

Unavailable

8

CHAMBER, EX. PIPE (NOT AVAILABLE)

18341-388-000

Unavailable

9

DAMPER ASSY., EX. CHAMBER

18345-388-000

Unavailable

10

JOINT, EX. CHAMBER DAMPER

18347-388-000

Unavailable

11

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

11

NUT, FLANGE (6MM)

94050-06000

$1.49

12

BAND, MUFFLER

18371-388-000

$43.28

13

BAND, EX. PIPE (NOT AVAILABLE)

18372-388-000

Unavailable

14

PROTECTOR, MUFFLER BAND

18381-388-000

Unavailable

15

PROTECTOR, EX. PIPE BAND

18382-388-000

Unavailable

16

GASKET, MUFFLER This part replaces 18391-292-300.

18392-MK5-000

Unavailable

16

GASKET, MUFFLER

18392-MK5-000

Unavailable

17

GASKET, MUFFLER This part replaces 18391-390-000.

18391-390-405

Unavailable

18

PIPE, L. EX. (NOT AVAILABLE)

18420-388-000

Unavailable

19

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

50307-122-000

Unavailable

20

BOLT, BAND MOUNT (NOT AVAILABLE)

90105-388-000

Unavailable

22

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

NUT, SPECIAL (10MM) (NOT AVAILABLE)

90315-388-300

Unavailable

24

BOLT, HEX. (10X16) (NOT AVAILABLE)

92000-10016-0H

Unavailable

26

WASHER, PLAIN (10MM)

94101-10000

$1.49

27

WASHER, PLAIN (10MM)

94101-10800

$1.89

28

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

28

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

30

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

30

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

31

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

31

BOLT, FLANGE (10X20)

95701-10020-00

$2.23

32

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

32

BOLT, FLANGE (10X32)

95701-10032-00

$1.49
