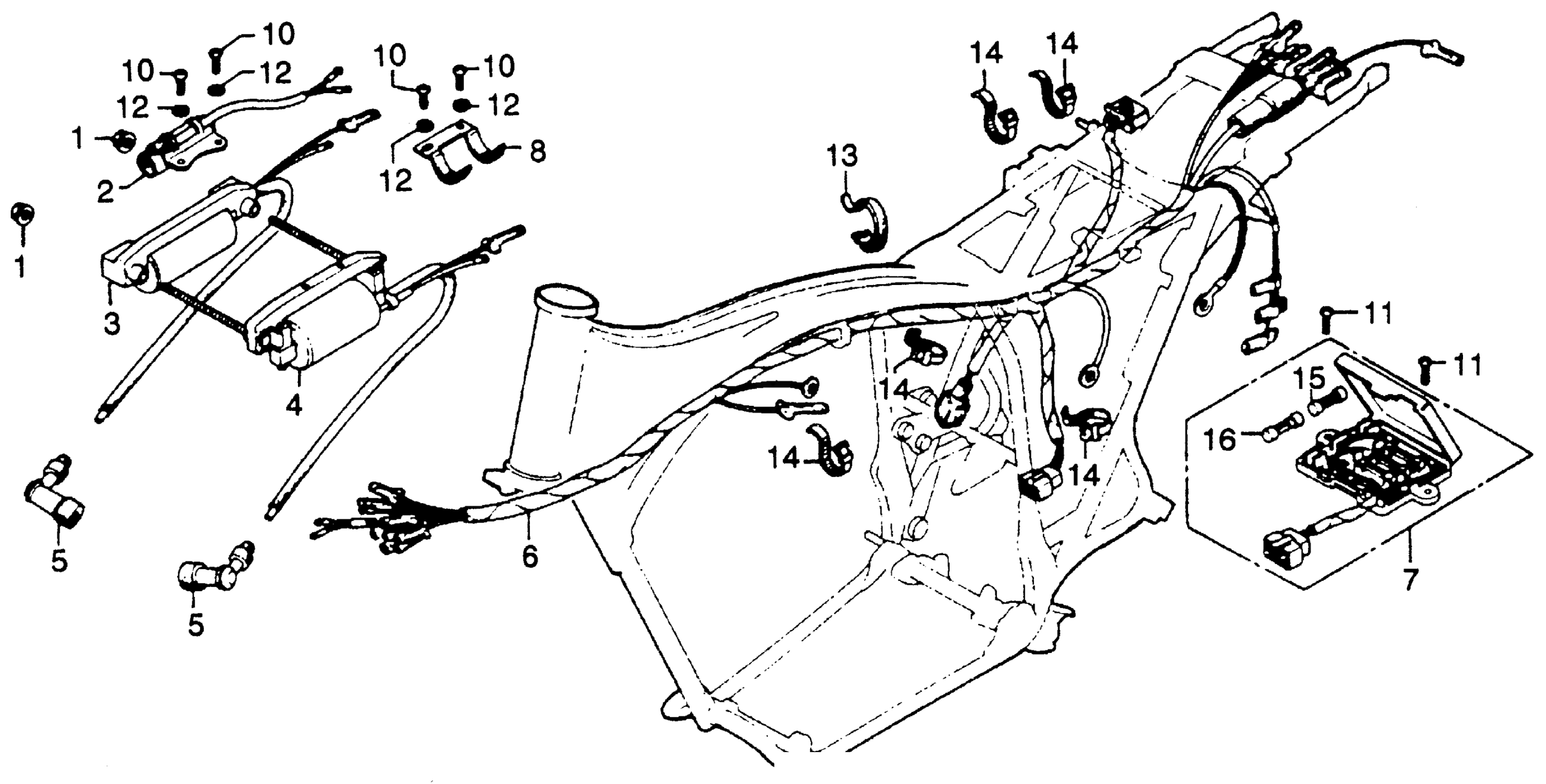

Honda CJ360TA (76) MOTORCYCLE, JPN, VIN# CJ360T-2000001 TO CJ360T-2013639 WIRE HARNESS Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CONDENSER (DENSO) This part replaces 30250-369-003.

30250-369-004

$35.45

2

CONDENSER (DENSO)

30250-369-004

$35.45

3

COIL ASSY., R. IGNITION (TOYO) (NOT AVAILABLE)

30510-369-003

Unavailable

3

COIL ASSY., R. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30510-369-004.

30510-369-003

Unavailable

4

COIL ASSY., L. IGNITION (TOYO) (NOT AVAILABLE)

30520-369-003

Unavailable

4

COIL ASSY., L. IGNITION (TOYO) (NOT AVAILABLE) This part replaces 30520-369-004.

30520-369-003

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

6

WIRE HARNESS

32100-388-670

Unavailable

7

BOX ASSY., FUSE This part replaces 32110-369-013.

321W1-369-013

Unavailable

8

CLAMP, WIRE HARNESS CONNECTING (NOT AVAILABLE)

32165-369-000

Unavailable

10

SCREW, PAN (5X12)

93500-05012-0H

$1.49

11

SCREW, PAN (5X16)

93500-05016-0A

$1.49

12

WASHER, SPRING (5MM)

94111-05000

$1.49

13

BAND A3, CABLE

95014-61300

$1.97

14

BAND B2, CABLE HARNESS

95014-62200

$2.11

15

FUSE A (7A)

98200-10700

$1.49

16

FUSE A (15A)

98200-11500

$1.49
