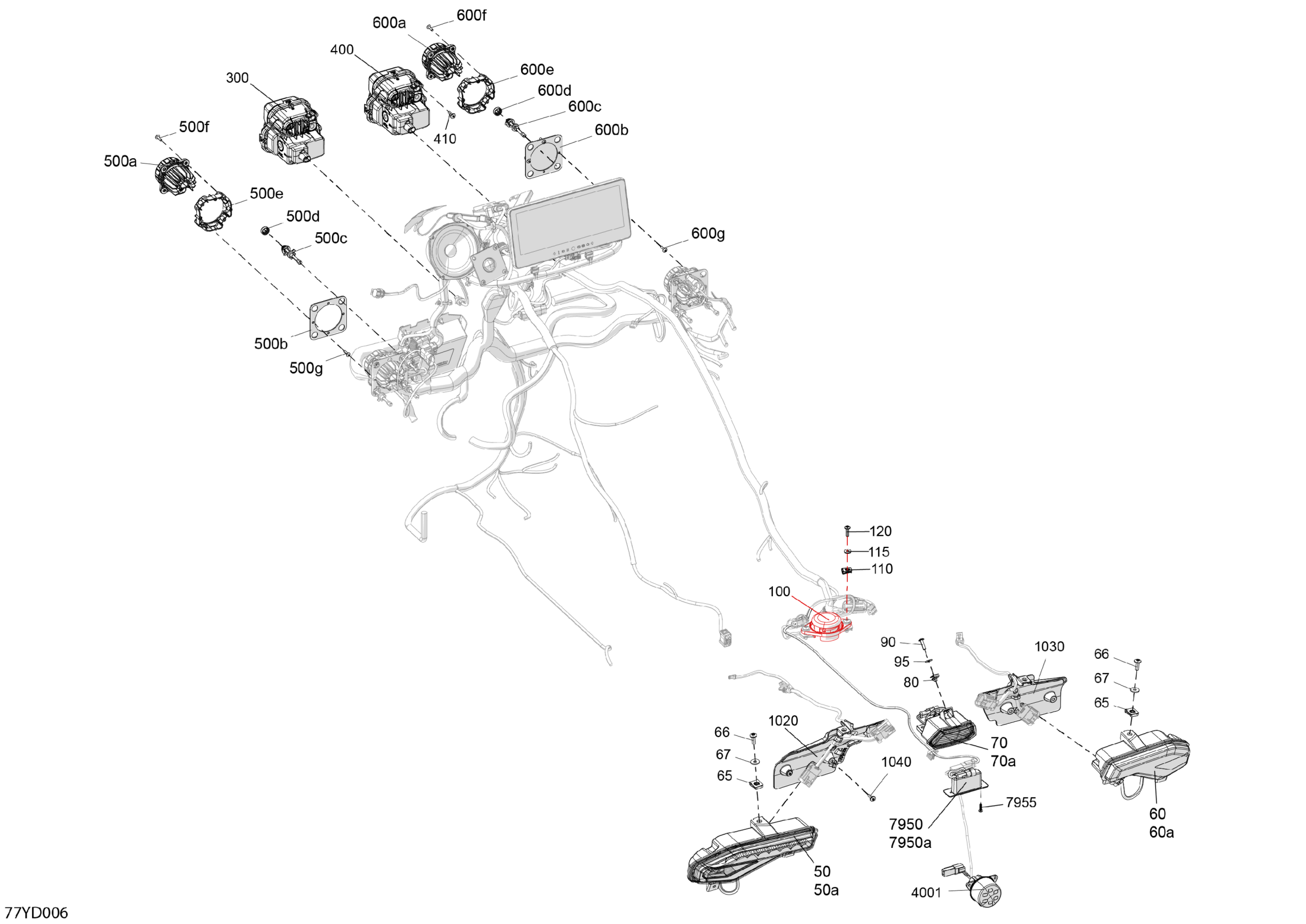

Can-Am China - F3 T - H6RD - T - White Pearl, 2024 Electric - Vehicle Lighting Diagram

#

Description
Price

50

LH Tail Light | Includes 0k to 0k1

710007002

$158.99

50a

Flasher Bulb

219800304

$6.66

60

RH Tail Light | Includes 0m to 0m1

710007004

$158.99

60a

Flasher Bulb

219800304

$6.66

65

Panel Nut M6 X 1.0

250100208

$1.46

66

Torx Screw M6 X 20

250000722

$1.68

67

Flat washer M6

250200164

$1.01

70

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

70a

Bulb 12V 10W

219800322

$8.68

80

Panel Nut M5 X 0.8

250000958

$4.23

90

Torx Truss Screw M5 X 20

250000715

$2.11

95

Stainless Steel Flat Washer M5

234052670

$1.01

100

Passenger Detection Switch

710008103

$76.99

110

Panel Nut M6 X 1.0

250100208

$1.46

115

Stainless Steel Flat Washer

234062670

$2.11

120

Torx Truss Screw M6 X 25

250000807

$2.11

300

Front Headlight

710008694

$349.99

400

Front Headlight

710008694

$349.99

410

Torx Screw K50 X 16

250000720

$1.69

500a

Low Beam Ass'y

710006007

$349.99

500b

Headlight Support

710007188

$15.49

500c

Adjustment Screw

710007200

$10.27

500d

Clip

293730095

$1.68

500e

Adapter

710007189

$3.59

500f

Torx-Truss Pt K40 X 16

250000759

$2.11

500g

Torx-Truss Pt K40 X 16

250000759

$2.11

600a

Low Beam Ass'y

710006007

$349.99

600b

Headlight Support

710007188

$15.49

600c

Adjustment Screw

710007200

$10.27

600d

Clip

293730095

$1.68

600e

Adapter

710007189

$3.59

600f

Torx-Truss Pt K40 X 16

250000759

$2.11

600g

Torx-Truss Pt K40 X 16

250000759

$2.11

1020

LH Connector Support

710004643

$12.99

1030

RH Connector Support

710004644

$11.49

1040

Torx Screw K50 X 16

250000720

$1.69

4001

Fog Light Rear

710007018

$193.49

7950

License Light | Includes 0an to 0an1

710001451

$76.49

7950a

Bulb

219800128

$2.46

7955

Hex. Flange Screw K40 X 16

250001123

$2.11
