Description

Price

100a

LH Trim Box

708301859

$4.49

100b

RH Trim Box

708301860

$4.49

100c

Trim Box Double Face Tape

704905469

$3.69

100d

Vegas White, LH Trunk Cover

708301917

$459.99

100f

Vegas White, RH Trunk Cover

708301922

$459.99

100g

Amber, Lateral Reflector

705002423

$15.49

100h1

Rear Fender

708301584

$204.99

100j

Rear Fender Extention

708301747

$204.99

100k

Tuflock Phillips Plastic Screw

414745900

$1.69

100m

Neoprene Seal, 150 MM

293250385

$3.39

100n

Seal 1000Mm Long

219704373

$8.26

100p

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100p2

Striker Cover

708303255

$6.89

100p3

Hex. Forming Screw M5 X 16

210251650

$1.15

100q

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100r

Panel Nut M6 X 1.0

250100208

$1.46

100s

Torx Screw M6 X 20

250000722

$1.68

100t

Female Hinge

708302044

$11.49

100u

Retaining Plate

708302046

$13.49

100v

Torx Truss PT K40 x 12

250001131

$2.11

100w

Wheel Arch Protector

708304879

$47.99

100x

Stainless Steel Flat Washer

234062670

$2.11

100y

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100z

Tuflok Plastic Rivet

293150230

$1.47

100aa

Neoprene Seal, 150 MM

293250385

$3.39

100ab

Panel Nut M6 X 1.0

250100208

$1.46

100ac

Tuflok Plastic Rivet

293150230

$1.47

100ad

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ad2

Striker Cover

708303255

$6.89

100ad3

Hex. Forming Screw M5 X 16

210251650

$1.15

100af

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ag

Panel Nut M6 X 1.0

250100208

$1.46

100ah

Torx Screw M6 X 20

250000722

$1.68

100aj

Female Hinge

708302044

$11.49

100ak

Retaining Plate

708302046

$13.49

100am

Torx Truss PT K40 x 12

250001131

$2.11

100an

Electronic Component Support

708302571

$23.99

100ap

Tuflok Plastic Rivet

293150230

$1.47

100aq

Rear Fog Light Support

719000069

$61.99

100ar

Rear Fog Light Guard

719000067

$13.22

100as

Socket Head Screw M5 X 25

205052588

$1.90

100at

Hex. Nut M5

232051600

$1.15

100au

Edge Clip

517302785

$0.88

100av

Flat Washer M5

234051670

$2.11

100aw

Torx Truss Screw M6 X 20

250000350

$5.29

100ax

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100ay

LH Cargo

708302404

$94.99

100az

Panel Nut M6 X 1.0

250100208

$1.46

100ba

Torx Screw M6 X 20

250000722

$1.68

100bb

Stainless Steel Flat Washer

234062670

$2.11

100bc

Retaining Plate

708302046

$13.49

100bd

Torx Truss PT K40 x 12

250001131

$2.11

100bf

Male Hinge

708302045

$11.49

100bg

LH Latch Assembly

708301794

$154.99

100bh

Torx Screw M6 X 20

250000722

$1.68

100bj

Connector Holder

710002033

$3.39

100bk

LH Control

708301222

$43.99

100bm

Panel Nut M6 X 1.0

250100198

$2.11

100bn

Torx Screw M6 X 20

250000722

$1.68

100bp

Trim 3000Mm Long

219704540

$109.99

100bq

LH Cargo Fairing

708302401

$78.99

100br

Torx Screw K50 X 16

250000720

$1.69

100bt

Retainer Cable

708300385

$38.99

100bu

Screw PT Type K-50 X 16

250000959

$2.11

100bv

LH Light Support

708302283

$49.99

100bw

Brace

708302284

$12.99

100bx

Tuflok Plastic Rivet

293150230

$1.47

100by

Panel Nut M6 X 1.0

250100198

$2.11

100bz

Torx Screw M6 X 20

250000722

$1.68

100ca

Stainless Steel Flat Washer

234062670

$2.11

100cb

Torx Screw K50 X 16

250000720

$1.69

100cc

Rubber Bumper

293830005

$8.09

100cd

RH Cargo

708302405

$94.99

100cf

Panel Nut M6 X 1.0

250100208

$1.46

100cg

Torx Screw M6 X 20

250000722

$1.68

100ch

Stainless Steel Flat Washer

234062670

$2.11

100cj

Retaining Plate

708302046

$13.49

100ck

Torx Truss PT K40 x 12

250001131

$2.11

100cm

Male Hinge

708302045

$11.49

100cn

RH Latch Assembly

708301795

$154.99

100cp

Torx Screw M6 X 20

250000722

$1.68

100cq

Connector Holder

710002033

$3.39

100cr

RH Control

708301697

$43.99

100cs

Panel Nut M6 X 1.0

250100198

$2.11

100ct

Torx Screw M6 X 20

250000722

$1.68

100cu

Trim 3000Mm Long

219704540

$109.99

100cv

RH Cargo Fairing

708302402

$78.99

100cw

Torx Screw K50 X 16

250000720

$1.69

100cx

Antena Cap

708301805

$3.89

100cy

Retainer Cable

708300385

$38.99

100cz

Screw PT Type K-50 X 16

250000959

$2.11

100da

RH Light Support

708302285

$49.99

100db

Brace

708302284

$12.99

100dc

Tuflok Plastic Rivet

293150230

$1.47

100dd

Panel Nut M6 X 1.0

250100198

$2.11

100df

Torx Screw M6 X 20

250000722

$1.68

100dg

Stainless Steel Flat Washer

234062670

$2.11

100dh

Torx Screw K50 X 16

250000720

$1.69

100dj

Rubber Bumper

293830005

$8.09

100dk

Heat Shield

705016875

$47.99

100dm

Edge Clip

517302785

$0.88

100dn

Tuflok Plastic Rivet

293150230

$1.47

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Retaining Cable Ass'y

708003616

$22.99

905f

Tuflok Plastic Rivet

293150230

$1.47

905g

Torx Truss Screw M6 X 20

250000350

$5.29

905h

Flat Washer M6, Stainless

234062600

$0.77

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

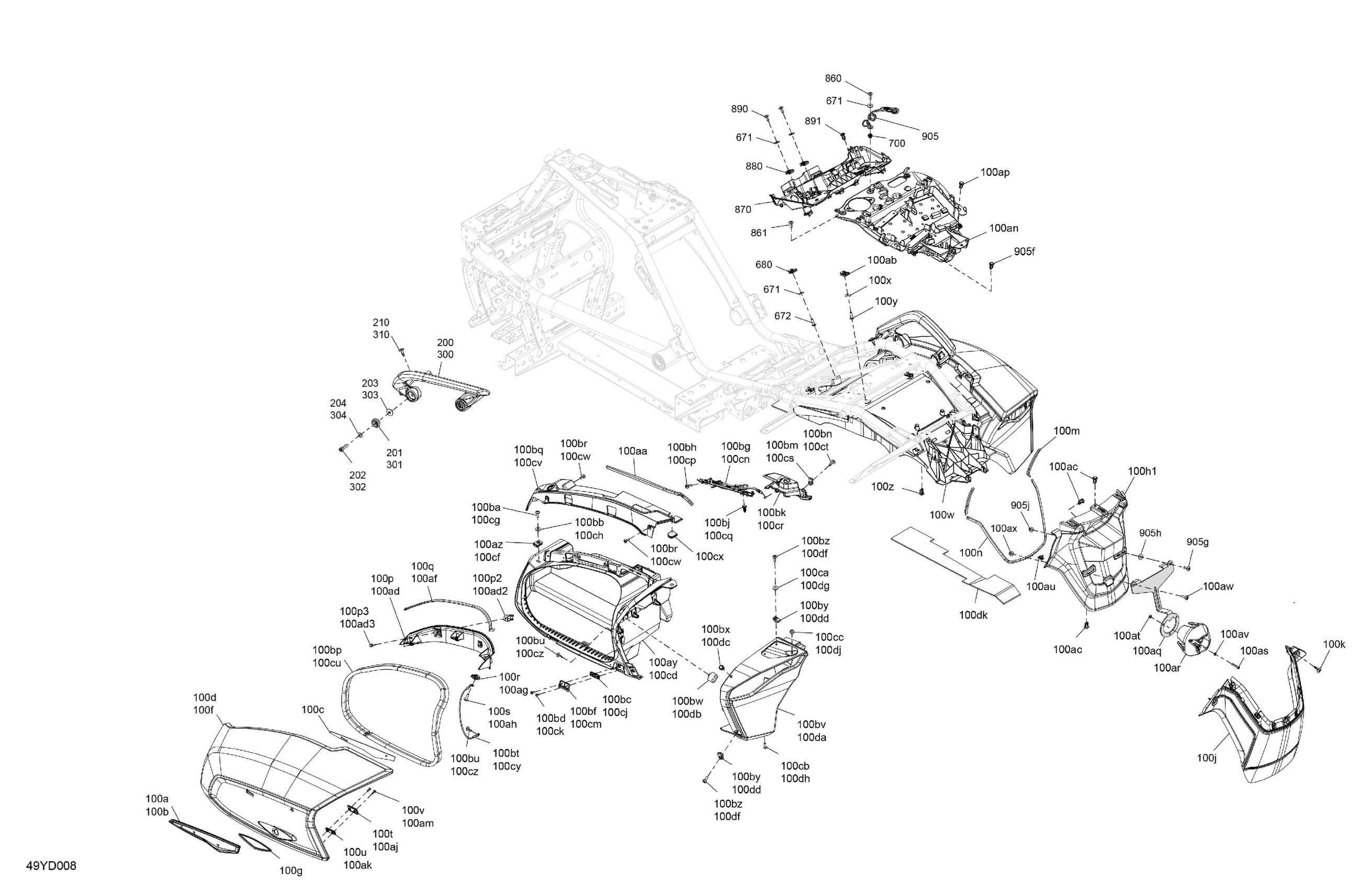

Can-Am China - F3 T - H6RD - T - White Pearl, 2024 Body - Cargo Diagram

LH Trim Box

RH Trim Box

Trim Box Double Face Tape

Vegas White, LH Trunk Cover

Vegas White, RH Trunk Cover

Amber, Lateral Reflector

Rear Fender

Rear Fender Extention

Tuflock Phillips Plastic Screw

Neoprene Seal, 150 MM

Seal 1000Mm Long

LH Inner Cover | Included 100s to 100s3

Striker Cover

Hex. Forming Screw M5 X 16

Gasket, Neoprene 2000Mm Long

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Female Hinge

Retaining Plate

Torx Truss PT K40 x 12

Wheel Arch Protector

Stainless Steel Flat Washer

Torx Screw M6 X 20, Scotch Grip

Tuflok Plastic Rivet

Neoprene Seal, 150 MM

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

RH Inner Cover | Included 100ah to 100ah3

Striker Cover

Hex. Forming Screw M5 X 16

Gasket, Neoprene 2000Mm Long

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Female Hinge

Retaining Plate

Torx Truss PT K40 x 12

Electronic Component Support

Tuflok Plastic Rivet

Rear Fog Light Support

Rear Fog Light Guard

Socket Head Screw M5 X 25

Hex. Nut M5

Edge Clip

Flat Washer M5

Torx Truss Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

LH Cargo

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Retaining Plate

Torx Truss PT K40 x 12

Male Hinge

LH Latch Assembly

Torx Screw M6 X 20

Connector Holder

LH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Trim 3000Mm Long

LH Cargo Fairing

Torx Screw K50 X 16

Retainer Cable

Screw PT Type K-50 X 16

LH Light Support

Brace

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw K50 X 16

Rubber Bumper

RH Cargo

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Retaining Plate

Torx Truss PT K40 x 12

Male Hinge
