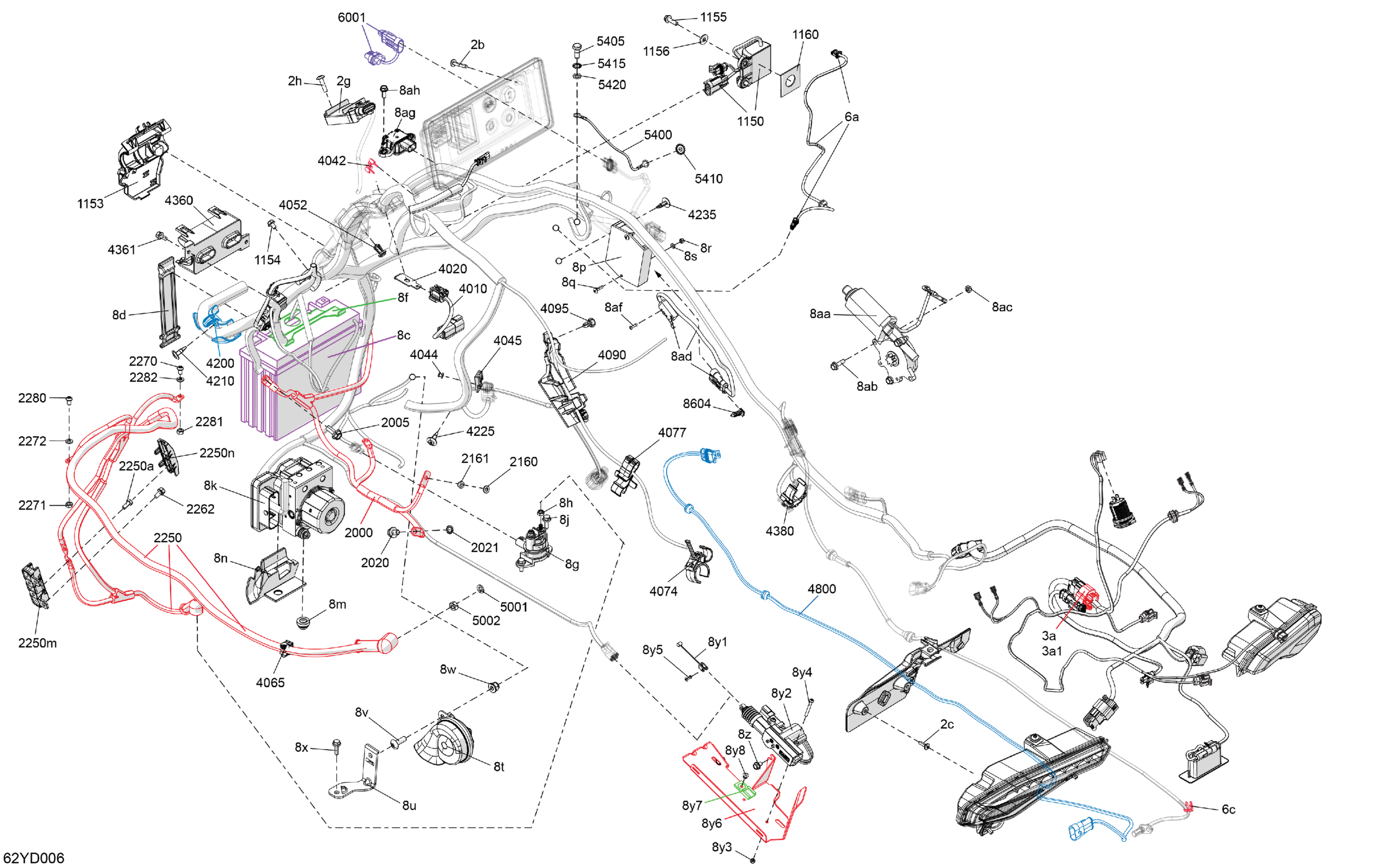

Can-Am China - F3 SPORT - E6RE- SPORT - Monolith Black, 2024 Electric - System Diagram

#

Description
Price

2b

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

2c

Torx Screw K50 X 16

250000720

$1.69

2d&a

Halogen Bulb

415129249

$41.49

2f&a

Halogen Bulb

415129249

$41.49

2g

External Module GPS

278004172

$189.99

2h

Torx Screw K50 X 35

250001111

$14.49

3a

Connector With Plug | Includes 3a to 3a1

710007727

$12.71

3a1

Cap

710001225

$9.19

6a

Wiring Harness

710009557

$17.49

6c

Cable Support

710004279

$4.19

8c

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$142.98

8c1

Battery Bolt Kit | Not Shown

219800542

$7.51

8d

Latch

520000528

$7.69

8f

Battery Holder

710002893

$17.49

8g

Starter Relay

278003012

$42.49

8h

Hex. Elastic Stop Nut M6

232561600

$1.15

8j

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8k

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

8m

Shock Damper

710003279

$10.49

8n

VCM Harness Protector

710003996

$2.79

8p

PBM Module Ass'y

710008602

$459.99

8q

Torx Screw M4 X 16

250000750

$1.68

8r

Elastic Stop Nut M4

232541484

$0.74

8s

Flat Washer 4 mm

234041480

$0.74

8t

Horn

710004940

$29.49

8u

Horn Support

710005769

$15.99

8v

Torx Truss M8 X 25

250000874

$2.11

8w

Hex. Flange Elastic Nut M8

233281414

$1.47

8x

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8y1

Reverse Cable

710002889

$31.99

8y2

Actuator

710011269

$64.99

8y3

Elastic Stop Nut M4

232541414

$0.58

8y4

Socket Head Screw M4 X 40

205444056

$2.11

8y5

Pop Rivet 5/32

390403000

$0.40

8y6

Reverse Actuator Support

710005642

$30.99

8y7

Clip

270000141

$11.49

8y8

Pop Rivet 3/16"

390402400

$0.35

8z

Hex. Flange Screw M6 X 12

210261250

$1.90

8aa

Actuator Motor

710007256

$227.99

8ab

Hex. Flange Screw M6 X 20

207662054

$1.01

8ac

Elastic Stop Nut M6

232561434

$1.99

8ad

Brake Pressure Switch Ass'y

710001379

$43.49

8af

Pop Rivet

293150150

$2.40

8ag

Yaw Rate Sensor

710005658

$179.99

8ah

Hex. Flange Screw M6 X 16

210261650

$1.67

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$99.99

2250a

Hex. Screw M6 X 14

207161444

$0.58

2250b

Protector Cap

710000393

$9.59

2250j

Battery Guard

710002945

$12.99

2250m

Fuse Holder Support

710008098

$23.99

2250n

Fuse Holder Cover

710008154

$43.49

2250p

Fuse 80 A

710008102

$15.87

2262

Hex. Flange Screw M6 X 12

210261250

$1.90

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

4010

Diagnostic Harness

710006986

$25.99

4020

Connector Support

710007232

$16.99

4042

Lock

710001222

$2.09

4044

Pop Rivet 3/16"

390402400

$0.35

4045

Clip

270000141

$11.49

4052

Tuflok Plastic Rivet

293150230

$1.47

4065

Support Cable

293750083

$2.29

4068

Tie Rap | Not Shown

710004947

$8.68

4074

Support

710004613

$8.29

4077

Wire Support

710004669

$6.79

4090

Harness Holder

710004794

$3.39

4095

Tuflok Plastic Rivet

293150230

$1.47

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4220

Tie Rap

710004424

$6.29

4225

Tuflock Phillips Plastic Screw

414745900

$1.69

4230

Tie Rap

710004424

$6.29

4235

Tuflock Phillips Plastic Screw

414745900

$1.69

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4380

Cable Support

710004299

$4.19

4800

Fog Light Harness

710006985

$54.99

4810

Connector With Cap

710004456

$12.49

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

6001

Wiring Harness Adaptor

710007190

$20.99

8604

Connector Holder

710002033

$3.39
