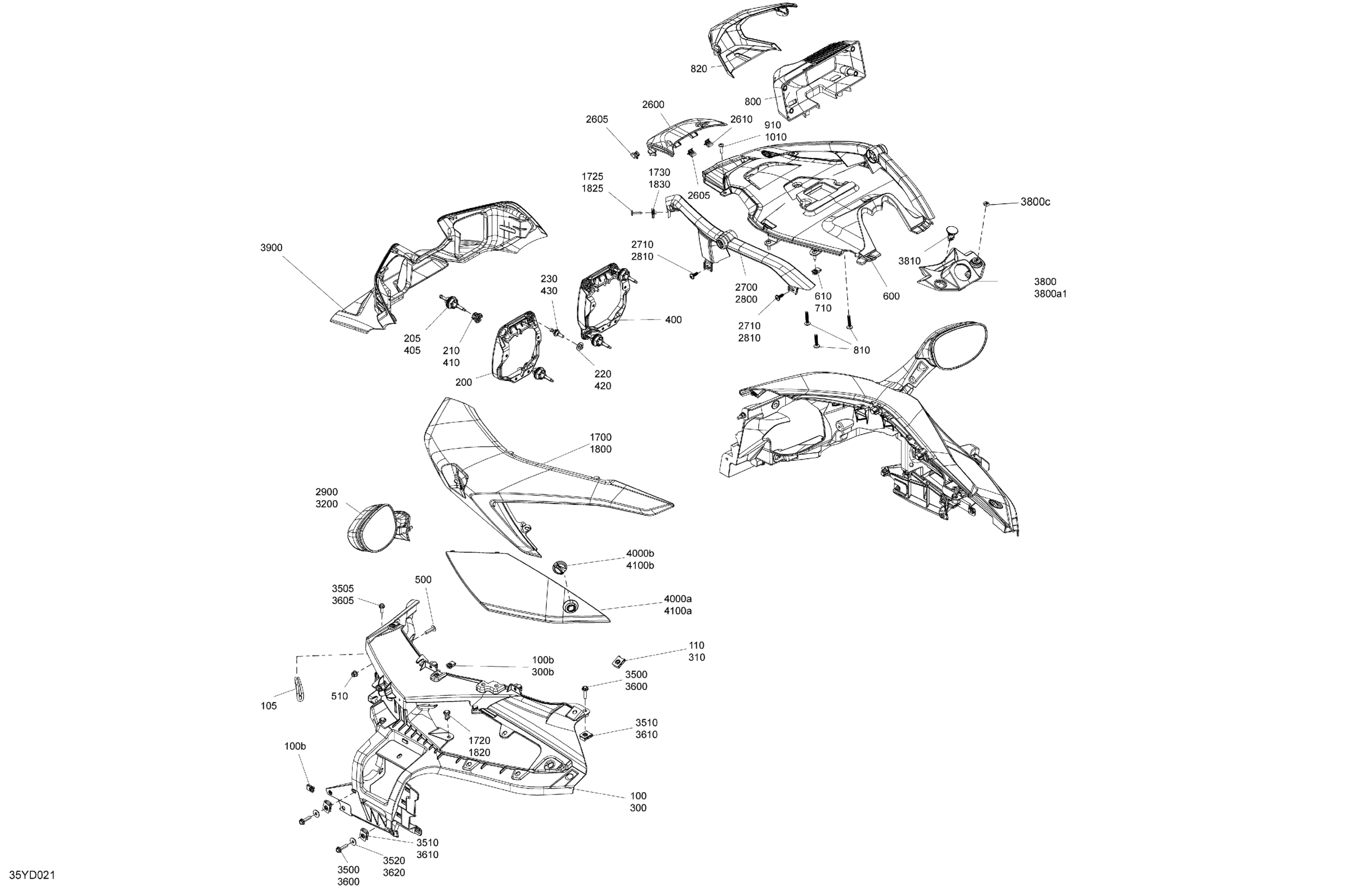

Can-Am China - F3 SPORT - E6RE- SPORT - Monolith Black, 2024 Body - Console Diagram

#

Description
Price

100

LH Console Support Ass'y | Includes 100 to 100b

708400730

$100.00

100b

Panel Nut M5 X 0.8

250000958

$3.48

105

Trim 1000Mm Long

219704354

$14.74

110

Panel Nut M6 X 1.0

250100208

$1.07

200

LH Front Headlight Support

708400748

$6.00

205

Adjuster

708400814

$11.00

210

Retaining Ring

708400823

Unavailable

220

Large Shoulder Nut M6

705014119

$6.00

230

Ball Stud

705018616

$19.00

300

RH Console Support Ass'y | Includes 300 to 300b

708400731

$110.00

300b

Panel Nut M5 X 0.8

250000958

$3.48

310

Panel Nut M6 X 1.0

250100208

$1.07

400

RH Front Headlight Support

708400749

$6.00

405

Adjuster

708400814

$11.00

410

Retaining Ring

708400823

Unavailable

420

Large Shoulder Nut M6

705014119

$6.00

430

Ball Stud

705018616

$19.00

500

Torx Screw M6 X 25

250000758

$1.74

510

Hex. Flange Elastic Nut M6

233261494

$1.26

600

Upper Fairing

708400743

$34.00

610

Panel Nut M5 X 0.8

250000958

$3.48

710

Panel Nut M5 X 0.8

250000958

$3.48

800

Gauge Support

708400755

$21.00

810

Screw PT K60 X 30

250000949

$1.74

820

Support Trim

708400758

$44.00

910

Torx Screw M5 X 20

250000724

$1.39

1010

Torx Screw M5 X 20

250000724

$1.39

1700

Deep Black, LH Console Fairing

708400958

$225.00

1720

Tuflok Plastic Rivet

293150230

$1.21

1725

Torx Screw M5 X 20

250000724

$1.39

1730

Panel Nut M5 X 0.8

250000958

$3.48

1800

Deep Black, RH Console Fairing

708400959

$225.00

1820

Tuflok Plastic Rivet

293150230

$1.21

1825

Torx Screw M5 X 20

250000724

$1.39

1830

Panel Nut M5 X 0.8

250000958

$3.48

2600

Deep Black, Front Fairing

708400826

$230.00

2605

Edge Clip

517302785

$0.70

2610

Edge Clip

517302785

$0.70

2700

LH Cross Member

708400741

$29.00

2710

Oval Head Torx Screw K60 X 16

250000546

$1.74

2800

RH Cross Member

708400742

$29.00

2810

Oval Head Torx Screw K60 X 16

250000546

$1.74

2900

LH Housing Rear View Mirror Ass'y

705015049

$275.00

3200

RH Housing Rear View Mirror Ass'y

705015050

$275.00

3500

Hex. Flange Screw M6 X 25

250000793

$1.74

3505

Hex. Flange Screw M6 X 16

210261650

$1.22

3510

Panel Nut M6 X 1.0

250100208

$1.07

3520

Flat washer M6

250200164

$0.83

3600

Hex. Flange Screw M6 X 25

250000793

$1.74

3605

Hex. Flange Screw M6 X 16

210261650

$1.22

3610

Panel Nut M6 X 1.0

250100208

$1.07

3620

Flat washer M6

250200164

$0.83

3800

Switch Trim Ass'y | Includes 3800 to 3800c

708400863

$105.00

3800a1

Switch Bezel

708400205

$15.00

3800c

Rear Fog Light Decal

704908774

$48.00

3810

Switch Plug

708400866

$4.00

3900

Front Access Cover

705017970

$34.00

4000a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

4000b

Cover Latch Quarter Turn

708400065

$2.99

4100a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

4100b

Cover Latch Quarter Turn

708400065

$2.99
