Partiron

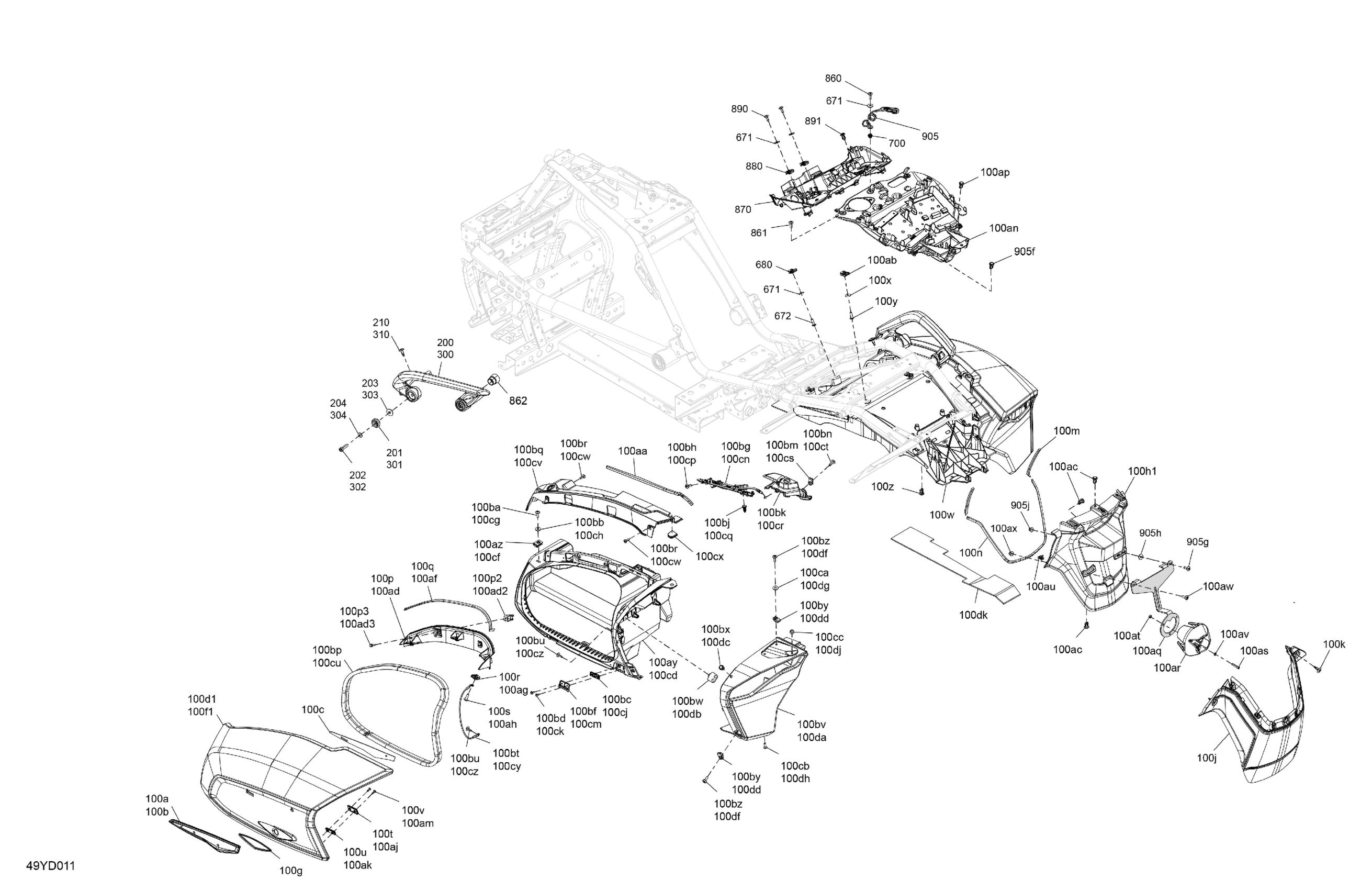

Can-Am China - F3 LIMITED - Special Edition - H7RD - LIMITED - Cognac, 2024 Body - Cargo Diagram

#

Description
Price

100a

LH Moulding

708301839

$129.99

100b

RH Moulding

708301840

$129.99

100c

Trim Box Double Face Tape

704905469

$3.69

100d1

Bare, LH Trunk Cover | Includes 100d1 to 100d1a

708301214

$139.99

100f1

Bare, RH Trunk Cover

708301215

$139.99

100g

Amber, Lateral Reflector

705002423

$15.49

100h1

Rear Fender

708301584

$204.99

100j

Rear Fender Extention

708301747

$204.99

100k

Tuflock Phillips Plastic Screw

414745900

$1.69

100m

Neoprene Seal, 150 MM

293250385

$3.39

100n

Seal 1000Mm Long

219704373

$8.26

100p

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100p2

Striker Cover

708303255

$6.89

100p3

Hex. Forming Screw M5 X 16

210251650

$1.15

100q

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100r

Panel Nut M6 X 1.0

250100208

$1.46

100s

Torx Screw M6 X 20

250000722

$1.68

100t

Female Hinge

708302044

$11.49

100u

Retaining Plate

708302046

$13.49

100v

Torx Truss PT K40 x 12

250001131

$2.11

100w

Wheel Arch Protector

708304879

$47.99

100x

Stainless Steel Flat Washer

234062670

$2.11

100y

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100z

Tuflok Plastic Rivet

293150230

$1.47

100aa

Neoprene Seal, 150 MM

293250385

$3.39

100ab

Panel Nut M6 X 1.0

250100208

$1.46

100ac

Tuflok Plastic Rivet

293150230

$1.47

100ad

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ad2

Striker Cover

708303255

$6.89

100ad3

Hex. Forming Screw M5 X 16

210251650

$1.15

100af

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ag

Panel Nut M6 X 1.0

250100208

$1.46

100ah

Torx Screw M6 X 20

250000722

$1.68

100aj

Female Hinge

708302044

$11.49

100ak

Retaining Plate

708302046

$13.49

100am

Torx Truss PT K40 x 12

250001131

$2.11

100an

Electronic Component Support

708302571

$23.99

100ap

Tuflok Plastic Rivet

293150230

$1.47

100aq

Rear Fog Light Support

719000069

$61.99

100ar

Rear Fog Light Guard

719000067

$13.22

100as

Socket Head Screw M5 X 25

205052588

$1.90

100at

Hex. Nut M5

232051600

$1.15

100au

Edge Clip

517302785

$0.88

100av

Flat Washer M5

234051670

$2.11

100aw

Torx Truss Screw M6 X 20

250000350

$5.29

100ax

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100ay

LH Cargo

708302404

$94.99

100az

Panel Nut M6 X 1.0

250100208

$1.46

100ba

Torx Screw M6 X 20

250000722

$1.68

100bb

Stainless Steel Flat Washer

234062670

$2.11

100bc

Retaining Plate

708302046

$13.49

100bd

Torx Truss PT K40 x 12

250001131

$2.11

100bf

Male Hinge

708302045

$11.49

100bg

LH Latch Assembly

708301794

$154.99

100bh

Torx Screw M6 X 20

250000722

$1.68

100bj

Connector Holder

710002033

$3.39

100bk

LH Control

708301222

$43.99

100bm

Panel Nut M6 X 1.0

250100198

$2.11

100bn

Torx Screw M6 X 20

250000722

$1.68

100bp

Trim 3000Mm Long

219704540

$109.99

100bq

LH Cargo Fairing

708302401

$78.99

100br

Torx Screw K50 X 16

250000720

$1.69

100bt

Retainer Cable

708300385

$38.99

100bu

Screw PT Type K-50 X 16

250000959

$2.11

100bv

LH Light Support

708302283

$49.99

100bw

Brace

708302284

$12.99

100bx

Tuflok Plastic Rivet

293150230

$1.47

100by

Panel Nut M6 X 1.0

250100198

$2.11

100bz

Torx Screw M6 X 20

250000722

$1.68

100ca

Stainless Steel Flat Washer

234062670

$2.11

100cb

Torx Screw K50 X 16

250000720

$1.69

100cc

Rubber Bumper

293830005

$8.09

100cd

RH Cargo

708302405

$94.99

100cf

Panel Nut M6 X 1.0

250100208

$1.46

100cg

Torx Screw M6 X 20

250000722

$1.68

100ch

Stainless Steel Flat Washer

234062670

$2.11

100cj

Retaining Plate

708302046

$13.49

100ck

Torx Truss PT K40 x 12

250001131

$2.11

100cm

Male Hinge

708302045

$11.49

100cn

RH Latch Assembly

708301795

$154.99

100cp

Torx Screw M6 X 20

250000722

$1.68

100cq

Connector Holder

710002033

$3.39

100cr

RH Control

708301697

$43.99

100cs

Panel Nut M6 X 1.0

250100198

$2.11

100ct

Torx Screw M6 X 20

250000722

$1.68

100cu

Trim 3000Mm Long

219704540

$109.99

100cv

RH Cargo Fairing

708302402

$78.99

100cw

Torx Screw K50 X 16

250000720

$1.69

100cx

Antena Cap

708301805

$3.89

100cy

Retainer Cable

708300385

$38.99

100cz

Screw PT Type K-50 X 16

250000959

$2.11

100da

RH Light Support

708302285

$49.99

100db

Brace

708302284

$12.99

100dc

Tuflok Plastic Rivet

293150230

$1.47

100dd

Panel Nut M6 X 1.0

250100198

$2.11

100df

Torx Screw M6 X 20

250000722

$1.68

100dg

Stainless Steel Flat Washer

234062670

$2.11

100dh

Torx Screw K50 X 16

250000720

$1.69

100dj

Rubber Bumper

293830005

$8.09

100dk

Heat Shield

705016875

$47.99

200

LH Rear Heated Holding Handle

708304250

$174.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Heated Holding Handle

708304251

$142.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

862

Anchorage Socket

708303508

$1.29

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Retaining Cable Ass'y

708003616

$22.99

905f

Tuflok Plastic Rivet

293150230

$1.47

905g

Torx Truss Screw M6 X 20

250000350

$5.29

905h

Flat Washer M6, Stainless

234062600

$0.77

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
