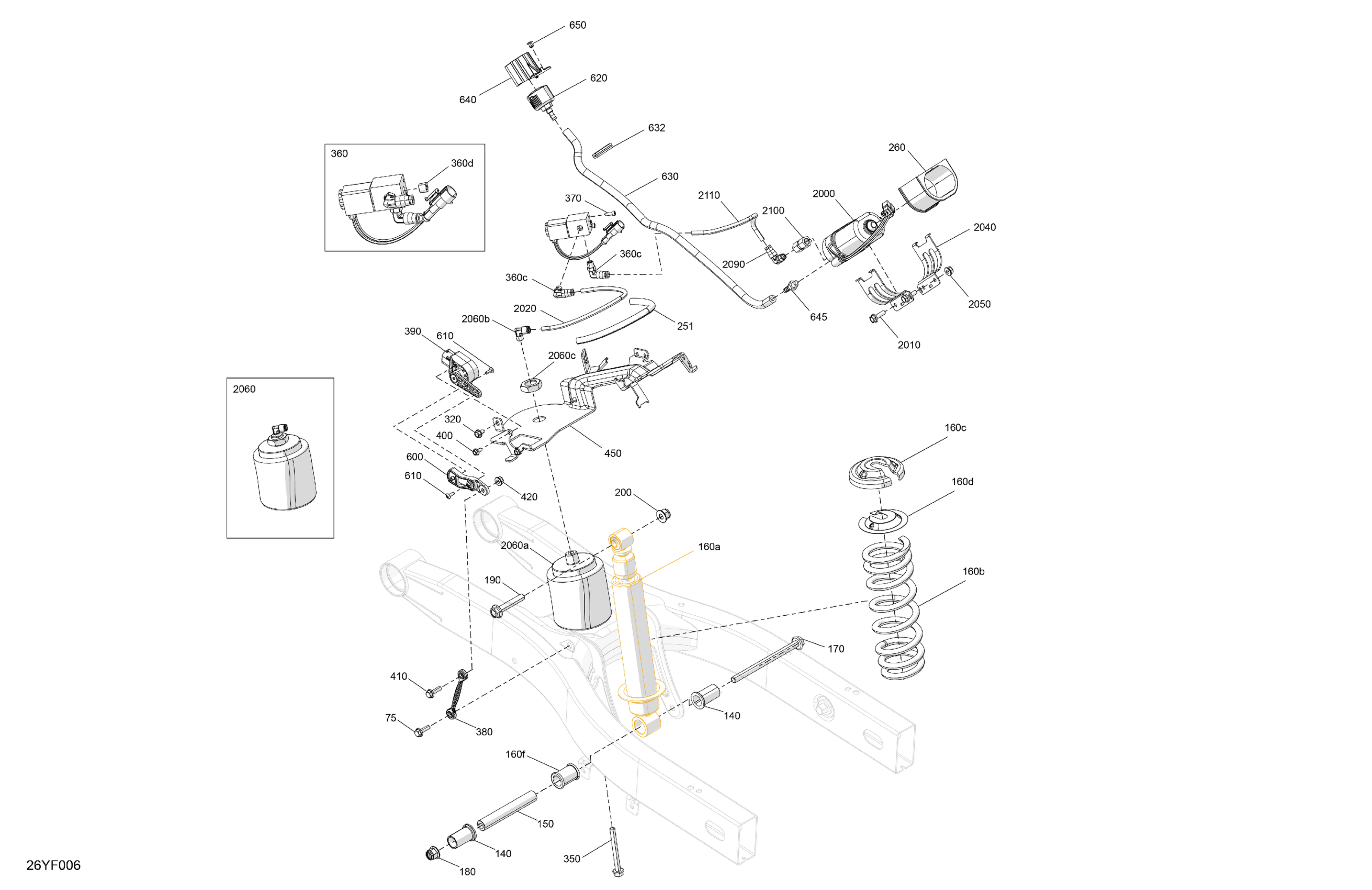

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 Suspension - Rear Shock Diagram

Description

Price

Hex. Flange Screw M6 X 25

207662554

$1.48

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

170

Hex. Flange Screw M10 X 140

230604034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

251

Tubing 6 Mm 3000Mm Long

219704425

$13.75

260

Compressor Isolator

706000631

$13.99

320

Hex. Forming Screw M6 X 10

210261050

$1.69

350

Hex. Flange Screw M8 X 75

207687544

$7.41

360

Pressure Collector Ass'y | Included 100r to 100r4

706002169

$299.99

360c

Elbow 90°

706000928

$27.99

360d

Plug 1/8”-27

504151921

$4.19

370

Socket Head Screw M4 X 12

205041254

$2.11

380

Tie Rod

706202505

$23.99

390

Suspension Sensor

710004740

$159.99

400

Hex. Flange Screw M5x10

207551056

$1.99

410

Hex. Flange Screw M6 X 20

207662044

$2.00

420

Hex. Flange Nut M6

233061414

$1.68

450

Shock Absorber Anchorage

706004660

$18.49

600

Lever

706004639

$13.99

610

Torx Truss PT K40 x 12

250001131

$2.11

620

Air Filter

706005941

$18.49

630

Hose

706005955

$12.99

632

Edge Cut Trim 1000Mm

219704548

Unavailable

640

Rear Filter Support

706005956

$12.49

645

Screwed Pipe Fitting

293700059

$28.49

650

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

2000

Compressor

706005694

$459.99

2010

Hex. Flange Screw M6 X 20

207662044

$2.00

2020

Hose 1/4

706001211

$19.99

2040

Compressor Bracket

503193103

$4.69

2050

Hex. Flange Nut M6

233061414

$1.68

2060

Air Damper Kit

219800175

$291.49

2060a

Not Available As Spare Parts

XXX

Unavailable

2060b

Elbow 90°

706001018

$28.99

2060c

Jam Nut M20

250100119

$4.13

2090

Elbow 90°

706000928

$27.99

2100

Ckeck Valve

706000831

$38.99

2110

Hose 4.32Mm 3000Mm Long

219704415

$55.99
