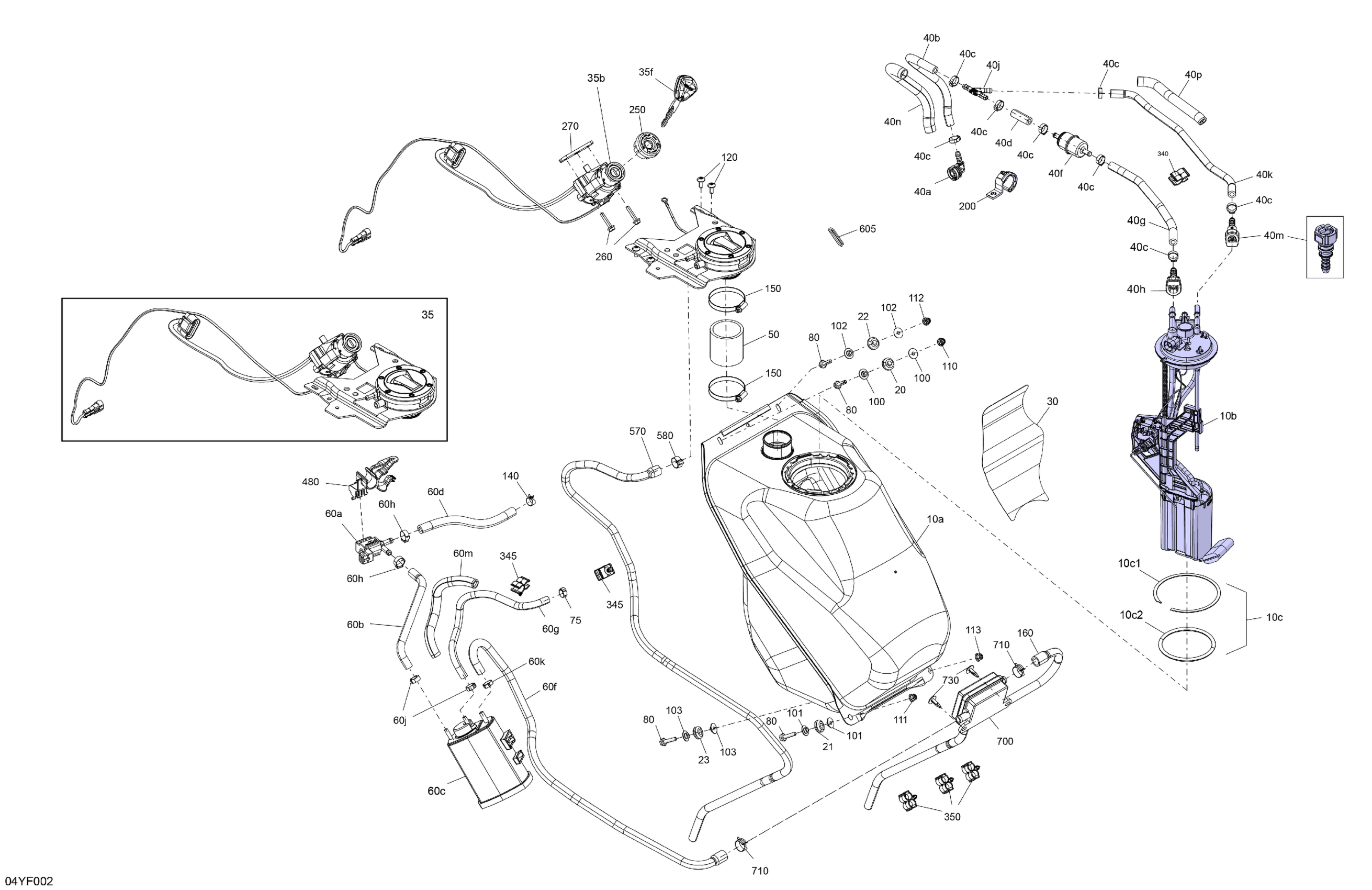

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank

219800552

$599.99

10b

Fuel Pump Module

709001731

$624.99

10c

Seal Kit

219800248

$38.99

10c1

Not Available As Spare Parts

XXX

Unavailable

10c2

Not Available As Spare Parts

XXX

Unavailable

20

Grommet

709000582

$4.69

21

Grommet

709000582

$4.69

22

Grommet

709000582

$4.69

23

Grommet

709000582

$4.69

30

Heat Shield

709001680

$20.99

35

Lock Kit | Includes 35 to 35f

709001484

$84.99

35b

Lock Kit | Includes 35b to 35b1

710009772

$296.99

35f

Blank Ignition Key

710010282

$63.49

40a

Elbow Fitting 90°

293710105

$14.22

40b

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40c

Crimp Clamp

293650360

$5.39

40d

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40f

Fuel Filter

513034047

$21.99

40g

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40h

Female Quick Fitting Ass'y

709000684

$15.49

40j

Y Fitting

513034150

$6.25

40k

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40m

Quick Connect Pipe Fitting

293710192

$12.49

40n

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40p

Tubing 16 Mm 1000Mm Long

219704408

$7.49

50

Filler Neck Hose

275501196

$25.99

60a

Purge Valve

709001449

$72.99

60b

Formed Hose

709001624

$12.99

60c

Vapor Canister

709000090

$90.99

60d

Hose 3000Mm Long

219704612

$84.99

60f

Formed Hose

709000567

$28.99

60g

Hose 6.35Mm 5000Mm Long

219704611

$194.99

60h

Crimp Clamp, 15.3-706R

293650047

$3.29

60j

Crimp Clamp

293650359

$5.39

60k

Crimp Clamp

293650360

$5.39

60m

Corrugated Sheath 13 mm ID 3000mm

219704652

Unavailable

75

Oetiker Clamp

293650046

$2.89

80

Hex. Flange Screw M6 X 25

207662554

$1.48

100

Bushing

709001287

$2.89

101

Bushing

709001287

$2.89

102

Bushing

709001287

$2.89

103

Bushing

709001287

$2.89

110

Hex. Flange Elastic Nut M6

233261466

$2.00

111

Hex. Flange Elastic Nut M6

233261466

$2.00

112

Hex. Flange Elastic Nut M6

233261466

$2.00

113

Hex. Flange Elastic Nut M6

233261466

$2.00

120

Tork Screw M6 X 16

250000534

$2.11

140

Universal Spring Clamp

513033029

$5.39

150

Norma Clamp

293650081

$12.18

160

Formed Hose

709000570

$31.99

200

Mounting Clamp

709001756

$5.39

250

Ignition Switch Cap

710004182

$12.63

260

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

270

Switch Support

710001365

$20.99

340

Hose Support

709000571

$4.65

345

Hose Support

709000571

$4.65

350

Hose Support

709000571

$4.65

480

Valve Purge Support

709001482

$6.89

570

Formed Hose

709000813

$34.99

580

Crimp Clamp

293650352

Unavailable

605

Trim 1000Mm Long

219704354

$15.99

700

Air Filter

709000524

$45.99

710

Spring Clamp

513033865

$4.49

730

Tuflock Phillips Plastic Screw

414745900

$1.69
