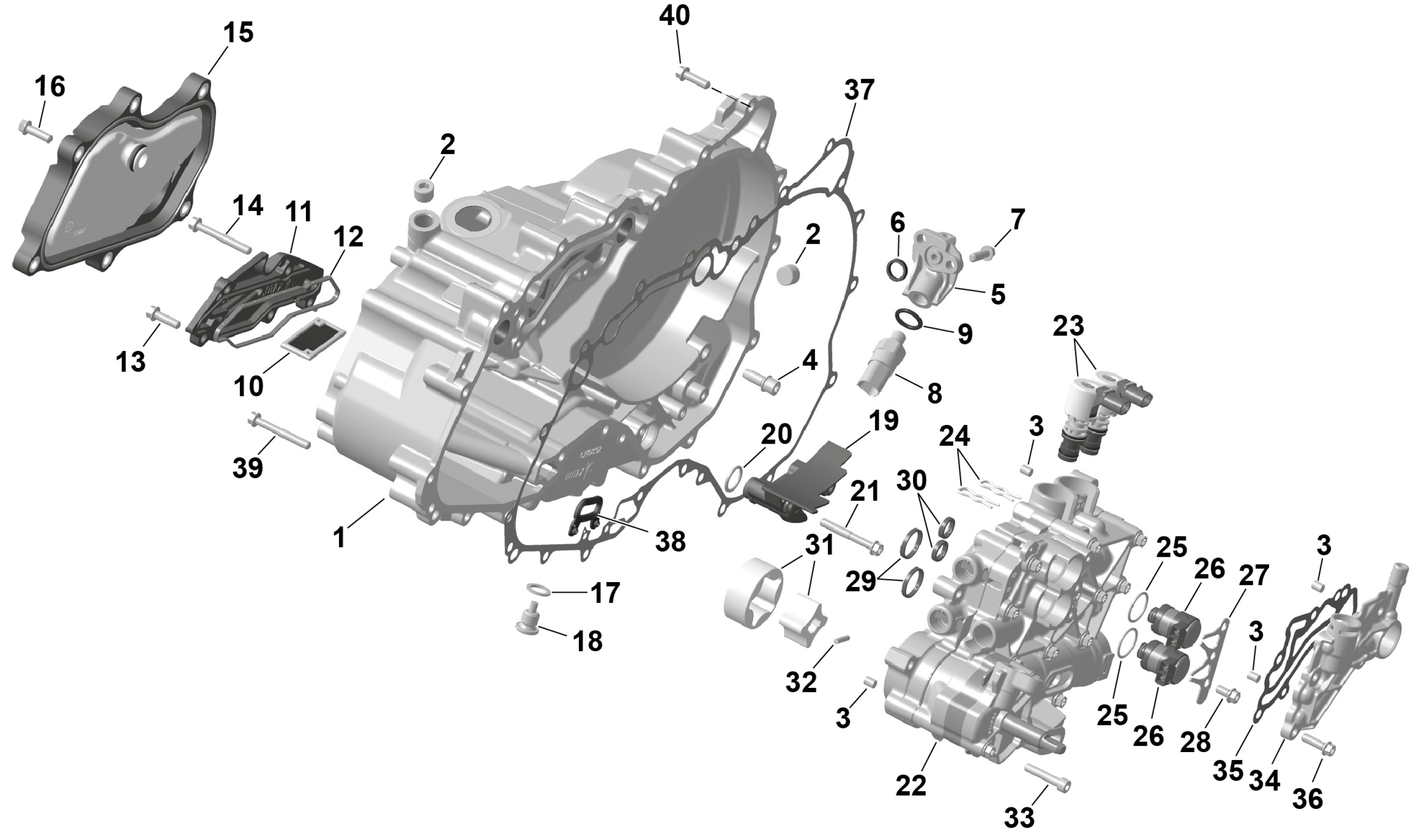

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 ROTAX - Lubrication SE6 Diagram

#

Description
Price

1

Clutch Cover

420212908

$561.49

2

Plug Screw M14 X 1.5

420641309

$13.23

3

Center Pin

420232210

$8.26

4

Torx Screw M8 X 18

420841732

$1.39

5

Pressure Sensor Housing

420212175

$109.99

6

Gasket

420450310

$2.21

7

Torx Flange Screw M6 X 20

420440207

$3.06

8

Oil Pressure Sensor

420264166

$319.99

9

O-Ring

420450350

$20.99

10

Oil Sieve

420656990

$13.10

11

Oil Duct Cover

420210871

$69.99

12

Gasket

420250630

$11.64

13

Torx Flange Screw M6 X 20

420440207

$3.06

14

Torx Flange Screw M6 X 45

420440324

$0.98

15

Oil Filter Cover

420211156

$137.99

16

Torx Flange Screw M6 X 20

420440207

$3.06

17

Copper Washer

420250640

$0.98

18

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

19

Oil Guiding Plate

420224085

$19.19

20

O-Ring

420430220

$8.26

21

Torx Flange Screw M6 X 45

420440324

$0.98

22

Hydraulic Housing Ass'y

420210982

$2,564.99

23

Solenoid Valve 3/2

420264212

$239.99

24

Spring Clip

420939041

$6.61

25

Not Available As Spare Parts

XXX

Unavailable

26

Solenoid Valve Ass'y

420656792

$319.99

27

Retaining Plate

420651701

$14.21

28

Hex. Flange Screw M6 X 12

420440147

$2.00

29

Gasket

420450240

$2.43

30

Gasket

420450310

$2.21

31

Oil Pump Rotor

420456290

$73.99

32

Needle Pin

420232731

$4.01

33

Torx Flange Screw M6 X 30

420840888

$1.69

34

Valve Housing

420211124

$68.99

35

Gasket

420450290

$26.49

36

Torx Flange Screw M6 X 20

420440207

$3.06

37

Gasket Ass`y

420450032

$25.99

38

Not Available As Spare Parts

XXX

Unavailable

39

Torx Flange Screw M6 X 45

420440324

$0.98

40

Torx Flange Screw M6 X 20

420440207

$3.06
