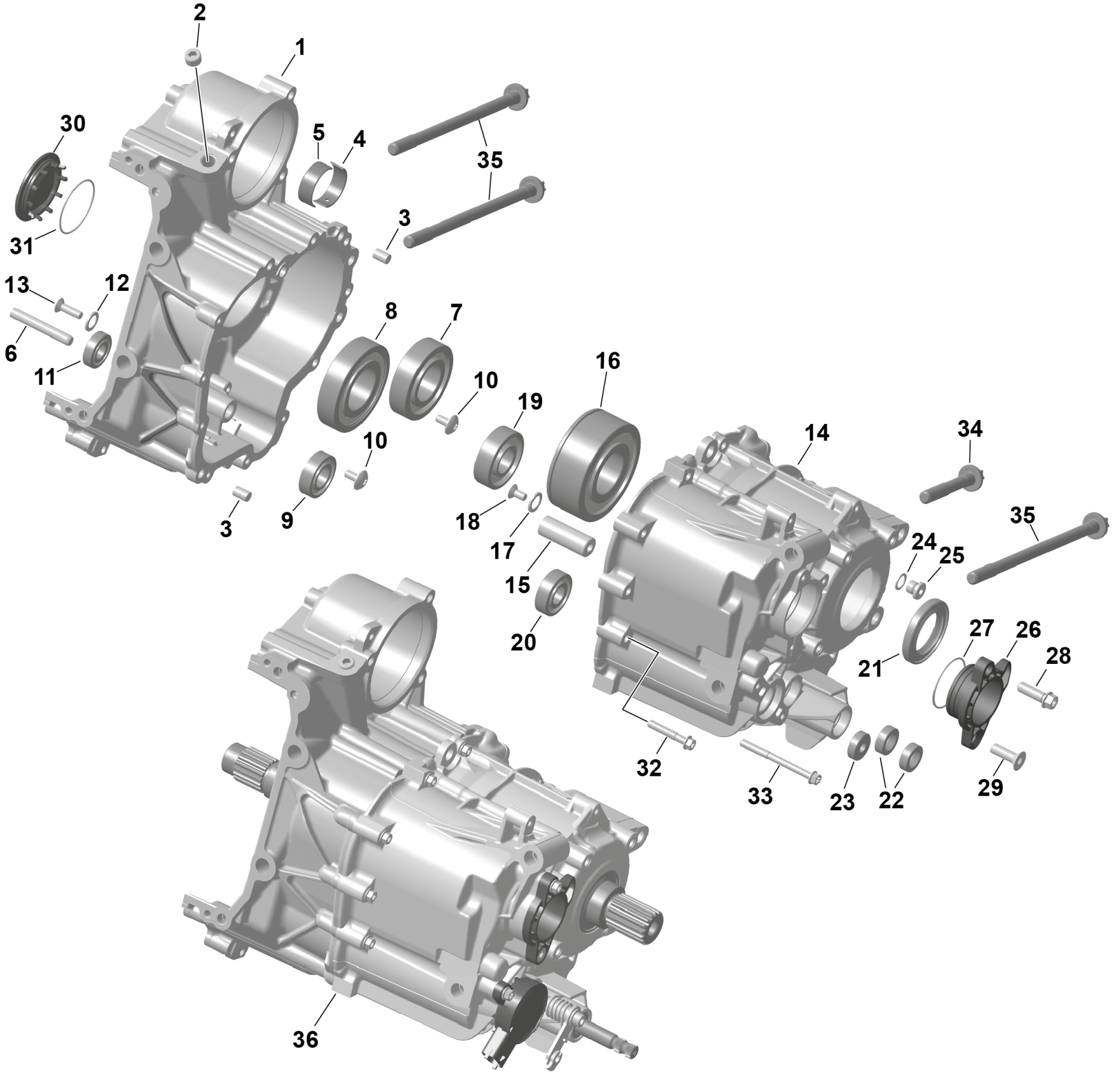

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 ROTAX - GearBox Housing Diagram

#

Description
Price

1

Gear Box Clutch Side | Includes 1 to 13

420212693

$659.99

2

Plug Screw M12x1,5

420840658

$7.51

3

Center Pin 8 X 12

420632010

$4.01

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Pin 8, M6 X 55

420229384

$5.71

7

Ball Bearing

420232782

$24.49

8

Ball Bearing

420832232

$13.16

9

Ball Bearing

420232625

$20.99

10

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

11

BALL BEARING - Call your local BRP dealership

420232402

Unavailable

12

Washer

420227085

$2.75

13

Screw M6 X 20

420941438

$2.85

14

Gear Box PTO Side | Includes 14 to 19.

420212684

$677.99

15

Bolt

420249050

$20.99

16

Ball Bearing

420632832

$227.99

17

Washer

420227085

$2.75

18

Screw M6 X 12 | Not Illustrated

420441415

$2.32

19

Ball Bearing

420932677

$23.99

20

Ball Bearing

420932290

$23.99

21

Oil Seal

420831185

$19.99

22

Oil Seal

420250455

$17.38

23

Oil Seal

420631910

$12.16

24

Oil Seal

420230150

$2.85

25

Plug Screw M10 X 1

420641733

$12.72

26

Cover Support

420211240

$15.81

27

O-Ring

420230035

$8.26

28

Torx Flange Screw M6 X 20

420441835

$3.17

29

Screw M6 X 20

420941438

$2.85

30

Cover

420201050

$10.17

31

O-Ring

420831160

$2.32

32

Torx Flange Screw M6 X 35

420440274

$1.01

33

Hex. Flange Screw M6 X 65

420440602

$6.39

34

Torx Screw M10 X 65

420441521

$5.82

35

Torx Screw M10 X 175

420640136

$12.16

36

Gearbox

420686483

$3,299.99
