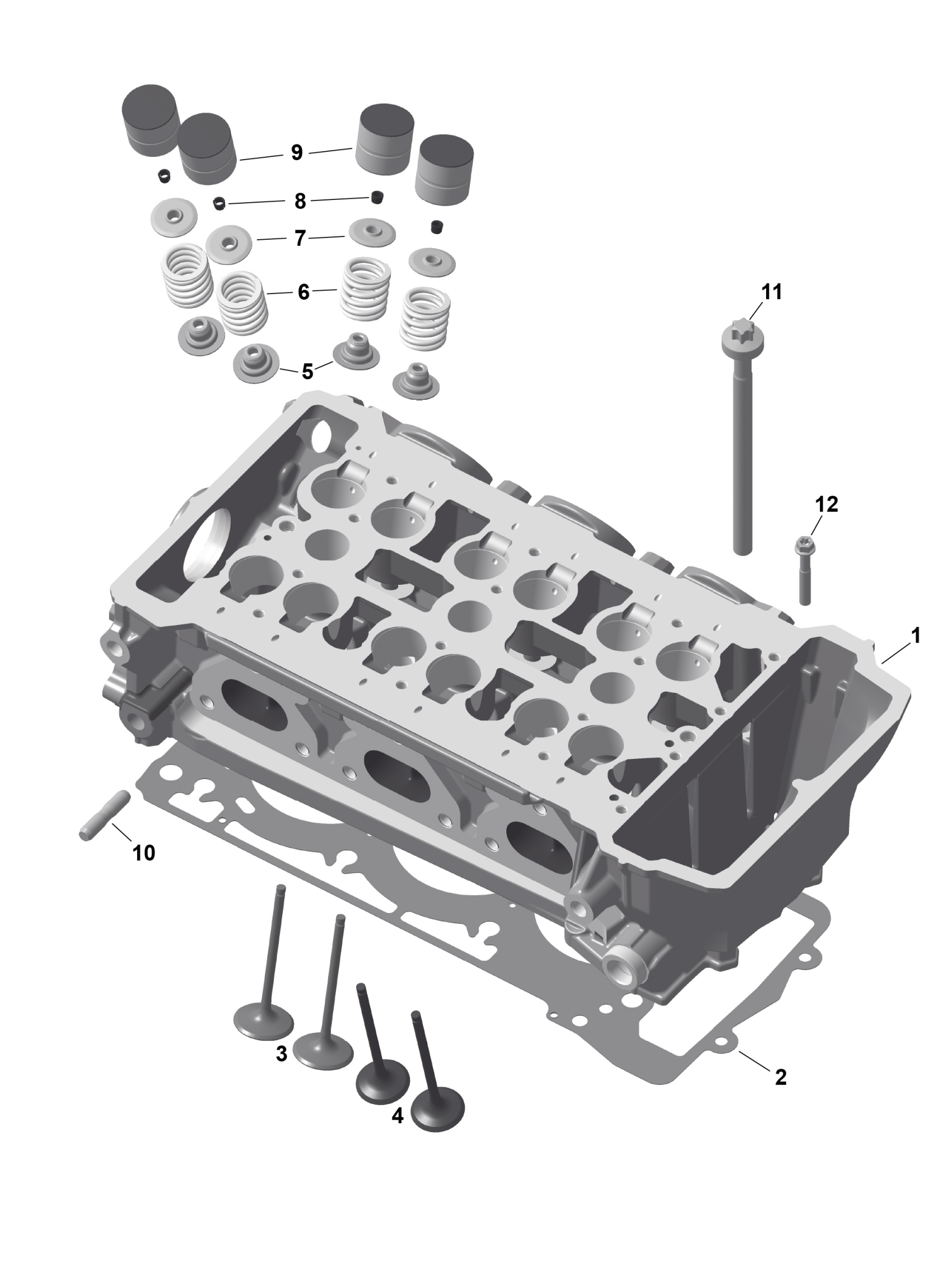

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Cylinder Head

420623979

$915.99

2

Cylinder Head Gasket

420431951

$35.99

3

Intake Valve 32 mm

420253212

$41.49

4

Exhaust Valve 28.5 mm

420253222

$89.99

5

Valve Stem Seal

420431671

$5.06

6

Valve Spring

420939540

$7.09

7

Valve Spring Retainer

420855150

$4.15

8

Cotter Valve

420254630

$0.96

9

Valve Lifter Bucket

420855165

$44.00

10

Stud

420840718

$10.12

11

Torx Flange Screw M10 X 150

420441285

$12.10

12

Torx Flange Screw M6 X 40

420440282

$3.01
