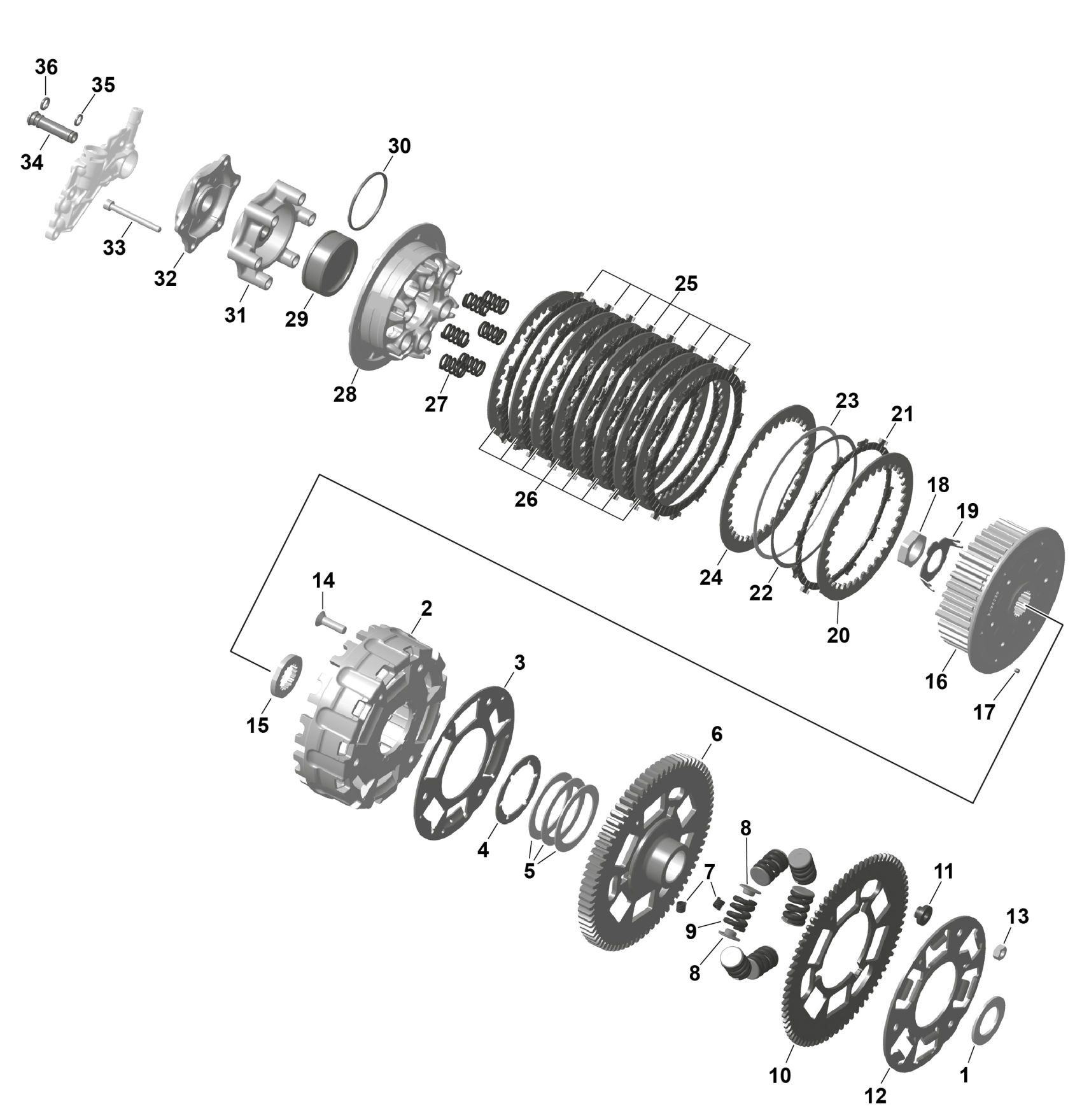

Can-Am China - F3 - LIMITED - Dark Edition - H8TG - Monolith Black, 2026 ROTAX - Clutch Diagram

#

Description
Price

1

Thrust Washer

420627255

$10.00

2

Clutch Drum Ass'y | Includes 2 to 14

420685831

$960.00

3

Support Plate

420459105

$61.00

4

Thrust Washer

420626870

$10.00

5

Disc Spring

420239397

$18.00

6

Clutch Gear

420435408

$250.00

7

Compression Spring

420638030

$19.00

8

Spring Retainer

420247017

$16.00

9

Compression Spring

420238132

$19.00

10

Anti-Backlash Gear 75 Teeth

420435414

$160.00

11

Distance Sleeve

420647200

$18.00

12

Support Plate

420459100

$61.00

13

Hex. Nut M8

232081414

$0.60

14

Screw M8 X 28

420440795

$3.00

15

Thrust Washer

420627225

$13.00

16

Clutch Hub Ass'y | Includes 16 to 17

420459087

$180.00

17

Adjustment Screw M4 X 4

420640805

$1.00

18

Hex Nut M24 | Includes no. 18-19

420243955

$16.00

19

Tab Washer

420245328

Unavailable

20

Disc Kit | Includes 20a to 27

420686063

$410.00

21

Not Available As Spare Parts

XXX

Unavailable

22

Thrust Washer

420626970

$15.00

23

Disc Spring

420238980

$17.00

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Clutch Spring

420238890

$8.00

28

Pressure Plate

420459095

$77.00

29

Clutch Piston

420456082

$64.00

30

Sealing Ring

420201140

$35.00

31

CLUTCH CYLINDER - Call your local BRP dealership

420456076

$122.00

32

Oil Duct Cover

420212081

$62.00

33

Allen Screw M6 X 55

420240332

$4.62

34

Piston Oil Supply

420456171

$39.00

35

Sealing Ring

420201150

$19.00

36

O-Ring

420931765

$0.81
