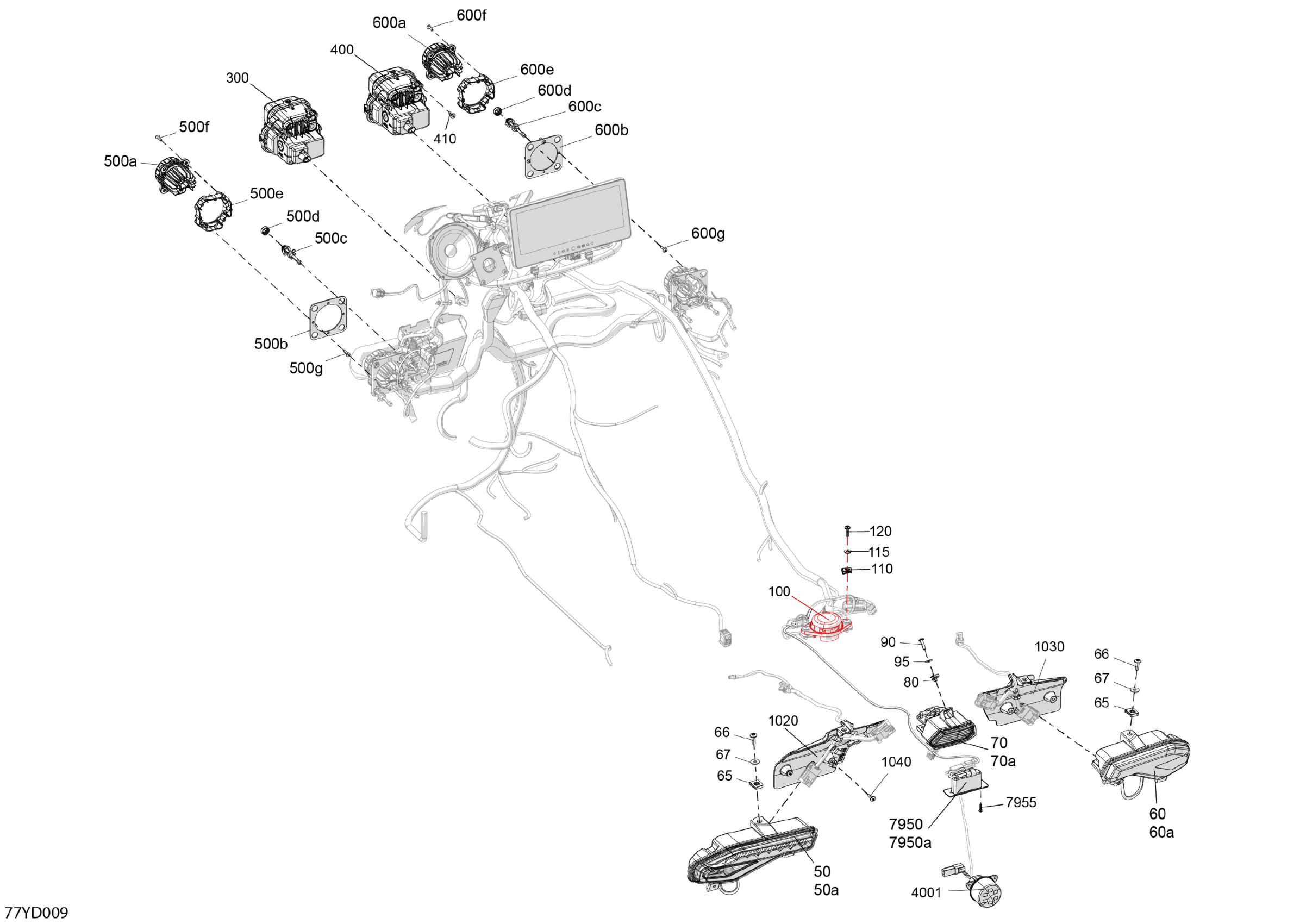

Can-Am China - F3 LIMITED - Dark Edition - H8RE - LIMITED - Monolith Black, 2024 Electric - Vehicle Lighting Diagram

Description

Price

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

50a

Flasher Bulb

219800304

$6.66

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

60a

Flasher Bulb

219800304

$6.66

Panel Nut M6 X 1.0

250100208

$1.22

Torx Screw M6 X 20

250000722

$1.54

Flat washer M6

250200164

$0.96

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

70a

Bulb 12V 10W

219800322

$8.68

Panel Nut M5 X 0.8

250000958

$4.00

Torx Truss Screw M5 X 20

250000715

$2.00

Stainless Steel Flat Washer M5

234052670

$0.96

100

Passenger Detection Switch

710008103

$70.12

110

Panel Nut M6 X 1.0

250100208

$1.22

115

Stainless Steel Flat Washer

234062670

$2.00

120

Torx Truss Screw M6 X 25

250000807

$2.00

300

Front Headlight

710008694

$349.99

400

Front Headlight

710008694

$349.99

410

Torx Screw K50 X 16

250000720

$1.60

500a

Low Beam Ass'y

710006007

$349.99

500b

Headlight Support

710007188

$15.49

500c

Adjustment Screw

710007200

$10.27

500d

Clip

293730095

$1.68

500e

Adapter

710007189

$3.59

500f

Torx-Truss Pt K40 X 16

250000759

$2.00

500g

Torx-Truss Pt K40 X 16

250000759

$2.00

600a

Low Beam Ass'y

710006007

$349.99

600b

Headlight Support

710007188

$15.49

600c

Adjustment Screw

710007200

$10.27

600d

Clip

293730095

$1.68

600e

Adapter

710007189

$3.59

600f

Torx-Truss Pt K40 X 16

250000759

$2.00

600g

Torx-Truss Pt K40 X 16

250000759

$2.00

1020

LH Connector Support

710004643

$12.99

1030

RH Connector Support

710004644

$11.49

1040

Torx Screw K50 X 16

250000720

$1.60

4001

Fog Light Rear

710007018

$193.49

7950

License Light | Includes 0an to 0an1

710001451

$76.49

7950a

Bulb

219800128

$2.46

7955

Hex. Flange Screw K40 X 16

250001123

$2.00
