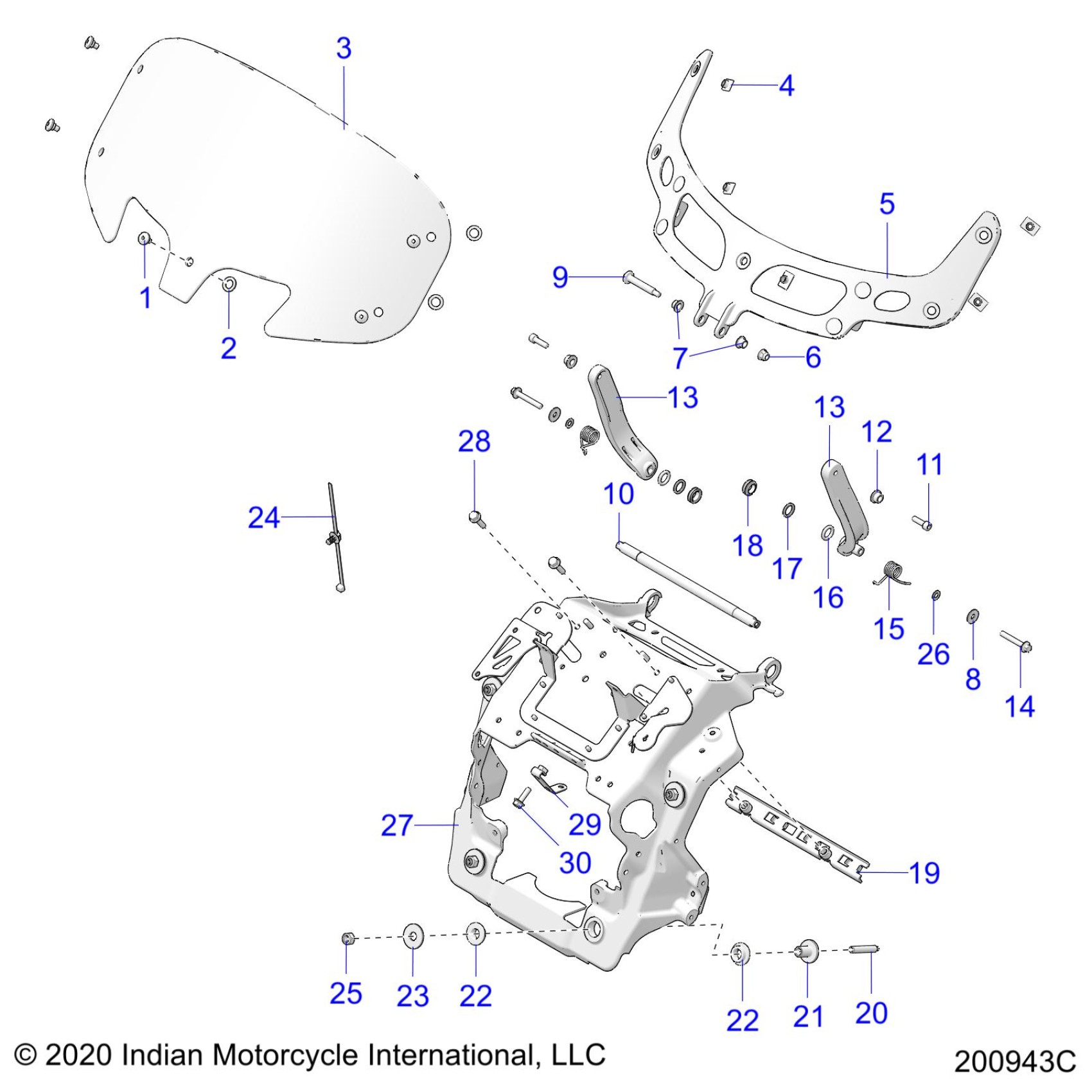

Polaris CHIEFTAIN STANDARD 116 (R02) - N21TCBBBEA BODY, FAIRING ASM, WINDSHIELD MOUNT - N21TCBBB ALL OPTIONS (200943C) Diagram

BOLT-SHOULDER,M6X1.0,7MM,9MM,POLISHED

7521021

Unavailable

WSHR-FL,11X18X1.59MM

5813188

Unavailable

K-WINDSHIELD,SHORT,TOUR,TNTD

2881797-02

$174.99

TNUT-M6

7547300

$1.59

SUPPORT, WINDSHIELD

5138467-626

Unavailable

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

BRG-FLANGE,8X10X7MM

3514565

$6.35

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

SCREW-SHSHDR-M6X1.0X51 SS SPC

7521070

$6.99

ROD,PIVOT, WS

5138358

$48.40

SCREW-SHSHDR-M6X1.0X20 SS SPC

7521069

$5.99

BRG-FLANGE,8X12X8MM

3515150

$3.99

LINK, WINDSHIELD, JT BLK

5138909-626

Unavailable

LINK, WINDSHIELD, JT BLK

5138909-626

Unavailable

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

Spring, Windshield, LH

7043355

$5.56

Spring, Windshield, RH

7043356

$8.08

O-Ring

5411356

$2.41

Washer, Flat

7556113

$4.76

Bearing, Spherical

3514566

$15.87

BRACKET, POWER SUPPLY,ECOAT

1024261-329

$84.99

STUD-M8X1.25X45 8.8 ZPC

5142297

$4.76

BSHG-FLG,8.5X12.7X18.5

5136907

$9.52

ISOLATOR, FAIRING

5416052

$3.97

ISOLATOR, FAIRING

5416052

$3.97

Washer, Flat

7556260

$10.32

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.19

ASM., FAIRING BRACKET,HPAUDIO,ECOAT

1025003-329

$279.99

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

BRACKET, FAIRING HARNESS,ECOAT

5266316-329

$44.51

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76
