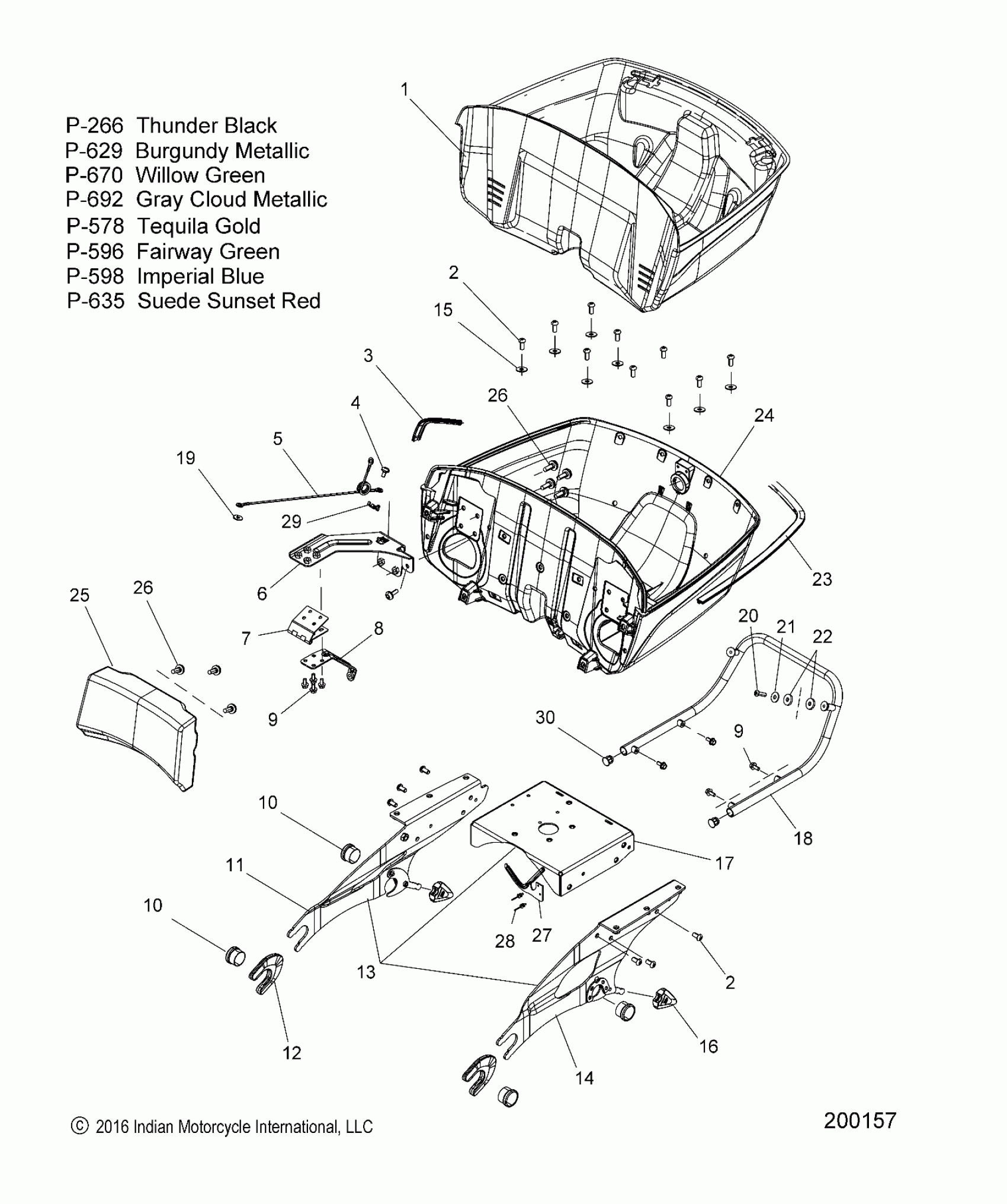

Polaris CHIEFTAIN/ROADMASTER ALL OPTIONS (R06) - N17TCAAA/TRAAA BODY, TRUNK BASE MOUNTING ASM. - N17TRAAA ALL OPTIONS (200157) Diagram

#

Description
Price

1

LINER, TRUNK

2686426

$329.99

2

SCREW, TXBH

7520127

$5.56

3

SEAL, TRUNK , SHORT

5415311

$31.75

4

SCREW, SH

7517276

$7.14

5

CABLE, TRUNK LID

7082053

$40.46

6

BRKT., HINGE SUPP., UPPER, LH

5260396

$56.65

6

BRKT., HINGE SUPP., UPPER, RH

5260397

$56.65

7

ASM., HINGE, TRUNK

2635193

$51.59

8

BRKT., HINGE, LOWER, LH

5260327

$32.37

8

BRKT., HINGE, LOWER, RH

5260328

$32.37

9

SCREW, HXFLG

7520143

$3.97

9

SCREW, HXFLG

7520143

$3.97

10

BUSHING, SPOOL

5451750

$6.35

10

BUSHING, SPOOL

5451750

$6.35

11

ASM., TRUNK SIDE PLATE, RH, CHROME

1020539-156

$264.99

12

ISOLATOR, FRONT

5414784

$11.32

13

ASM., TRUNK FRAME, CHROME [INCL. 2,9-14,16-18,27, 28]

2880736-156

$519.99

14

ASM., TRUNK SIDE PLATE, LH, CHROME

1020538-156

$264.99

15

WASHER

7556459

$1.99

16

GRIP, LOCK LEVER

5414785

$11.32

17

SUPPORT, TRUNK CENTER, FLAT BLACK

5139657-463

$121.02

18

BUMPER, TRUNK, CHROME

1020997-156

$174.27

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

SCREW, HXBH

7517782

$4.76

21

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

22

WASHER, RUBBER

5814206

$3.97

23

SEAL, TRUNK, LONG

5415238

$35.71

24

BIN, TRUNK

5451857-266

$1,084.99

24

BIN, TRUNK

5451857-692

$969.99

24

BIN, TRUNK

5451857-596

$849.99

24

BIN, TRUNK

5451857-598

$1,109.99

24

BIN, TRUNK

5451857-635

$849.99

24

BIN, TRUNK

5451857-578

$1,024.99

24

BIN, TRUNK

5451857-670

$899.99

24

BIN, TRUNK

5451857-629

$969.99

25

ASM., BACKREST, LWR

2685819-05

$329.99

26

SCREW, HXBUTTSHLD

7520171

$5.56

26

SCREW, HXBUTTSHLD

7520171

$5.56

27

ASM., WIRE RETAINER

1021111

Unavailable

28

RIVET

7621235

$1.19

29

BRKT., LANYARD, LH

5260463

$32.37

29

BRKT., LANYARD, RH

5260464

$32.37

30

CAP-TUBING, CHROME

5259230-156

$9.70
