- CHIEFTAIN/ROADMASTER ALL OPTIONS (R06) - N17TCAAA/TRAAA
BODY, FAIRING ASM, WINDSHIELD MOUNT - N17TCAAA/TRAAA ALL OPTIONS (200104)

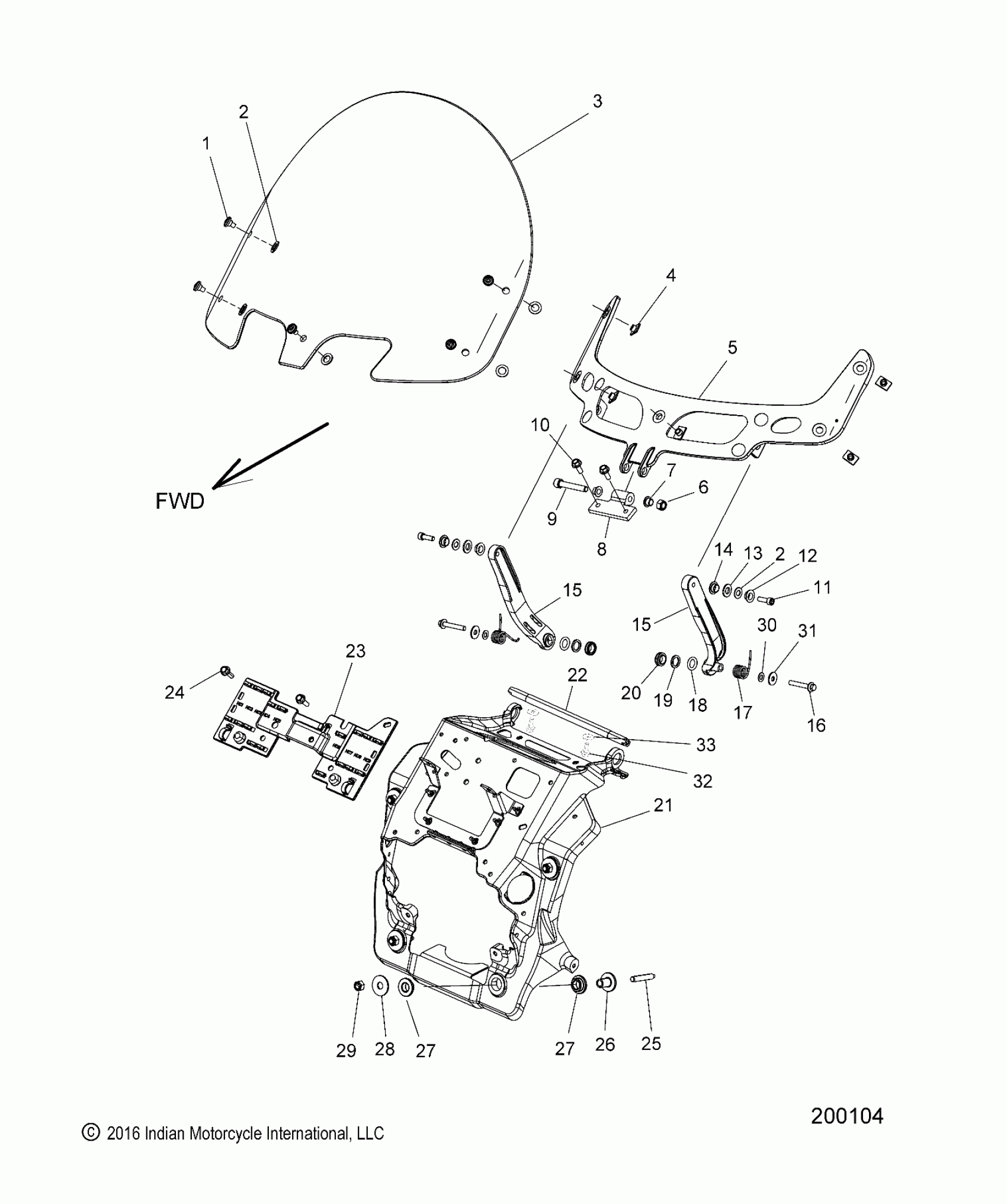

Polaris CHIEFTAIN/ROADMASTER ALL OPTIONS (R06) - N17TCAAA/TRAAA BODY, FAIRING ASM, WINDSHIELD MOUNT - N17TCAAA/TRAAA ALL OPTIONS (200104) Diagram
#
1
BOLT, SHOULDER
7518788
Unavailable
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
3
KIT, WINDSHIELD, TOURING [ROADMASTER]
2881796
Unavailable
3
K-WINDSHIELD,SHORT,TOUR,TNTD [CHIEFTAIN]
2881797-02
Unavailable
4
T-NUT
7547300
$1.59
5
SUPPORT, WINDSHIELD
5138467-626
Unavailable
6
NUT
7547454
Unavailable
7
BRG-FLANGE,8X10X7MM
3514565
Unavailable
8
CLEVIS, WINDSHIELD
5138466
Unavailable
9
SCREW
7518013
Unavailable
10
SCREW
7518591
$3.73
11
SCREW
7517305
$4.79
12
BUSHING, FLANGE
5140871
Unavailable
13
WASHER, THRUST
7556832
Unavailable
14
FLANGE, BEARING
3514853
Unavailable
15
LINK, WINDSHIELD
5138909
Unavailable
15
LINK, WINDSHIELD
5138909
Unavailable
16
Screw
7517610
$1.59
17
Spring, Windshield, RH
7043356
Unavailable
17
Spring, Windshield, LH
7043355
Unavailable
18
O-Ring
5411356
$2.39
19
WASHER
7556113
$4.79
20
Bearing, Spherical
3514566
Unavailable
21
ASM., FAIRING BRACKET,GPS
1022608-329
Unavailable
22
ROD-PIVOT,WS
5138358
Unavailable
23
BRKT-CONNECTOR, FAIRING
5452664
Unavailable
24
SCREW, HXFLSH-M6x20
7520426
$5.59
25
STUD
5137389
Unavailable
26
BUSHING, FLANGE
5136907
Unavailable
27
ISOLATOR, FAIRING
5416052
Unavailable
27
ISOLATOR, FAIRING
5416052
Unavailable
28
WASHER
7556260
Unavailable
29
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
30
WASHER
7556121
$1.49
31
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
32
SCREW, HXFL-M6
7518591
$3.73
33
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
