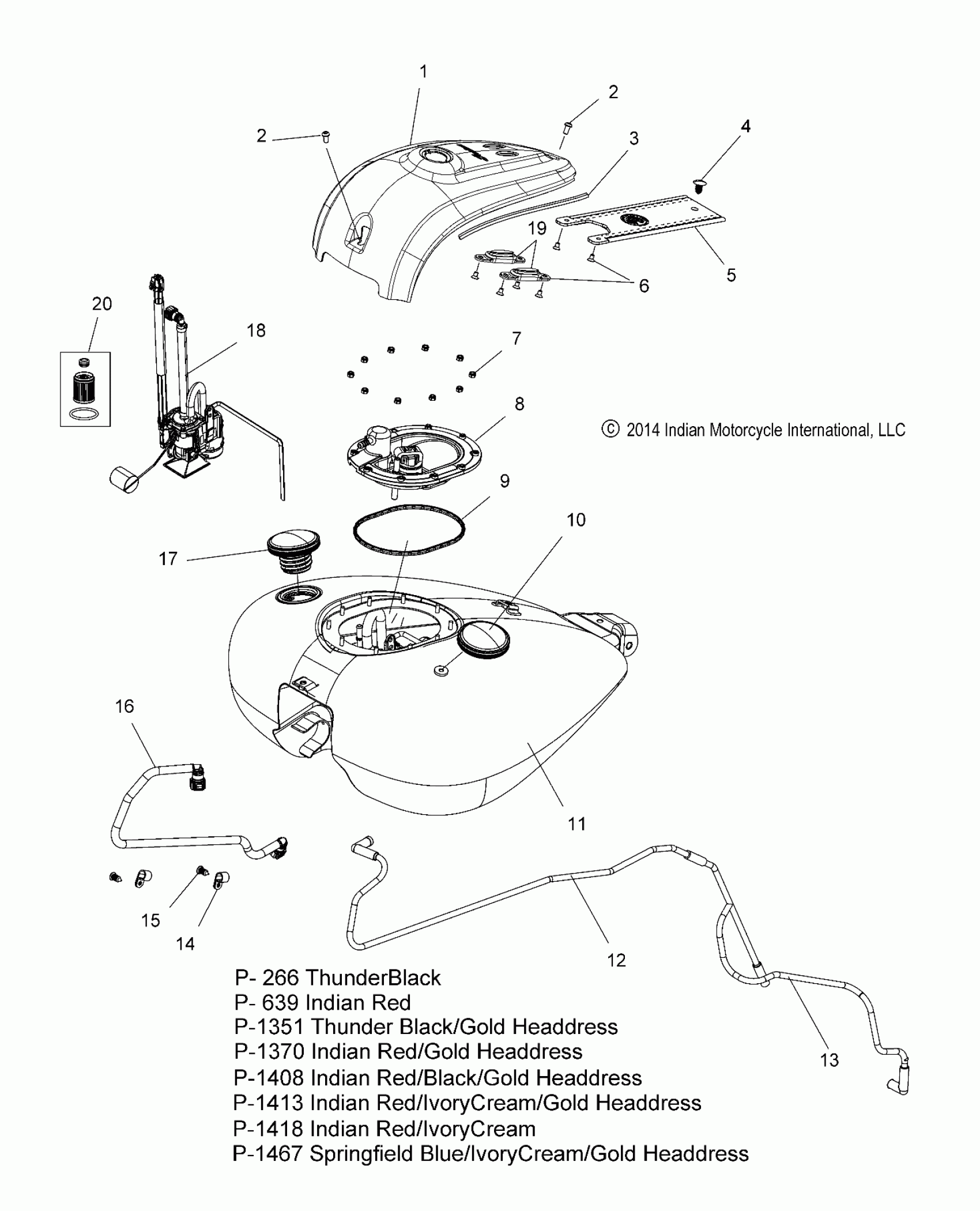

Polaris CHIEFTAIN/ROADMASTER ALL OPTIONS - N15TCAAA/TRAAA FUEL SYSTEM, FUEL TANK ASM. - N15TCAAA/TRAAA ALL OPTIONS (49INDIANFUELTANK15R) Diagram

#

Description

Price

1

CONSOLE, TANK, FAIRING, CHROME

5632837-156

Unavailable

2

SCREW

7519000

Unavailable

2

SCREW

7519000

Unavailable

3

TRIM, EDGE, CONSOLE, 450MM

8360133

Unavailable

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

STRAP, FUEL TANK, LEATHER, BLACK [CHIEFTAIN]

2685660-01

Unavailable

5

STRAP, FUEL TANK, LEATHER, DARK TAN [ROADMASTER]

2685660-05

Unavailable

6

SCREW

7519876

Unavailable

7

NUT-M5X.8,HX NYL-Y

7546601

$1.49

8

ASM., FUEL ACCESS

2521374

Unavailable

9

SEAL, FUEL

5414514

Unavailable

10

CAP, FUEL, DUMMY, CHROME

5138538-156

Unavailable

11

TANK, FUEL [ROADMASTER]

1018972-266

Unavailable

11

TANK, FUEL [ROADMASTER]

1018972-639

Unavailable

11

TANK, FUEL [CHIEFTAIN]

1018972-1351

Unavailable

11

TANK, FUEL [CHIEFTAIN]

1018972-1413

Unavailable

11

TANK, FUEL [CHIEFTAIN]

1018972-1467

Unavailable

11

TANK, FUEL [ROADMASTER]

1018972-1418

Unavailable

11

TANK, FUEL [CHIEFTAIN]

1018972-1408

Unavailable

12

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

13

LINE, VENT TO GROUND, LOWER

5439858

Unavailable

14

CLAMP, CABLE

7081900

Unavailable

15

CLIP, XMAS TREE

7661953

$1.49

16

LINE, FUEL

5414515

Unavailable

17

CAP, FUEL, CHROME

5138508-156

Unavailable

18

ASM., FUEL PUMP, SENDER [SERVICE][INCL. PUMP, FILTER, SENDER]

2521305

Unavailable

19

PLUG, SWITCH, CONSOLE, CHROME [CHIEFTAIN]

5451070-156

Unavailable

19

SWITCH, SADDLE/GRIPS [SEE ELECTRICAL COMPONENTS 1 PG.]

-------

Unavailable

20

KIT, FUEL FILTER [INCL. FILTER, SEAL, O-RING]

2205389

Unavailable
