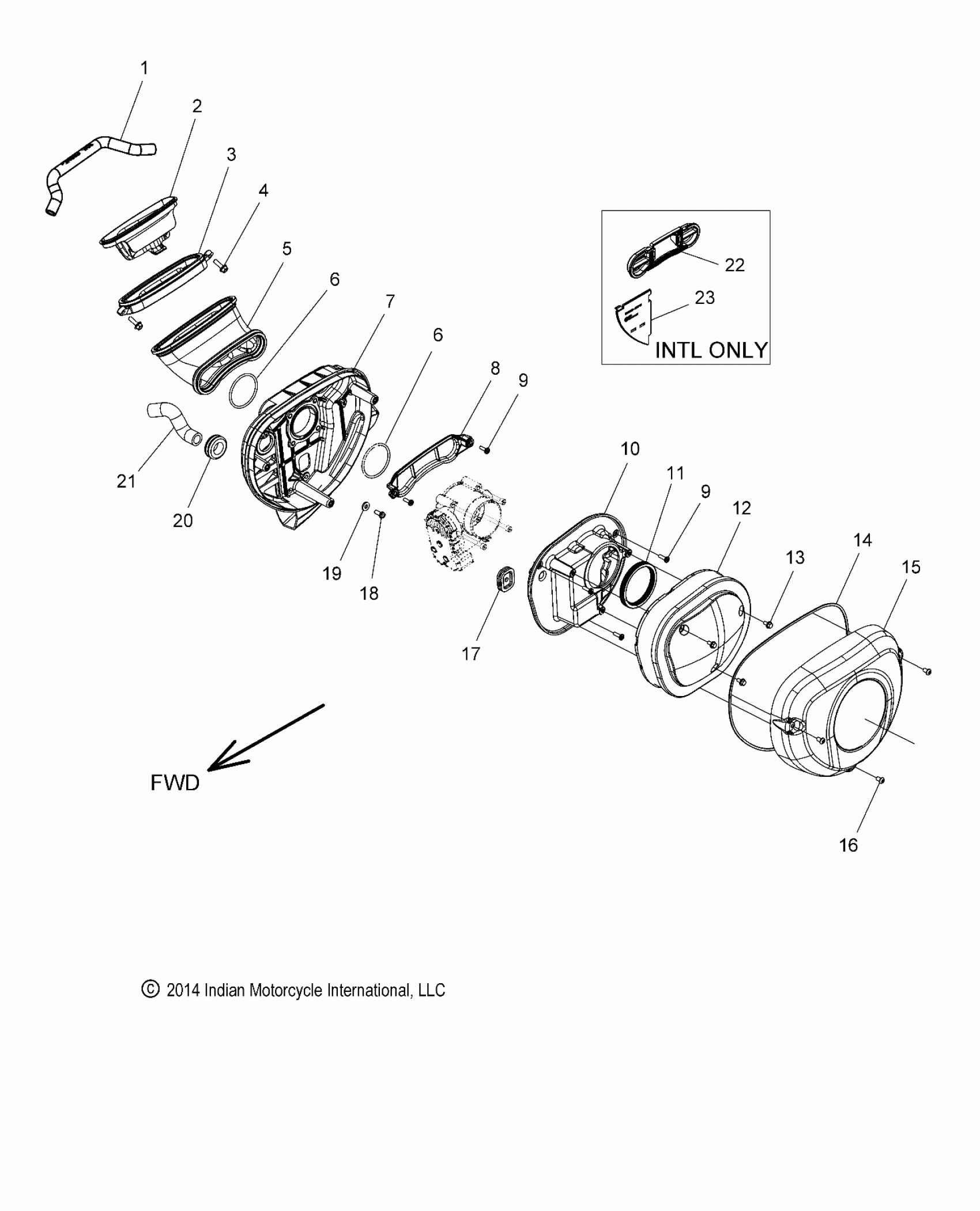

Polaris CHIEFTAIN/ROADMASTER ALL OPTIONS - N15TCAAA/TRAAA ENGINE, AIR INTAKE SYSTEM - N15TCAAA/TRAAA ALL OPTIONS (49INDIANAIRCLEANER15) Diagram

Description

Price

HOSE, BREATHER LINK

5414939

$64.75

INSERT, AIRBOX CONNECTOR

5450308

$20.22

CONNECTOR, AIR BOX, CAST

5632801

$38.71

SCREW

7518141

$4.76

CONNECTOR, AIR BOX

5414662

$67.76

GASKET, THROTTLE BODY

5813886

$5.56

GASKET, THROTTLE BODY

5813886

$5.56

BASE, AIRBOX

5415270

$129.99

RETAINER, AIR BOX CONNECTOR

1204747

$32.37

SCREW

7518238

$3.97

SCREW

7518238

$3.97

RETAINER PLATE, AIR FILTER

1204919

$97.13

SEAL, FILTER RETAINER PLATE

5414749

$15.87

AIR FILTER

5813976

$30.54

Screw

7517795

$4.76

SEAL, AIR BOX

5414783

$5.56

COVER, AIR BOX, CHROME

5257830-156

$387.29

SCREW

7517406

$4.76

GROMMET

5414802

$3.97

SCREW

7518548

$1.59

WASHER

7556485

$4.76

GROMMET

5414663

$4.76

BREATHER HOSE

5450006

$36.41

PLATE, BLOCK OFF, INTAKE [INTL ONLY]

5450991

$32.37

PLATE, BLOCK OFF, AIRBOX BASE [INTL ONLY]

5450990

$28.32
