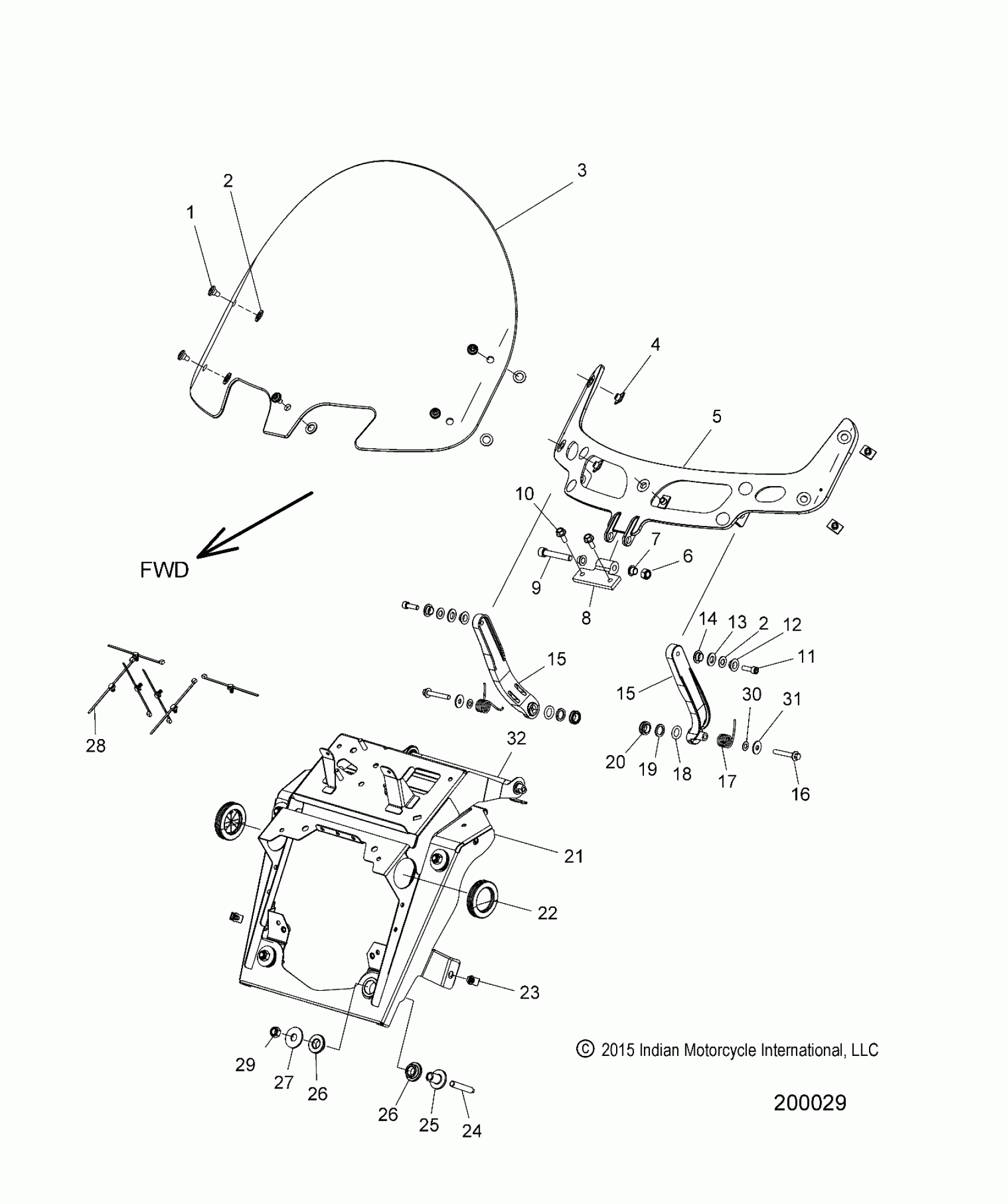

Polaris CHIEFTAIN/ROADMASTER ALL OPTIONS - N15TCAAA/TRAAA BODY, FAIRING ASM, WINDSHIELD MOUNT - N15TCAAA/TRAAA ALL OPTIONS (200029) Diagram

#

Description
Price

1

BOLT, SHOULDER

7518788

$7.14

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

3

KIT, WINDSHIELD, MID [CHIEFTAIN]

2879895

$349.99

3

WINDSHIELD, FAIRING, MED. [CHIEFTAIN]

5439903

$349.99

3

KIT, WINDSHIELD, TOURING [ROADMASTER]

2880831

$369.99

4

T-NUT

7547300

$1.59

5

SUPPORT, WINDSHIELD

5138467-626

Unavailable

6

NUT

7547454

$2.38

7

BRG-FLANGE,8X10X7MM

3514565

$6.35

8

CLEVIS, WINDSHIELD

5138466

$40.46

9

SCREW

7518013

$6.35

10

SCREW

7518591

$3.79

11

SCREW

7517305

$5.22

12

BUSHING, FLANGE

5139391

$9.52

13

WASHER, THRUST

7556832

$7.14

14

FLANGE, BEARING

3514853

$6.35

15

LINK, WINDSHIELD

5138909

Unavailable

15

LINK, WINDSHIELD

5138909

Unavailable

16

Screw

7517610

$1.59

17

Spring, Windshield, LH

7043355

$5.56

17

Spring, Windshield, RH

7043356

$8.08

18

O-Ring

5411356

$2.41

19

WASHER

7556113

$4.76

20

Bearing, Spherical

3514566

$15.87

21

ASM., SUPPORT, FAIRING

1020360

$309.99

22

GROMMET-ELEC,CAB,SLIT

5415049

$4.99

23

CLIP-U SPEED NUT

7081305

$1.98

24

STUD

5137389

$10.32

25

BUSHING, FLANGE

5136907

$9.52

26

BUSHING, RUBBER

5413596

$2.38

26

BUSHING, RUBBER

5413596

$2.38

27

WASHER

7556260

$10.32

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

29

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

30

WASHER

7556121

$1.19

31

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

32

ROD,PIVOT, WS

5138358

$48.40
