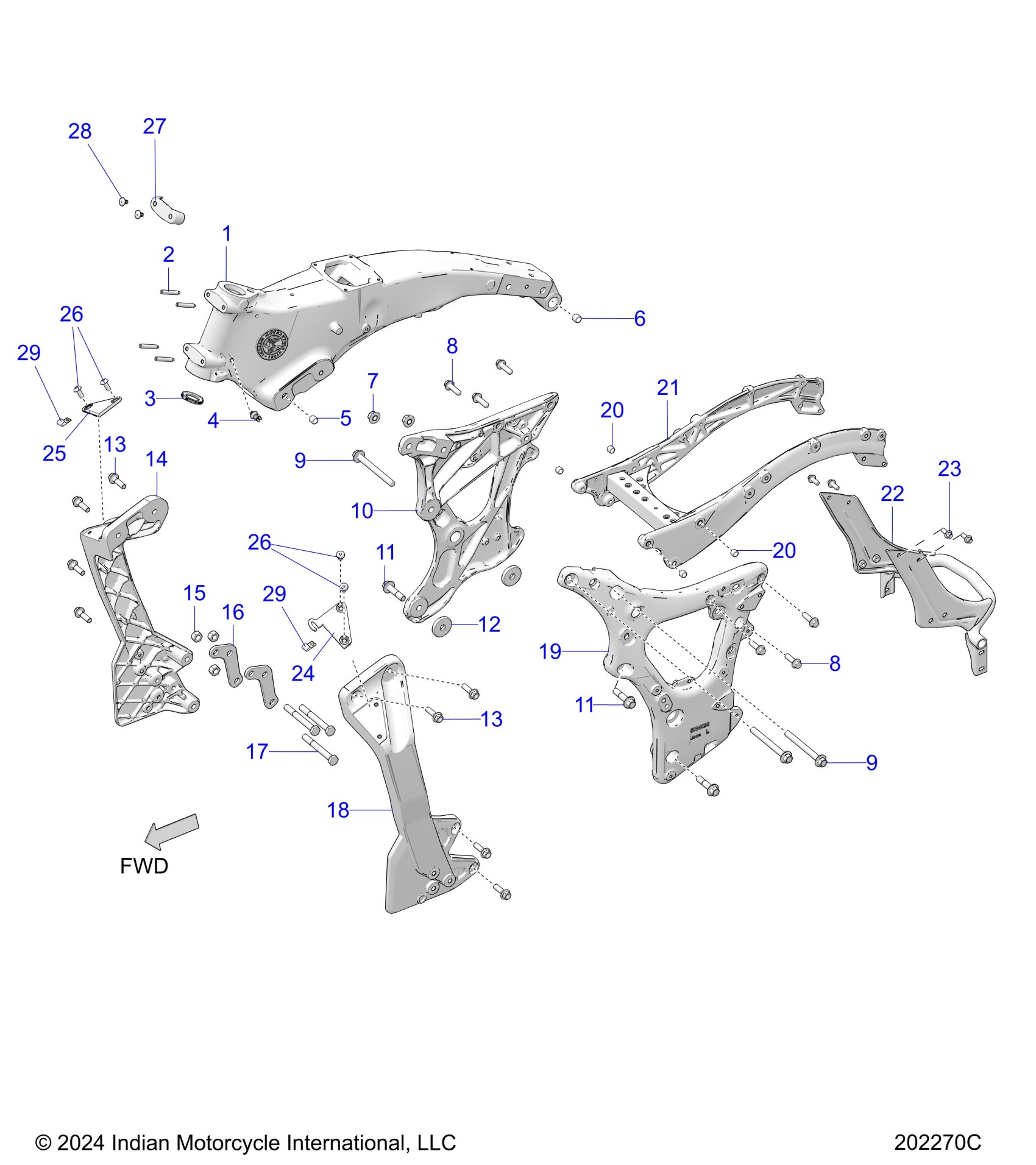

Polaris CHIEFTAIN POWERPLUS LIMITED 108 ALL OPTIONS (R01) - N25LFLRRA/B/C/E/J CHASSIS, FRAME ASM. - N25LFLRR ALL OPTIONS (202270C) Diagram

#

Description
Price

1

MAINFRAME-FRONT,MACH,BLK

5144393-626

$1,324.99

2

STUD-M8X1.25X45 8.8 ZPC

5142297

$4.76

3

SEAL-STEERING HEAD-NBR

5418273

$4.76

4

CLIP-ROUTING,8

5454313

$3.17

5

DWL-HOLLOW,M14X12MM

7662265

$4.76

6

DOWEL-HOLLOW, M12

7662129

$10.32

7

NUT-HXFL-M12X1.75,CL10,ZB

7547686

$4.76

8

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

8

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

9

SCREW-HXFL-M12X1.75X120

7519794

$28.49

9

SCREW-HXFL-M12X1.75X120

7519794

$28.49

10

CAST-FRAME,MID,RH,WBLK

5143588-521

$369.99

11

SCR-HXFL-M12X1.75X50 10.9 ZFB

7521334-50

$6.35

11

SCR-HXFL-M12X1.75X50 10.9 ZFB

7521334-50

$6.35

12

SPACER, FRAME

5138436

$6.35

13

SCREW-HXFL-M10X1.5X35,10.9 ZPB

7520719

$4.76

13

SCREW-HXFL-M10X1.5X35,10.9 ZPB

7520719

$4.76

14

DOWNCAST,FRONT,RH,BLK

5143843-626

$404.99

15

NUT-HEXHD,M12,DIN980V,0600100

7547232

$23.81

16

BRKT-FRONT HEAD,BLK ZINC

5263208-408

$11.32

17

SCREW-HH-M12X1.75X100 10.9 ZPC

7518125

$11.11

18

DOWNCAST,FRONT,LH,BLK

5143842-626

$404.99

19

CAST-FRAME,MID,LH,E-COAT [TO 7/17/25]

5143587-329

$839.99

19

CAST-FRAME,MID,LH,E-COAT [FROM 7/17/25]

5145683-329

$369.99

20

DWL-HOL,M13X10,0600089

7663008

$5.99

20

DWL-HOL,M13X10,0600089

7663008

$5.99

21

WELD-SUBFRAME,REAR

1024782

$904.99

22

FRAME,REAR,LOWER,E-COAT

1024636-329

$269.99

23

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

24

CAP,DOWNCAST,LH

5465744

$24.99

25

CAP,DOWNCAST,RH,BAGGER

5465970

$24.99

26

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7520972

$7.59

26

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7520972

$7.59

27

GUARD-EDGE,FRAME

5466542

$3.97

28

CLIP-PLASTIC DART, NYLON

7670088

$1.59

29

CLIP-J

7081928

$3.97

29

CLIP-J

7081928

$3.97
