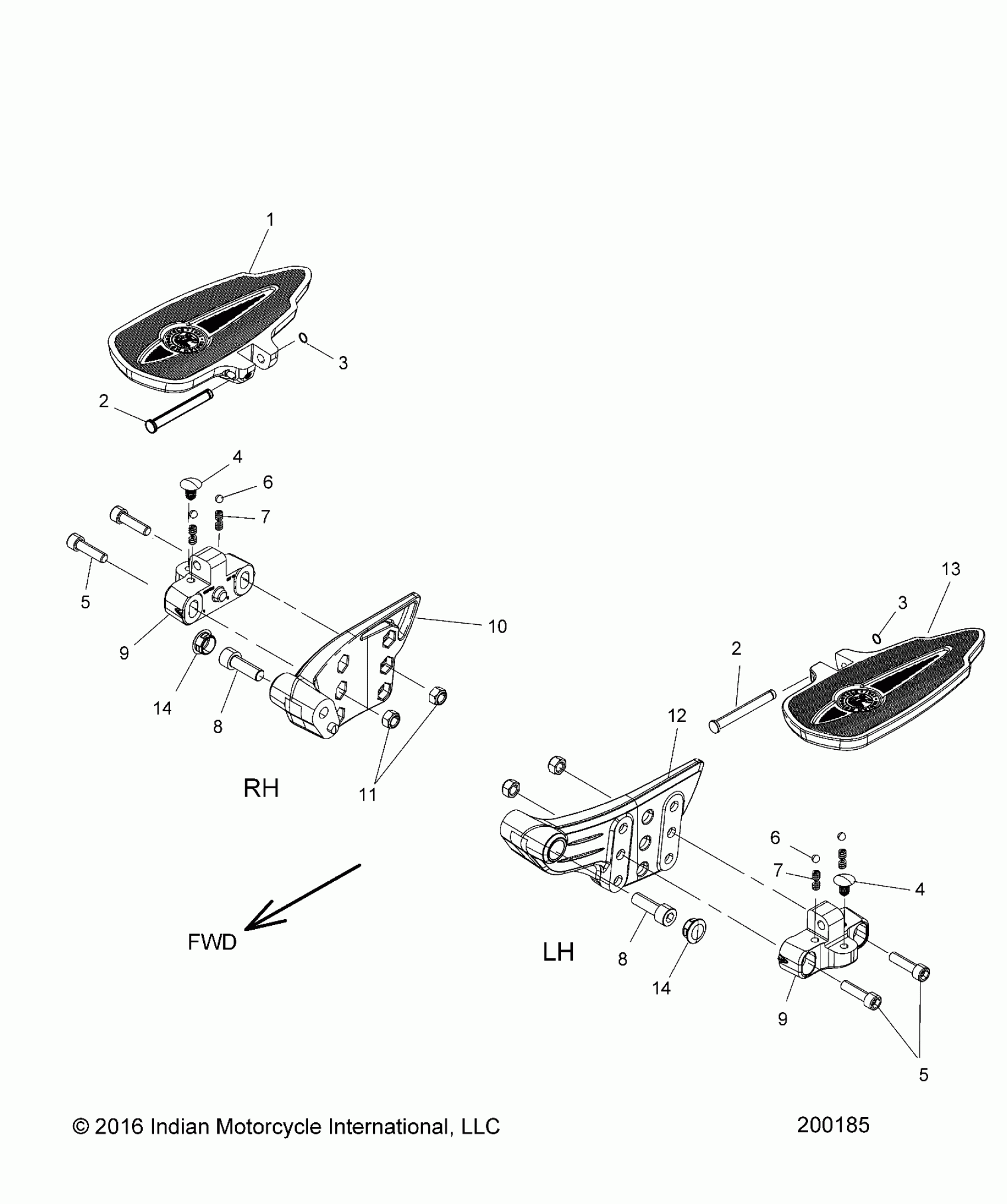

Polaris CHIEFTAIN LIMITED/ELITE ALL OPTIONS (R03) - N17TCE/TCN CHASSIS, FLOORBOARD, PASSENGER - N17TCE ALL OPTIONS (200185) Diagram

#

Description
Price

1

FLOORBOARD, PASS, NESS, RH, CHROME

5141384-156

$359.99

1

FLOORBOARD, PASS, NESS, RH, CHROME

5141384-156

$359.99

2

PIN, PIVOT

7661979

$10.32

2

PIN, PIVOT

7661979

$10.32

3

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

3

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

SCREW

7517361

$23.81

5

SCREW

7517361

$23.81

6

BALL, DETENT

5133944

$3.22

6

BALL, DETENT

5133944

$3.22

7

SPRING, COMPRESSION

7042255

$7.27

7

SPRING, COMPRESSION

7042255

$7.27

8

SCREW

7519844

$4.76

8

SCREW

7519844

$4.76

9

MOUNT, FLOORBOARD PIVOT, JT BLACK

5137789-626

$56.65

10

ASM., MOUNT, FLOORBOARD, PASS, RH, JT BLACK

1020122-626

$91.97

11

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

12

ASM., MOUNT, FLOORBOARD, PASS, LH, JT BLACK

1020121-626

$91.97

13

FLOORBOARD, PASS, NESS, LH, CHROME

5141385-156

$359.99

14

PLUG, FLOORBOARD MOUNT

5415328

$3.17

14

PLUG, FLOORBOARD MOUNT

5415328

$3.17
