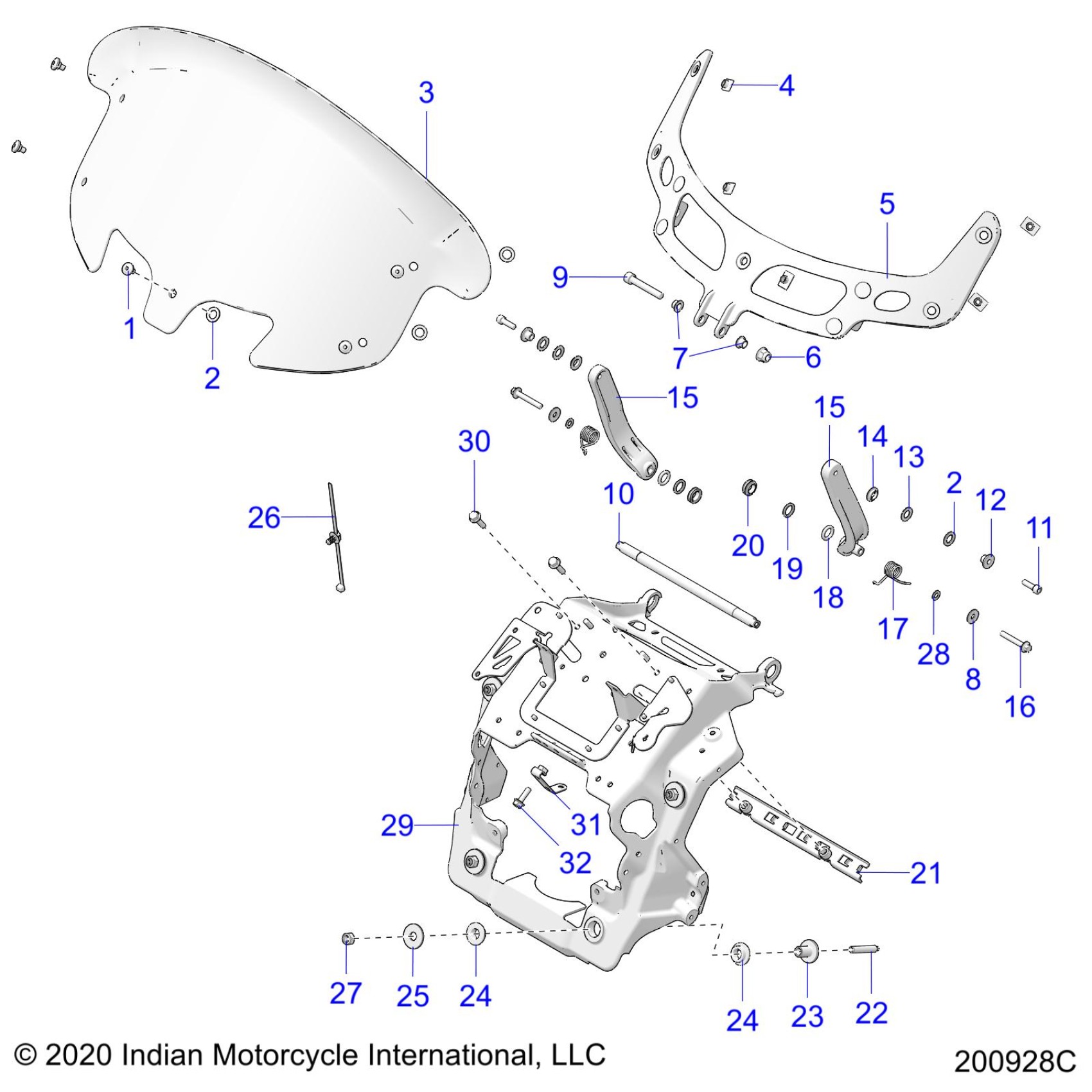

Polaris CHIEFTAIN ELITE (R05) - N20TCEBBA8/B8/C8/E8 BODY, FAIRING ASM, WINDSHIELD MOUNT - N20TCEBB ALL OPTIONS (200928C) Diagram

#

Description
Price

1

BOLT-SHD,M6X1.0,7MM,9MM,POL

7521021

Unavailable

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

3

K-WINDSHIELD,FLARE,TINT

2880222-02

$329.99

4

T-NUT

7547300

$1.59

5

SUPPORT, WINDSHIELD

5138467-626

Unavailable

6

NUT

7547454

$2.38

7

BRG-FLANGE,8X10X7MM

3514565

$6.35

8

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

9

SCREW

7518013

$6.35

10

ROD,PIVOT, WS

5138358

$48.40

11

SCREW

7517305

$5.22

12

BUSHING, FLANGE

5140871

$9.52

13

WASHER, THRUST

7556832

$7.14

14

FLANGE, BEARING

3514853

$6.35

15

LINK, WINDSHIELD, JTBLK

5138909-626

Unavailable

15

LINK, WINDSHIELD, JTBLK

5138909-626

Unavailable

16

Screw

7517610

$1.59

17

Spring, Windshield, LH

7043355

$5.56

17

Spring, Windshield, RH

7043356

$8.08

18

O-Ring

5411356

$2.41

19

WASHER

7556113

$4.76

20

Bearing, Spherical

3514566

$15.87

21

BRACKET,POWER SUPPLY,ECOAT

1024261-329

$84.99

22

STUD

5142297

$4.76

23

BUSHING, FLANGE

5136907

$9.52

24

ISOLATOR-FAIRING

5416052

$3.97

24

ISOLATOR-FAIRING

5416052

$3.97

25

WASHER

7556260

$10.32

26

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

27

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

28

WASHER

7556121

$1.19

29

ASM., FAIRING BRACKET,HPAUDIO,ECOAT

1025003-329

$279.99

30

SCREW-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.17

31

BRACKET,FAIRING HARNESS,ECOAT

5266316-329

$44.51

32

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76
