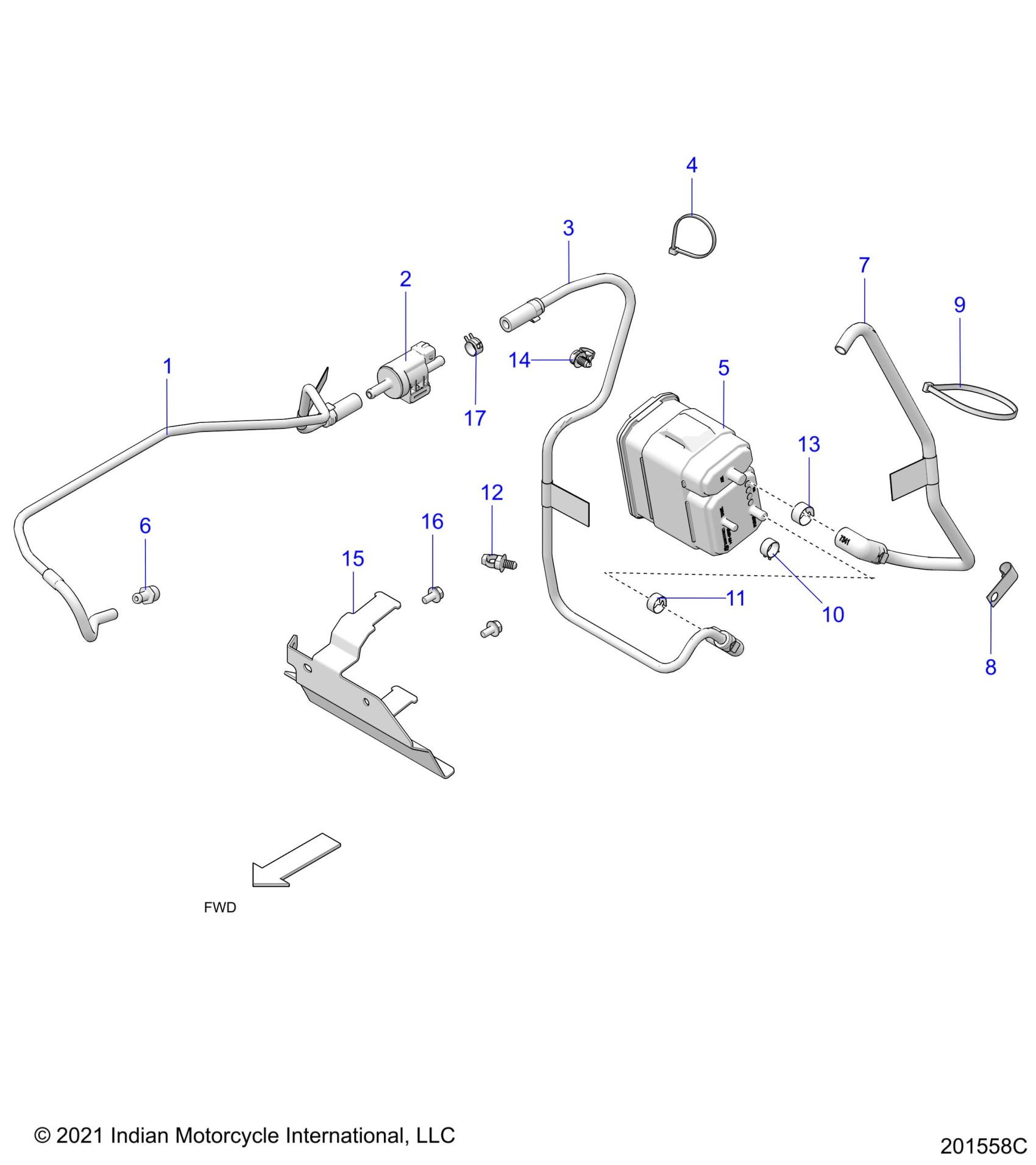

Polaris CHIEFTAIN ELITE (R01) - N22TCEBBA2/B2/C2/E2 FUEL SYSTEM, EVAP SYSTEM (CALIF. AND INTL) - N22TCEBBB (201558C) Diagram

Description

Price

LINE-FUEL,PURGE TO TB

5456268

Unavailable

VALVE-PURGE

2521758

$51.99

LINE-FUEL,CAN TO PURGE

5456267

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CANISTER-CARBON,EVAP

2522303

Unavailable

FITTING, EVAP LINE

5138799

Unavailable

TUBE-VENT,CAN

5456826

Unavailable

Clip, J

7080884

$3.99

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

HOSE CLAMP, RED

7080003

$1.49

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLAMP-HOSE,SPRING,.69"

7081533

$3.99

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.39

BRKT-CANISTER,E-COAT

5269288-329

Unavailable

SCREW-HXFLGHD,M6X12

7517886

$1.59

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99
