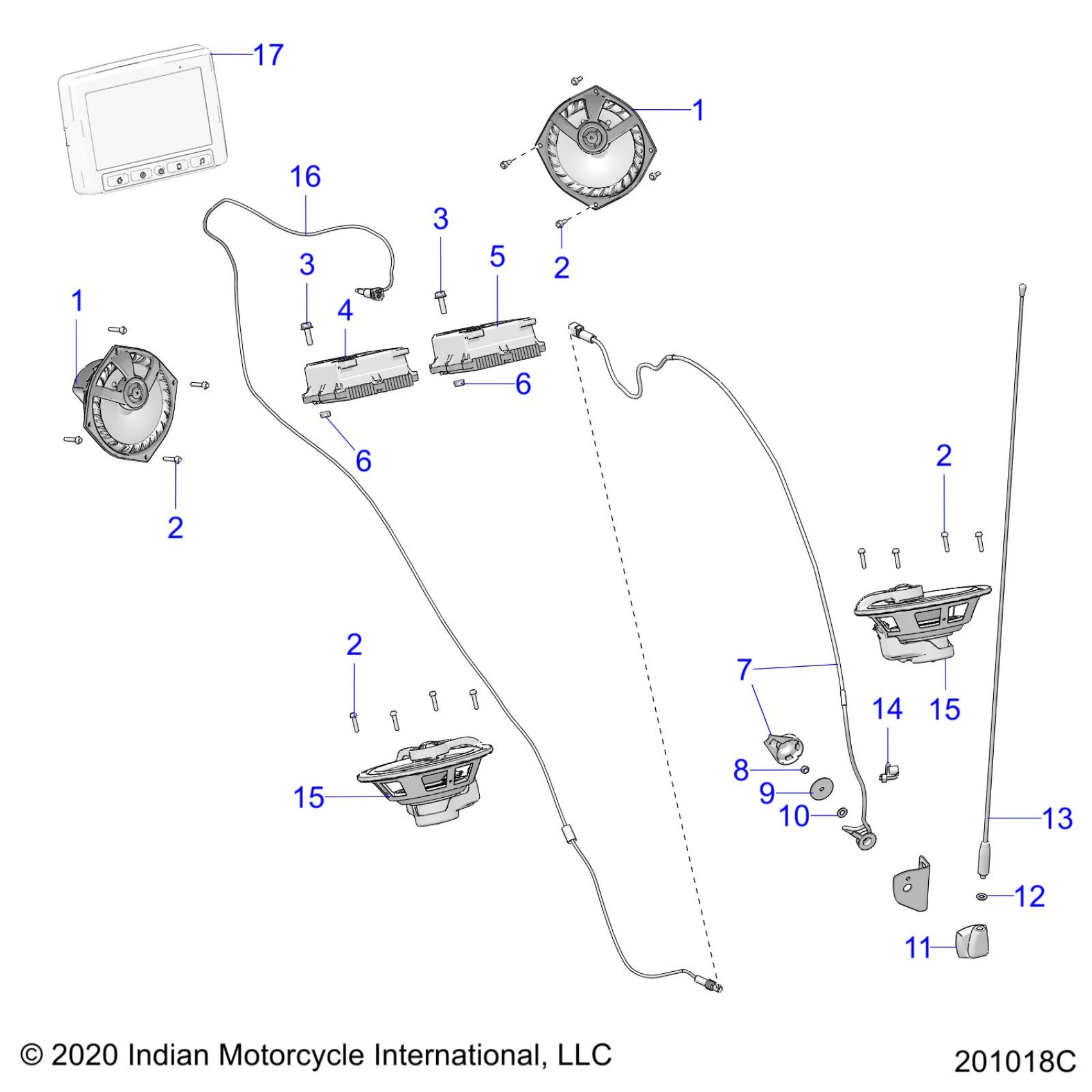

Polaris CHIEFTAIN ELITE (R01) - N22TCEBBA2/B2/C2/E2 ELECTRICAL, AUDIO SYSTEM - N22TCEBB ALL OPTIONS (201018C) Diagram

#

Description
Price

1

SPEAKER-5.25",100W,AMP

4017740

Unavailable

1

SPEAKER-5.25",100W,AMP

4017740

Unavailable

2

SCREW-SWPH-#8X25 MAGNI, BOSSCREW

7521015

Unavailable

2

SCREW-SWPH-#8X25 MAGNI, BOSSCREW

7521015

Unavailable

2

SCREW-SWPH-#8X25 MAGNI, BOSSCREW

7521015

Unavailable

2

SCREW-SWPH-#8X25 MAGNI, BOSSCREW

7521015

Unavailable

3

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

3

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

4

ASM-PWRSPLY,DSP,4CH,4VPP,V2

2416052

Unavailable

5

ASM-PWRSPLY,DSP,2CH,4VPP,V2

2416051

Unavailable

6

NUT-HXFLGHD,M6,0600087

7710495

$4.79

6

NUT-HXFLGHD,M6,0600087

7710495

$4.79

7

HARNESS, AM/FM ANTENNA

2414780

Unavailable

8

NUT-M5X0.8,NYLOK-SS

7547059

$4.79

9

WASHER-5.3X30X1.5 FLAT

7556544

$4.79

10

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.49

11

MOUNT, ANTENNA, 90 DEGREE, ADJ.

4012274

Unavailable

12

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

13

ANTENNA, MAST, 33 INCH (INCL. RUBBER TIP)

4012213

Unavailable

14

CLIP-M5,STUD MOUNT TIE,146MM

7081909

Unavailable

15

SPEAKER-6.5",100W,AMP

4017741

Unavailable

15

SPEAKER-6.5",100W,AMP

4017741

Unavailable

16

HARNESS, AM/FM ANTENNA EXT

2414836

Unavailable

17

ASM., DISPLAY, 7" (SEE "ELECTRICAL, INSTRUMENT CLUSTER")

-------

Unavailable
